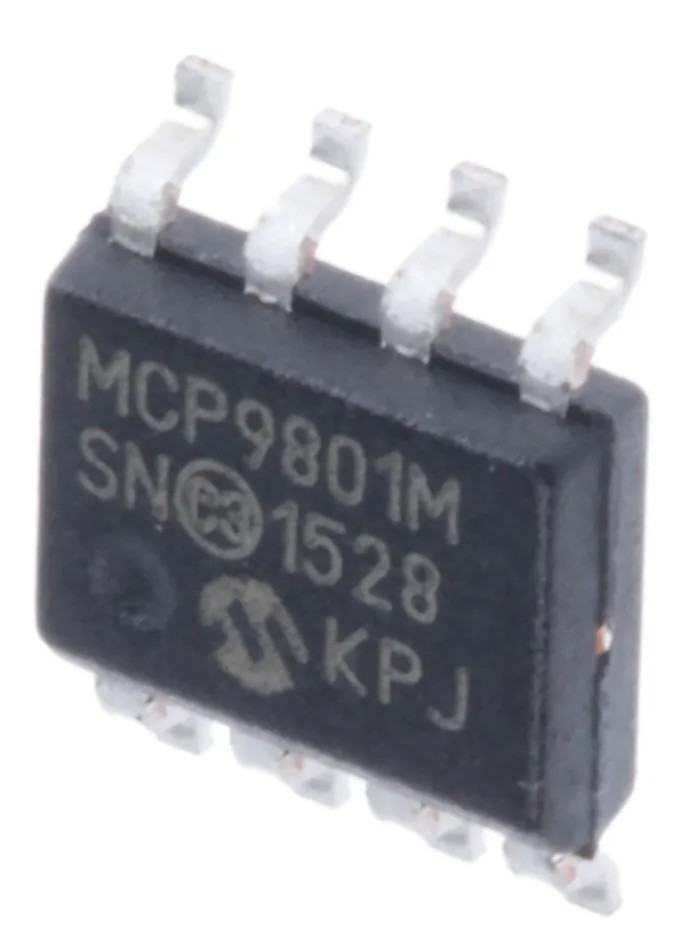

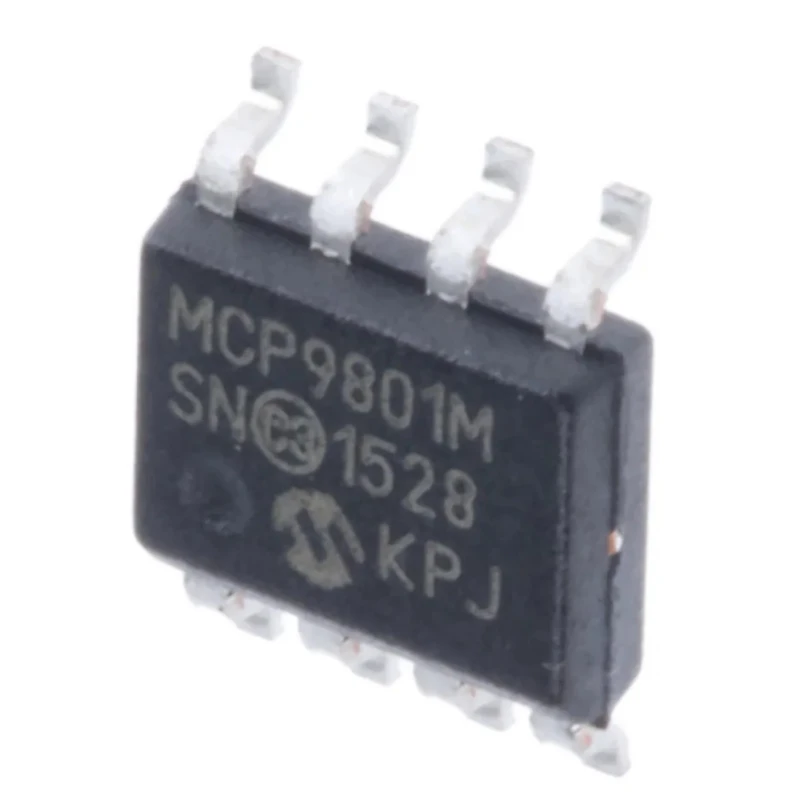

Microchip High Accuracy Digital Output Temperature Converter MCP9801 Surface Mount SMBus Serial-I2C ±0.5°C 8-Pin SOIC MCP9801
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5°C |
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP9801 |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | MCP9801 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | SMBus, Serial-I2C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- High accuracy temperature conversion with ±0.5°C precision.
- Operates over a wide temperature range from -55°C to 125°C.
- Utilizes SMBus and Serial-I2C interface for easy integration.
- Compact 8-pin SOIC surface mount package for efficient PCB design.
- Supply voltage range from 2.7V to 5.5V supports versatile power applications.
- Suitable for applications including PCs, servers, mobile phones, and data communication equipment.
- Designed for reliable temperature monitoring in industrial and consumer electronics.
Product Description
Microchip MCP9801 is a high accuracy digital output temperature converter designed for precise temperature monitoring with an accuracy of ±0.5°C. It converts temperature data from -55°C up to 125°C into a digital signal using SMBus and Serial-I2C communication protocols, making it ideal for integration with various microcontroller systems.
The device comes in a compact 8-pin SOIC surface mount package measuring 4.9mm in length, 3.9mm in width, and 1.25mm in height, ensuring minimal footprint on printed circuit boards. Its power supply range between 2.7V and 5.5V allows flexible deployment across multiple electronic platforms.
The MCP9801 temperature converter is widely used in applications such as personal computers, servers, hard disk drives, mobile phones, office equipment, data communication devices, and entertainment systems. This temperature sensor IC provides reliable and accurate temperature sensing critical for system performance and safety.
Designed without specific automotive certification, the MCP9801 is tailored for standard electronic and industrial applications requiring digital temperature sensing with robust precision and ease of use.
High accuracy ±0.5°C temperature reading. Wide operating temperature range from -55°C to 125°C. Supports SMBus and Serial-I2C interfaces for communication. Compact 8-pin SOIC surface mount package. Operates at supply voltages from 2.7V to 5.5V.
Ideal for computing, communication, and consumer electronics. Small size for space-constrained designs. Ensures reliable temperature monitoring for industrial and commercial use. Explore Microchip Temperature Sensors and converters for advanced electronic applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9801 operates over a wide temperature range from -55°C to 125°C.
This model provides a high accuracy temperature reading with a precision of ±0.5°C.
It provides a digital output, making it suitable for digital systems.
This temperature sensor supports SMBus and Serial-I2C interfaces for communication.
The MCP9801 has a compact size with dimensions of 4.9mm in length, 3.9mm in width, and 1.25mm in height.
It operates within a supply voltage range of 2.7V to 5.5V.
The MCP9801 comes in a compact 8-pin SOIC surface mount package.
The MCP9801 features an 8-pin configuration.
The country of origin for the MCP9801 is India.
The maximum operating temperature for this model is 125°C.
The minimum operating temperature for this temperature converter is -55°C.
