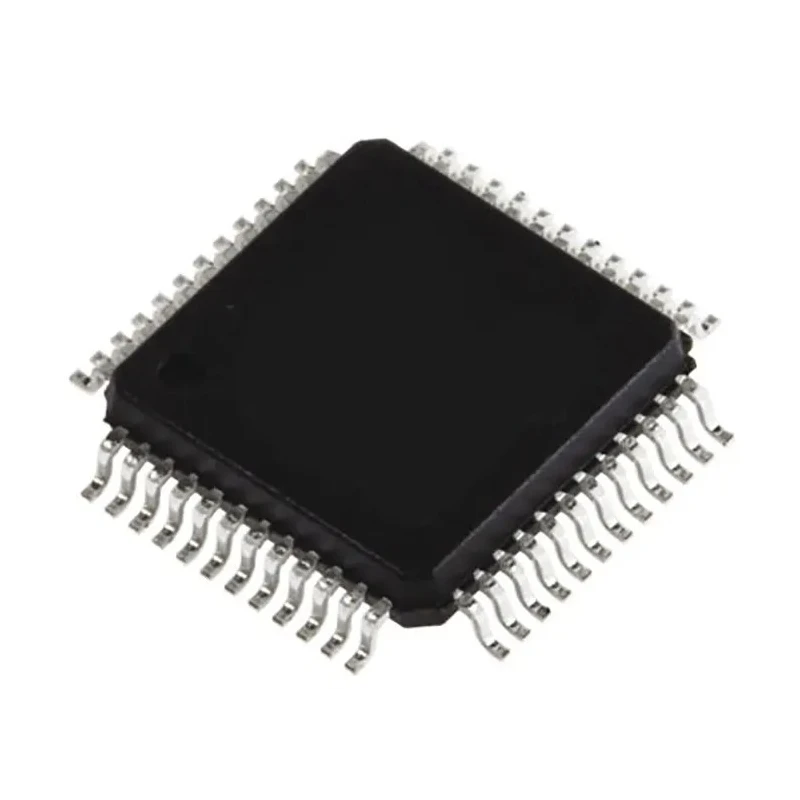

STMicroelectronics STM32F072C8T7 32-bit ARM Cortex M0 Microcontroller 48 MHz 64kB FLASH 48-Pin LQFP

STMicroelectronics STM32F072C8T7 is a 32-bit ARM Cortex M0 microcontroller operating at a clock speed of 48 MHz. It features 64kB of FLASH memory and 16kB of RAM, packaged in a 48-pin LQFP surface mount device, designed for embedded system applications.

This microcontroller incorporates a high-performance ARM Cortex-M0 32-bit RISC core and offers a comprehensive set of peripherals. It supports two I2C interfaces, two SPI/I2S interfaces, one HDMI CEC, and four USART interfaces, enabling diverse communication capabilities. Additionally, it includes a USB Full-speed device controller with crystal-less operation, one CAN interface, and an extensive analog feature set.

The device features a 12-bit DAC with two output channels, 13 12-bit ADCs for advanced analog signal measurement, two analogue comparators, and multiple timers including four 16-bit timers, one 32-bit timer, and an advanced control PWM timer. This versatility supports control and timing functions in various industrial and commercial embedded applications.

Operating temperature ranges from -40°C to +105°C and the device supports a supply voltage range from 2V minimum to 3.6V maximum, making it suitable for harsh environments and wide temperature industrial applications.

Its compact LQFP package (7.2mm x 7.2mm footprint with 1.45mm height) supports modern PCB assembly standards. The 370mW maximum power dissipation allows efficient power management in embedded designs.

Typical use cases for the STM32F072C8T7 microcontroller include application control and user interfaces, handheld equipment, A/V receivers, digital TV, PC peripherals, gaming and GPS devices, industrial equipment such as PLCs and inverters, printers, scanners, alarm systems, video intercoms, and HVAC systems.

Operates at 48 MHz maximum clock frequency. 64kB FLASH memory and 16kB RAM for application storage and execution. Rich set of communication interfaces including I2C, SPI, USB, CAN, and USART. Analog signal processing via 12-bit DACs and multiple ADCs.

Wide operating temperature range for industrial reliability. 48-pin LQFP surface mount package for compact PCB design. Low power consumption with 370mW maximum power dissipation. Multiple timers and PWM support for complex control logic.

Flash memory type ensures durability and update flexibility. Manufactured in China with high quality standards. Discover more Microcontrollers and embedded solutions at EnvMart for your next industrial or commercial electronics project.
