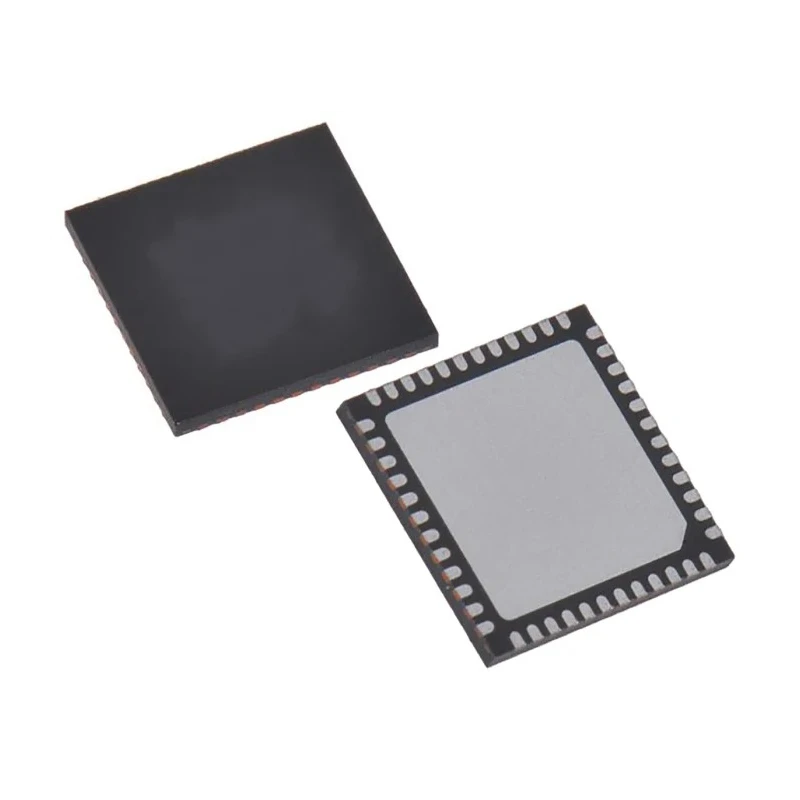

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller 48 MHz 128kB FLASH 48-Pin UFQFPN STM32F071CBU6

STMicroelectronics STM32F071CBU6 is a high-performance 32-bit ARM Cortex M0 microcontroller designed for industrial, consumer, and commercial applications.

This microcontroller operates at a clock frequency of 48 MHz, providing efficient processing speed and enhanced embedded features. It combines 128 kB of Flash memory and 16 kB of SRAM, offering a substantial memory footprint for complex applications.

Packaged in a compact 48-Pin UFQFPN surface-mount package with dimensions 7.1 mm by 7.1 mm and a height of 550 μm, it is suitable for space-constrained PCB layouts. The device operates within supply voltages ranging from 2 V to 3.6 V, ensuring broad compatibility and energy efficiency.

The STM32F071CBU6 incorporates a wide range of peripherals including multiple timers (four 16-bit and one 32-bit timer), communication interfaces (two I2C, two SPI/one I2S, HDMI CEC, and four USARTs), thirteen 12-bit ADC channels, one 12-bit DAC with two output channels, and two analogue comparators, enabling high levels of integration and flexibility.

With a maximum power dissipation of 625 mW and operating temperature from -40°C to 85°C, it is well-suited for demanding industrial environments. High-performance ARM Cortex M0 core at 48 MHz. 128 kB Flash memory plus 16 kB SRAM.

Extensive peripheral set including communication interfaces and timers. Integrated DAC, ADC, and analogue comparators for mixed-signal applications. Compact and low-profile 48-pin UFQFPN surface-mount package. Wide operating temperature and voltage range for industrial reliability.

Low power consumption with maximum power dissipation of 625 mW.

Applications include automation and control systems, industrial machinery, user interfaces, consumer electronics, and communication devices. This microcontroller is an ideal choice for designers requiring a compact, versatile, and robust MCU platform with ample memory and peripheral resources.

Explore the STM32F0 series Microcontrollers on EnvMart for reliable and efficient semiconductor solutions optimized for modern embedded system designs.
