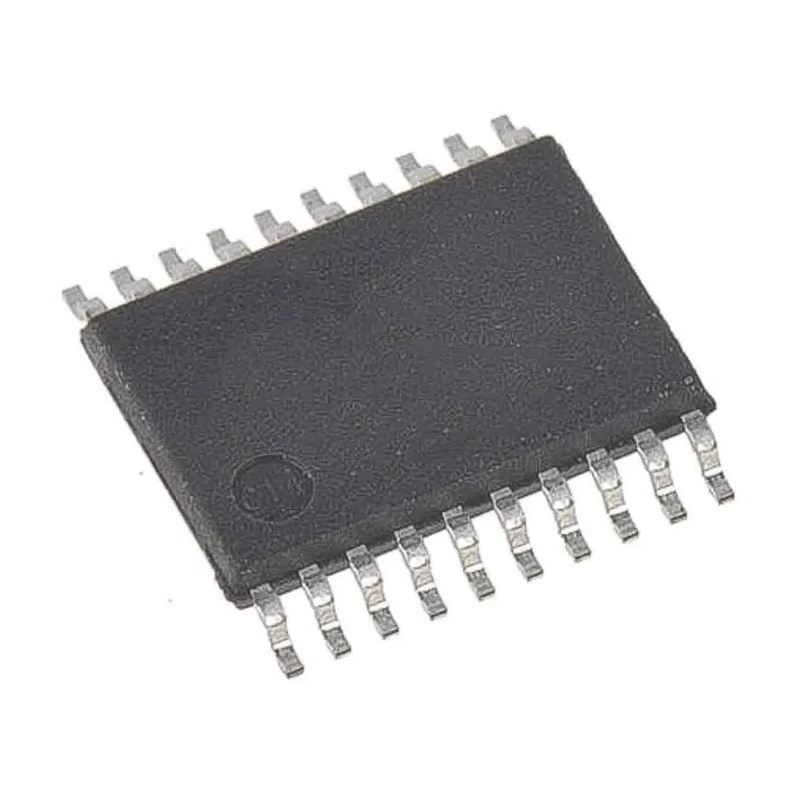

STMicroelectronics STM32F042F6P6TR 32 bit ARM Cortex M0 Microcontroller 48 MHz 32kB FLASH 20-Pin TSSOP
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | STM32F042F6P6TR |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | STM32F0 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 6kB |
| Standards/Approvals | FBI |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 263mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 48MHz |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Integrates ARM Cortex-M0 32-bit RISC core with 48 MHz max clock speed.
- Offers 32kB of high-speed Flash program memory and 6kB of SRAM.
- Includes multiple communication interfaces such as I2C, SPI, USART, USB Full-speed device, and CAN.
- Equipped with 12-bit ADC, four 16-bit timers, one 32-bit timer, and advanced PWM timer.
- Operates over a voltage range of 2.0 V to 3.6 V with low power consumption modes.
- Suitable for industrial, consumer, and automotive applications with operating temperature of -40°C to 85°C.
- Compact 20-pin TSSOP surface-mount package with dimensions 6.6 mm x 4.5 mm x 1.05 mm.
- Supports FLASH program memory type with 3 timers included on chip.
Product Description
The STMicroelectronics STM32F042F6P6TR microcontroller integrates a 32-bit ARM Cortex-M0 core operating at up to 48 MHz, making it ideal for cost-sensitive and energy-efficient embedded applications. It features 32kB of Flash memory and 6kB of SRAM for program and data storage respectively, providing flexible memory management.
This microcontroller includes a rich set of peripherals such as one I2C, two SPI/I2S interfaces, two USARTs, USB full-speed device support without crystal, CAN interface, a 12-bit ADC, multiple timers including four 16-bit and one 32-bit timer, and an advanced PWM timer. These features enable precise control and communication capabilities for a broad range of applications.
Designed for a supply voltage range from 2.0 V to 3.6 V, it supports low power modes conducive for battery-powered devices, while operating across temperatures from -40°C to 85°C, suitable for industrial environments.
The microcontroller is housed in a compact 20-pin TSSOP surface-mount package, measuring 6.6 mm in length, 4.5 mm in width, and 1.05 mm in height, optimizing PCB space.
This device is widely used in various sectors including consumer electronics, automotive systems, industrial controls, embedded user interfaces, gaming, medical devices, and HVAC systems. Its mix of performance, peripheral integration, and power efficiency make it ideal for these applications.
Features ARM Cortex-M0 32-bit RISC core running at 48 MHz. Includes 32kB Flash program memory and 6kB SRAM. Multiple communication interfaces: I2C, SPI/I2S, USART, USB FS, CAN. 12-bit ADC and multiple timers supporting PWM control.
Operates from 2.0 V up to 3.6 V supply voltage range. Wide operating temperature from -40°C to 85°C. Compact 20-pin TSSOP package for surface mount applications. Low power consumption with various power-saving modes.
The STM32F042F6P6TR is manufactured in the Philippines and carries the STMicroelectronics legacy of high quality and reliability. Suitable for a wide range of industrial, commercial, and consumer embedded system applications.
Explore more STMicroelectronics Microcontrollers and related products on EnvMart to find the perfect fit for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F042F6P6TR microcontroller operates at a maximum clock frequency of 48 MHz.
It features a program memory size of 32kB, allowing for flexible memory management.
This microcontroller includes multiple communication interfaces such as I2C, two SPI/I2S, two USARTs, USB full-speed device support, and CAN interface.
It operates over a supply voltage range of 2.0 V to 3.6 V.
The package dimensions are 6.6 mm in length, 4.5 mm in width, and 1.05 mm in height.
It can operate within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This model includes 6kB of SRAM for data storage.
It includes three timers: four 16-bit timers and one 32-bit timer, along with an advanced PWM timer.
It features a 12-bit ADC with multiple channels for analog input.
The maximum power dissipation for this microcontroller is 263 mW.
It uses a RISC instruction set architecture, specifically the ARM Cortex-M0.
This microcontroller is manufactured in the Philippines.
