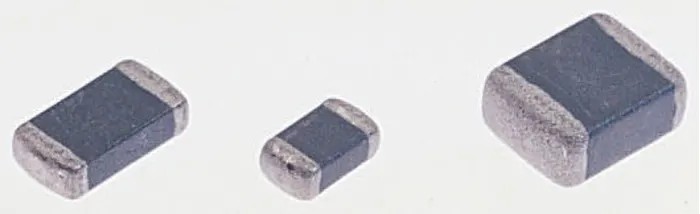

KYOCERA AVX VC Varistor Surface Mount Ceramic 1 A Clamping Voltage 22 V VC080509A200DP
Specifications
| Country of Origin | India |
|---|---|
| Brand | KYOCERA AVX |
| Material | Ceramic |
| Height | 1.02mm |
| Length | 2.01mm |
| Model | VC080509A200DP |
| Depth | 1.25mm |
| Mount Type | Surface |
| Series | VC |
| Energy Rating | 0.1J |
| Maximum Operating Temperature | 125°C |
| Maximum dc Voltage | 9V dc |
| Maximum AC Voltage | 6.4V ac |
| Clamping Voltage VC | 22V |
| Clamping Current | 1A |
| Maximum Surge Current | 40A |
Key Features
- Surface mount type suitable for SMT applications.
- Constructed from multilayer ZnO ceramic material for reliable surge protection.
- Maximum AC voltage rating of 6.4 V AC and DC voltage rating of 9 V DC.
- Capable of handling maximum surge current up to 40 A.
- Compact dimensions measuring 2.01 mm length, 1.02 mm height, and 1.25 mm depth.
- Rated for maximum operating temperature of 125°C.
- Energy absorption rating of 0.1 J.
- Copper clad steel with solder coated lead finish for excellent solderability.
Product Description
KYOCERA AVX VC080509A200DP VC Varistor is a high-quality surface mount transient voltage suppressor designed to protect electronic circuits from voltage spikes and surges.
This device features a multilayer ZnO ceramic suppressor within the TransGuard® series, ensuring stable and reliable clamping at 22 V with a 1 A clamping current capability, making it ideal for sensitive circuit protection.
The varistor exhibits maximum AC voltage of 6.4 V and DC voltage of 9 V, with an ability to withstand surge currents up to 40 A and energy ratings of 0.1 joules, which is suitable for protecting low voltage electronic components in consumer, industrial, and telecommunications equipment.
With compact dimensions of 2.01 mm length, 1.02 mm height, and 1.25 mm depth, it supports space-saving PCB layouts and offers efficient surface mount technology (SMT) assembly, combined with copper clad steel and solder coated leads to assure good mechanical strength and excellent solderability.
The maximum operating temperature of 125°C allows this varistor to function safely in environments with elevated temperatures, lending durability and stable performance in harsh industrial and commercial applications.
Applications include power supplies, industrial controls, communication devices, and consumer electronics where transient voltage suppression is critical to protect the integrity and longevity of circuit components.
Surface mount type suitable for SMT applications. Constructed from multilayer ZnO ceramic material for reliable surge protection. Maximum AC voltage rating of 6.4 V AC and DC voltage rating of 9 V DC. Capable of handling maximum surge current up to 40 A.
Compact dimensions measuring 2.01 mm length, 1.02 mm height, and 1.25 mm depth. Rated for maximum operating temperature of 125°C. Energy absorption rating of 0.1 J. Copper clad steel with solder coated lead finish for excellent solderability.
Designed as a TransGuard® SMT transient suppressor series VC for enhanced reliability. Suitable for various electronics, power, and industrial applications requiring surge protection. Explore more Varistors and surge protection components on EnvMart to find the ideal solutions for your electronic circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 22 V.
It can handle a maximum surge current of 40 A.
The dimensions are 2.01 mm in length, 1.02 mm in height, and 1.25 mm in depth.
The maximum operating temperature is rated at 125°C.
The energy absorption rating is 0.1 J.
The maximum AC voltage rating is 6.4 V AC and the maximum DC voltage rating is 9 V DC.
It is constructed from multilayer ZnO ceramic material.
This model supports surface mount technology (SMT) applications.
It belongs to the TransGuard® series of varistors.
It is suitable for applications in power supplies, industrial controls, communication devices, and consumer electronics requiring transient voltage suppression.
The varistor features a copper clad steel with solder coated lead finish for excellent solderability.
The clamping current rating of 1 A indicates the maximum current the varistor can handle while clamping the voltage to its specified level.
