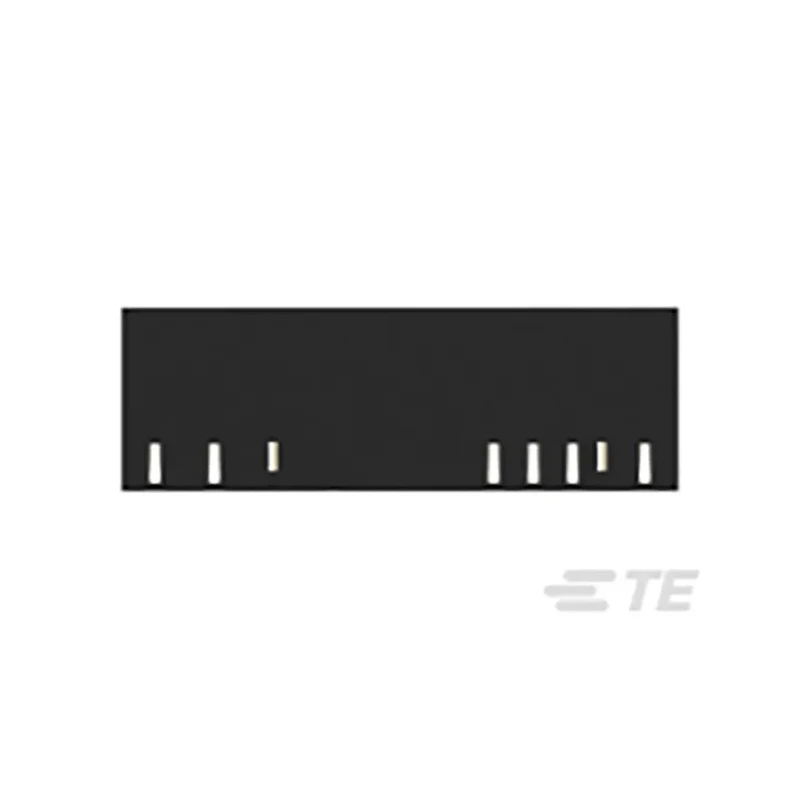

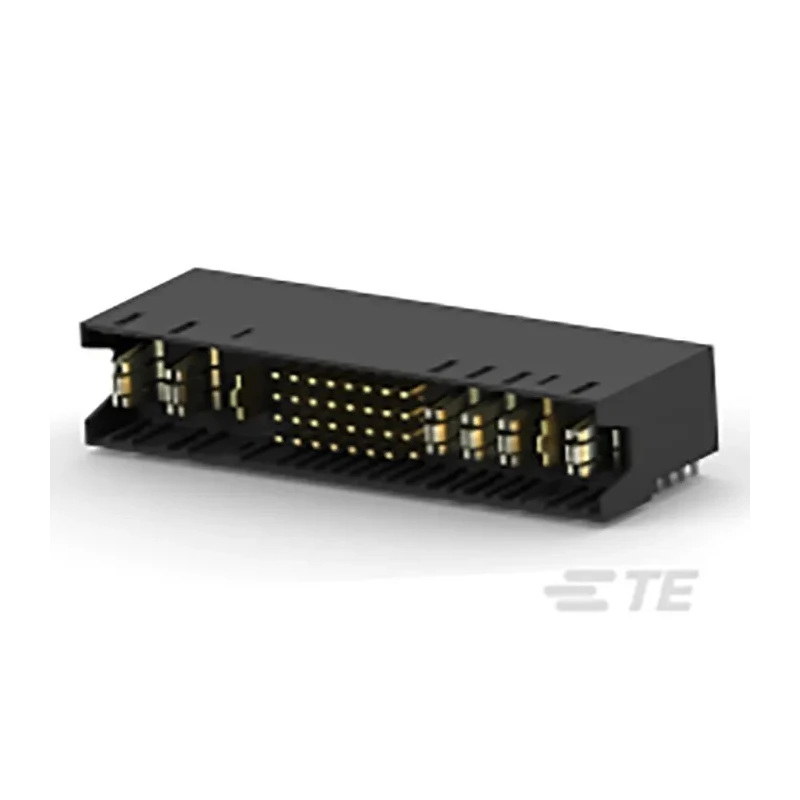

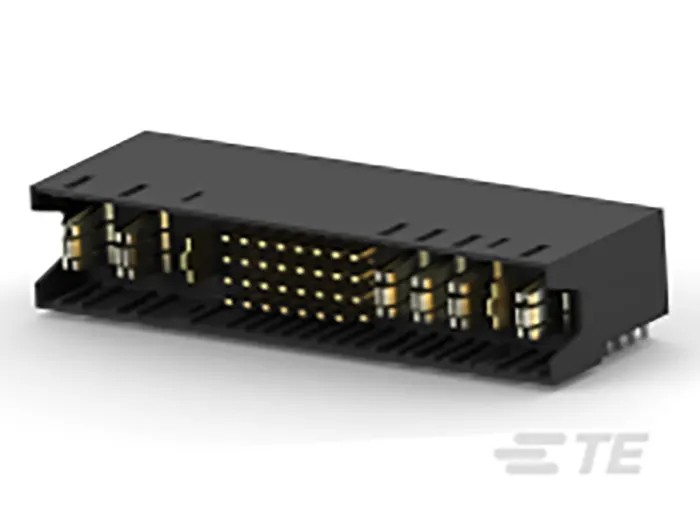

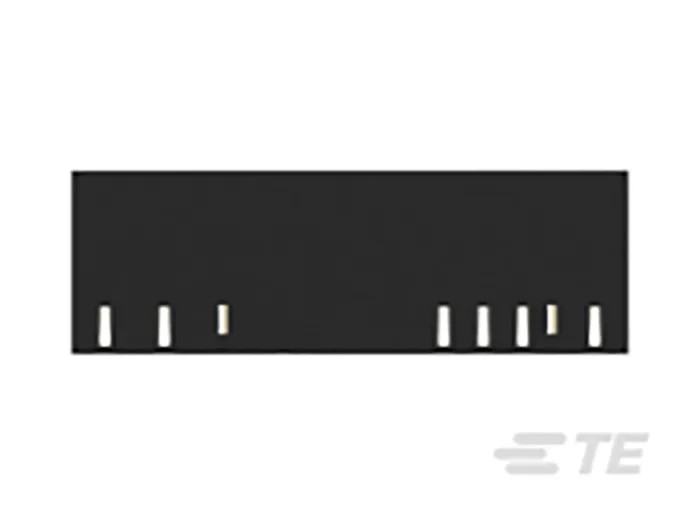

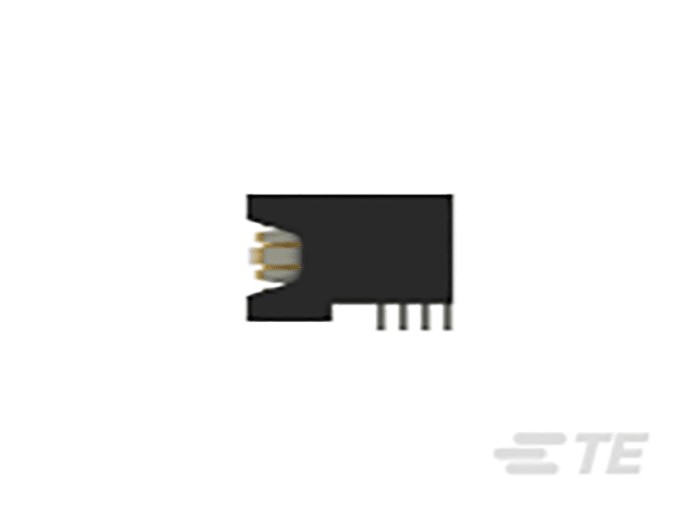

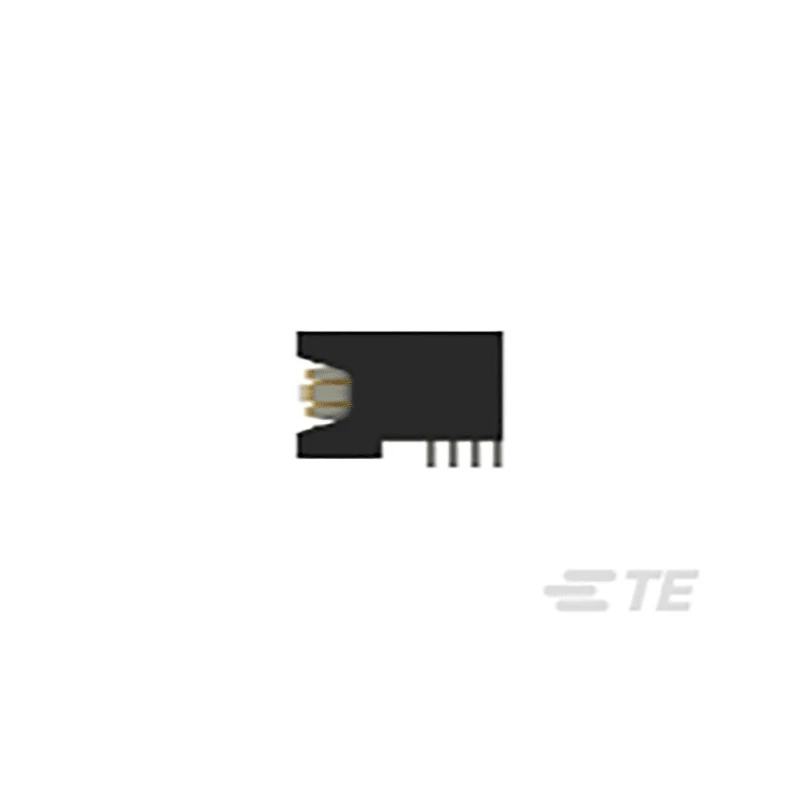

TE Connectivity Multi-Beam XLE Series Right Angle PCB Header 40 Contact 5.08 mm Pitch 4 Row Shrouded 6450849-7

TE Connectivity 6450849-7 Multi-Beam XLE Series Right Angle PCB Header is engineered for high current power applications requiring compact and reliable board-to-board connections. Featuring 40 male contacts arranged in 4 rows with a 5.08 mm pitch, this shrouded header utilizes thermoplastic housing that facilitates airflow to aid heat dissipation.

This PCB header supports a current rating of 50 A per contact, with new 6 beam power contacts capable of up to 75 A, delivering an impressive linear current density exceeding 200 Amps per inch. The design includes low power contacts occupying half the PCB space compared to traditional MULTI-BEAM XL contacts, improving PCB real estate efficiency.

Its right angle orientation and press fit termination type ensure ease of assembly and mechanical stability. Tin-plated copper alloy contacts provide durable and reliable electrical connections, suitable for high end computers, servers, data storage, telecommunications switches, and uninterruptible power supply equipment.

The operating temperature range from -40°C to 105°C guarantees performance under demanding industrial and commercial environments. This connector system is ideal for power distribution, board stacking, and removable battery pack applications.

The header features 40 male contacts arranged in 4 rows with a 5.08 mm pitch. Constructed with thermoplastic housing that is vented for improved heat dissipation. Supports up to 50 A current per contact, with 6 beam power contacts providing up to 75 A current rating.

Right angle orientation facilitates board-to-board connections with press fit termination. Shrouded design enhances durability and alignment in assemblies. Suitable for power supplies, servers, data storage, telecommunications, and UPS applications.

Operating temperature range spans from -40°C to 105°C for reliability under harsh conditions. Contact plating is tin over copper alloy material for robust electrical conductivity. Designed to comply with board stacking and high density power distribution requirements.

This TE Connectivity Multi-Beam XLE PCB Header is a critical component in industrial electronics, telecommunications, data centers, and manufacturing setups. Its high current handling and compact footprint make it suitable for advanced power connector needs in laboratories, commercial electronics manufacturing, and server infrastructure.
