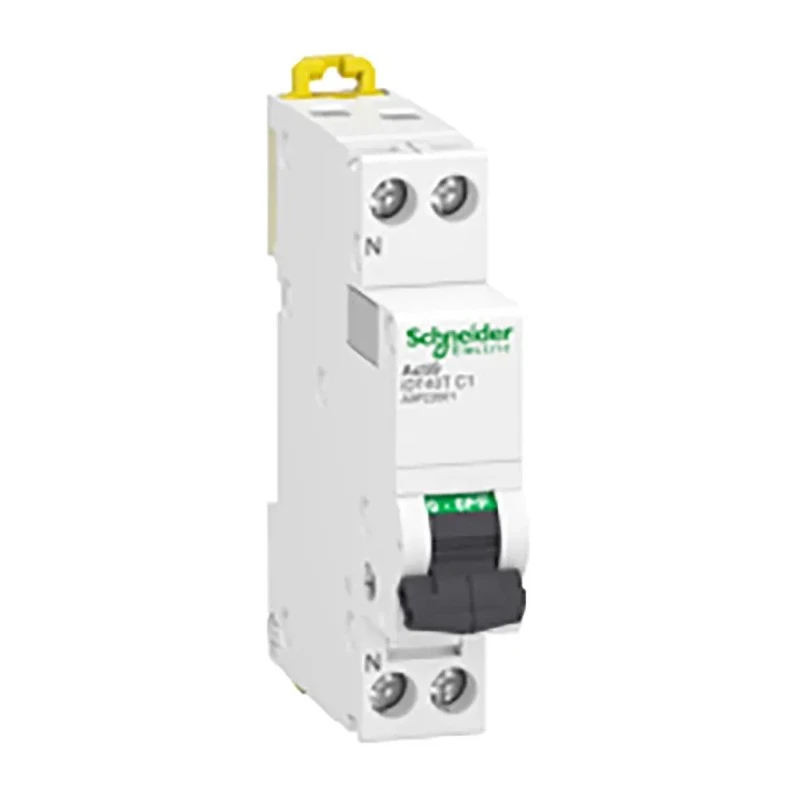

Schneider Electric Miniature Circuit Breaker 1-Pole 1A Type C 230V AC 6kA Breaking Capacity A9P22601
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9P22601 |
| Depth | 81mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | Acti9 iDT40T |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, EN IEC 60898-1, CE, EN IEC 60947-2, REACH |
| Rated AC Voltage | 230V |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Class-2 insulation | ensures continuous protection for both operators and unqualified persons |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Rated current of 1 ampere ensuring precise circuit protection.
- Thermal magnetic tripping mechanism offers reliable overload and short-circuit protection.
- 1-pole construction with curve C characteristic supports high inductive loads.
- Compact DIN rail mount with IP20 ingress protection rating.
- 230V AC operational voltage suitable for standard industrial and commercial use.
- 6 kA breaking capacity ensures safe interruption of fault currents.
- Toggle switch reset actuator with trip and contact position indicators for quick diagnostics.
- Compliance with EN IEC 60898-1 and EN IEC 60947-2 safety standards.
Product Description
Schneider Electric A9P22601 Miniature Circuit Breaker is a 1-pole device designed to provide efficient protection for electrical circuits against overloads and short circuits. Rated at 1 ampere and type C curve, it is optimized for industrial and commercial electrical installations where reliable circuit protection is crucial.
The breaker operates at 230V AC with a breaking capacity of 6 kA, conforming to international standards EN IEC 60898-1 and EN IEC 60947-2. Its thermal magnetic tripping mechanism enables fast and accurate fault interruption, while the toggle reset actuator with VisiTrip red trip indicator and contact position green indicator facilitates easy monitoring and maintenance.
With a compact design featuring dimensions 85mm (H) x 78mm (W) x 81mm (D), it mounts securely on standard DIN rails. The device features IP20 protection rating and insulated screw terminals to ensure safety during installation and operation. Its construction allows high tightening torque for robust and durable connections.
This miniature circuit breaker complies with RoHS and REACH directives, ensuring environmentally responsible manufacturing practices. Designed to withstand harsh industrial environments, it supports high inductive load switching and maintains safety even in polluted conditions.
Rated current: 1A. Tripping characteristic: Type C thermal magnetic. Rated operational voltage: 230V AC 50/60 Hz. Breaking capacity: 6 kA. Mounting type: DIN rail. IP rating: IP20 for safe operator protection. Mechanical and electrical durability: 20,000 cycles.
Toggle switch actuator with trip and contact indicators. Compact dimensions for space efficiency. Manufactured in France.
This Miniature Circuit Breaker is suitable for electrical distribution boards in industrial, commercial, and residential buildings. Its robust construction and high standards guarantee electrical safety, continuity of service, and compliance with relevant electrical regulations.
Browse our extensive selection of electrical protection devices at EnvMart for comprehensive electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this miniature circuit breaker is 1 ampere.
This model has a breaking capacity of 6 kA, ensuring safe interruption of fault currents.
It utilizes a thermal magnetic tripping mechanism for reliable overload and short-circuit protection.
The dimensions of this circuit breaker are 85mm in height, 78mm in width, and 81mm in depth.
The operational voltage for this circuit breaker is 230V AC.
It is designed for DIN rail mounting, providing a secure installation method.
This unit has an IP20 ingress protection rating.
It complies with RoHS, EN IEC 60898-1, CE, EN IEC 60947-2, and REACH standards.
This miniature circuit breaker has a Type C characteristic curve, which allows it to handle high inductive loads.
It features a toggle switch reset actuator with trip and contact position indicators for easy diagnostics.
The country of origin for this product is France.
This circuit breaker belongs to the Acti9 iDT40T series.
