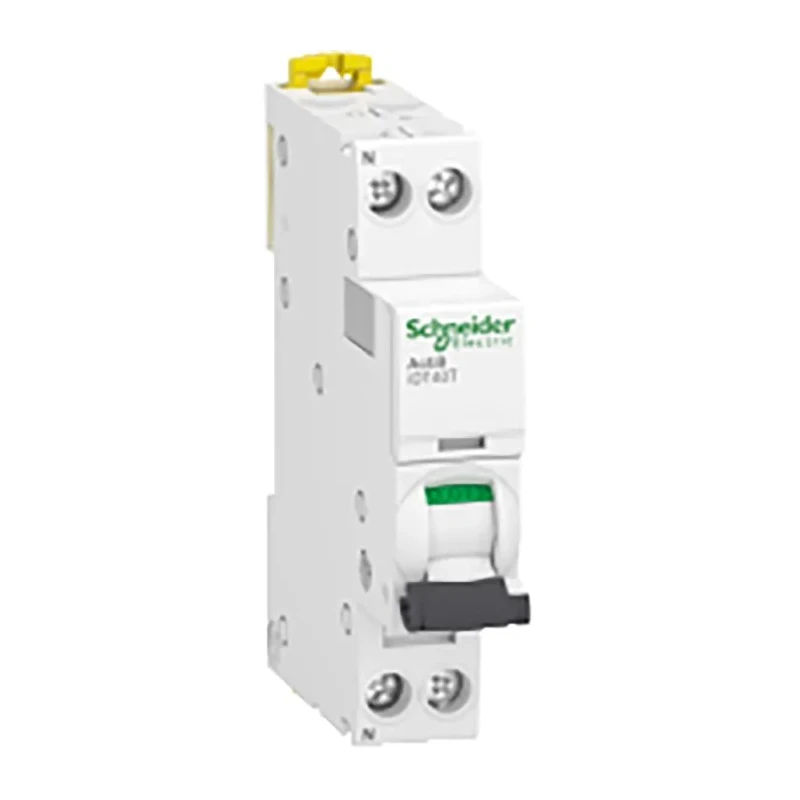

Schneider Electric Acti9 Acti9 iDT40T Miniature Circuit Breaker, 1-Pole, 20A, Type B, 230V AC, 6 kA Breaking A9P12620
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9P12620 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 74mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDT40T |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | EN IEC 60898-1, RoHS, CE, EN IEC 60947-2, REACH |
| Rated AC Voltage | 230V |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Class-2 insulation | ensures continuous protection for both operators and unqualified persons |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Compact 1-pole design ideal for space-saving installations.
- Thermal magnetic tripping mechanism offers protection against overloads and short circuits.
- Type B tripping characteristics suitable for residential and commercial applications.
- High breaking capacity of 6 kA ensures robust fault interruption.
- Durable screw terminal connections with IP20 rated insulated terminals.
- Mounts easily on standard DIN rails for convenient installation.
- Reset actuator toggle switch simplifies manual operation and resetting.
- Complies with EN IEC 60898-1, EN IEC 60947-2, RoHS, CE, and REACH standards.
Product Description
Schneider Electric A9P12620 Acti9 iDT40T Miniature Circuit Breaker, 1-Pole, 20A, Type B, rated at 230V AC with a breaking capacity of 6 kA, offers exceptional circuit protection suitable for electrical distribution in industrial, commercial, and residential environments.
This compact circuit breaker comes with a thermal magnetic tripping mechanism that safeguards against both overload and short circuit conditions while maintaining operator and system safety with class-2 insulation and insulated IP20 screw terminals.
The device mounts on a DIN rail, facilitating easy integration into existing panel boards and switchgear. Its toggle switch reset actuator allows for rapid manual resetting, complemented by the VisiTrip red fault indicator window, which enables fast fault detection and resolution, minimizing downtime.
Complies with important international standards including EN IEC 60898-1 and EN IEC 60947-2, ensuring compatibility and safety in diverse electrical installations. Its high breaking capacity (6 kA) provides reliable interruption capacity even in demanding, high inductive load circuits.
Additional features such as double clip dismounting while busbar is in place and enhanced terminal durability with twice the tightening torque ensure installation convenience and long service life. This MCB is especially suited for applications with high switching surges and polluted environments, providing continuous protection and service continuity.
Compact 1-pole miniature circuit breaker design. 20A current rating with Type B tripping curve for general use. Thermal magnetic tripping mechanism for short circuit and overload protection. Rated voltage of 230V AC with 6 kA breaking capacity.
DIN rail mount type for quick installation. IP20 rated insulated screw terminals. Toggle switch reset actuator for easy control. Compliant with EN IEC 60898-1, EN IEC 60947-2, RoHS, CE, and REACH standards. VisiTrip window to indicate trip status enhancing maintenance efficiency.
Manufactured in France with high quality assurance. Ideal for industrial, commercial, and residential electrical protection applications. Explore this Miniature Circuit Breaker within the broader Schneider Electric Acti9 series for advanced and reliable electrical protection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, providing reliable interruption capacity even in demanding circuits.
This unit has a current rating of 20A, suitable for various electrical protection applications.
It features Type B tripping characteristics, which are suitable for general residential and commercial applications.
The rated voltage for this model is 230V AC, making it compatible with standard electrical systems.
This miniature circuit breaker mounts on standard DIN rails, facilitating easy installation in panel boards and switchgear.
It utilizes a thermal magnetic tripping mechanism that protects against both overloads and short circuits.
The dimensions are 85mm in height, 85mm in depth, and 74mm in width.
The IP rating of this model is IP20, indicating it is suitable for indoor use with protection against solid objects larger than 12.5 mm.
It complies with EN IEC 60898-1, EN IEC 60947-2, RoHS, CE, and REACH standards, ensuring safety and compatibility in electrical installations.
This model features screw terminals, which provide durable connections for electrical wiring.
It includes a VisiTrip red fault indicator window that allows for quick fault detection and resolution.
This miniature circuit breaker is manufactured in France, ensuring high quality assurance standards.
