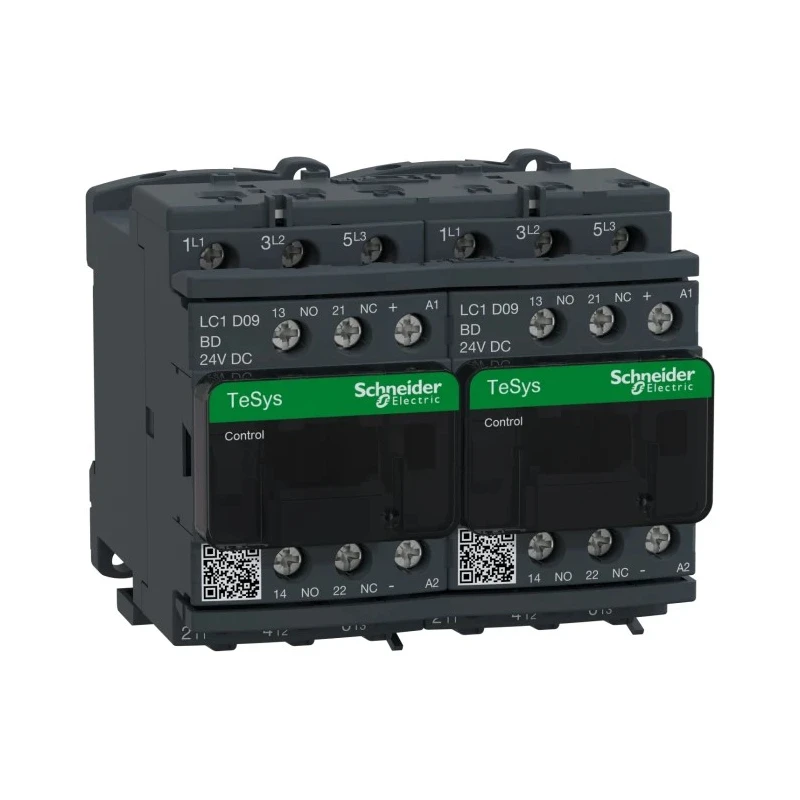

Schneider Electric TeSys D 24V dc Coil 3-Pole Motor Control Reversing Contactor 9A 5.5 kW LC2D09BDV
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 82.5mm |
| Model | LC2D09BDV |
| Depth | 95mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor features a 3 NO normal state configuration for efficient switching.
- Equipped with 2 auxiliary contacts configured as 2 NO/2 NC for enhanced control.
- Mounting options include DIN Rail and panel mounting with screws.
- Designed for use in industrial environments with a temperature range from -5°C to 60°C.
- Screw terminal connections are IP20 finger-safe, supporting North American and International terminal markings.
- Suitable for controlling resistive loads and motor reversing applications.
- Complies with international standards including UL, RoHS, CCC, CSA, EAC, and IEC.
- Constructed with durable materials and designed for ease of disassembly, supporting sustainability goals.
Product Description
Schneider Electric LC2D09BDV is a high-reliability TeSys D series reversing contactor designed for motor control and resistive load applications operating at 24V dc coil voltage. This 3-pole contactor supports 9A operational current with a 5.5 kW power rating and complies with international standards such as UL, RoHS, CCC, CSA, EAC, and IEC. It provides robust mechanical and electrical life with the advantage of quick and simple setup through pre-assembled reversing power busbar and built-in interlocks.
The contactor includes a normal state configuration of 3 NO contacts and 2 auxiliary contacts configured as 2 NO/2 NC, offering extended switching capability. It features IP20 finger-safe screw terminals with both North American and International terminal markings, assuring safe and versatile installation. Mounting is flexible with options for DIN rail or panel screw mounting. Operational temperature ranges from -5°C to 60°C, making it suitable for a variety of industrial environments including manufacturing plants, HVAC systems, water treatment, and agricultural automation.
The LC2D09BDV is ideal for controlling squirrel cage motors, lifts, conveyors, pumps, mixers, compressors, and air conditioning units with compliance to utilisation categories AC-1 and AC-3. The device’s design supports sustainable practices with features such as being designed for disassembly under Schneider Electric's Better World initiative.
This contactor is configured for advanced motor control and reversing functions. Compact and durable design to fit multiple industrial applications. Operates reliably under thermal extremes from -5°C to 60°C. Equipped with protective IP20 rated screw terminals.
Pre-assembled for easy installation and maintenance. Complies with a broad range of safety and environmental standards. Optimized for rapid switching and long operational life.
Set contains one Schneider Electric TeSys D LC2D09BDV reversing Contactor with 24V dc coil voltage and 3 poles. Discover Schneider Electric’s comprehensive range of motor control devices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 5.5 kW.
It supports an operational current of 9A.
The coil voltage for this contactor is 24V dc.
The dimensions are 82.5mm in length, 90mm in width, and 95mm in depth.
It can be mounted on DIN rail or panel mounted with screws.
It operates within a temperature range of -5°C to 60°C.
This contactor features a 3-pole configuration.
The normal state configuration includes 3 normally open (NO) contacts.
It includes 2 auxiliary contacts configured as 2 NO and 2 NC.
It complies with international standards including UL, RoHS, CCC, CSA, EAC, and IEC.
It is suitable for controlling resistive loads and motor applications, including squirrel cage motors, lifts, and conveyors.
It features IP20 finger-safe screw terminals with both North American and International terminal markings.
