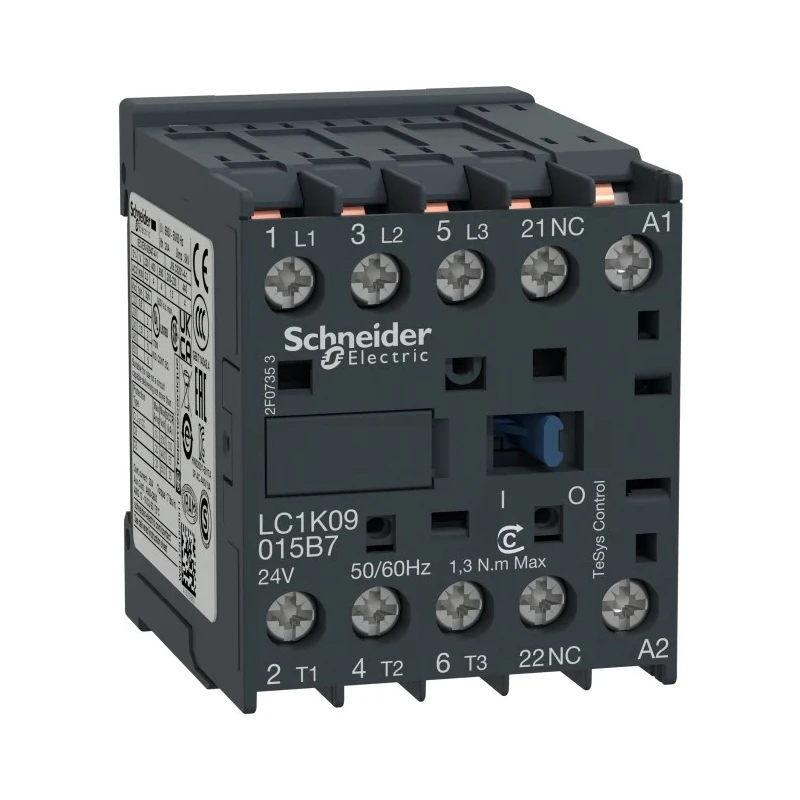

Schneider Electric TeSys K 3-Pole Contactor, 24V AC Coil Voltage, 9A, 4kW Power Rating, 3 NO, 690V AC LC1K09015B7

Schneider Electric LC1K09015B7 is a 3-Pole TeSys K series contactor engineered primarily for motor control and resistive load applications. It features a 24V AC coil voltage, enabling efficient and reliable operation in various industrial and commercial settings. The contactor supports a contact voltage of 690V AC and rated contact current of 9A, making it suitable for medium power electrical devices.

This device includes three normally open (NO) power contacts and one normally closed (NC) auxiliary contact, facilitating complex switching requirements. The contactor mounts conveniently on DIN rails, streamlining installation in control panels and electrical cabinets.

The product operates within a wide temperature range from -25°C to 50°C, ensuring versatility even in harsh environments. It employs screw terminal connections for durable and secure wiring. With dimensions of 58mm length, 45mm width, and 57mm depth, the contactor is compact and space-saving.

Manufactured in France under strict compliance with standards including CCC, CSA, EAC, IEC, RoHS, and UL, this Schneider Electric contactor exemplifies high-quality engineering and safety. It is part of the RS Better World initiative, emphasizing sustainable design with features like ease of disassembly for recycling.

Applications include motor controls, resistive load switches, and industrial electrical systems. This contactor is designed to handle the AC-1 utilisation category, suitable for resistive loads with a power factor of at least 0.95 such as heating and distribution, as well as the AC-3 category for squirrel cage motors during running breaking, relevant in lifts, conveyors, compressors, and pumps.

Coil voltage is 24V AC with a control circuit voltage of 24V AC. Rated contact voltage of 690V AC supports high voltage operations. Contact current rating is 9A, suitable for various industrial loads. Power rating of 4kW allows for demanding motor control tasks.

Features 3 normally open (NO) power contacts and 1 normally closed (NC) auxiliary contact. Mounts easily on DIN rail for efficient installation. Operational temperature range from -25°C to 50°C ensures reliable use in varied environments.

Terminal type is screw for secure and stable electrical connections. Dimensions: Length 58mm, Width 45mm, Depth 57mm for compact mounting. Designed with sustainability in mind and supports disassembly for recycling.

Choose Schneider Electric for industrial-grade performance, reliability, and adherence to international standards. Available for applications in manufacturing, automation, HVAC systems, water treatment plants, and other commercial sectors. Explore more products from the Contactor range at EnvMart for comprehensive electrical control solutions.
