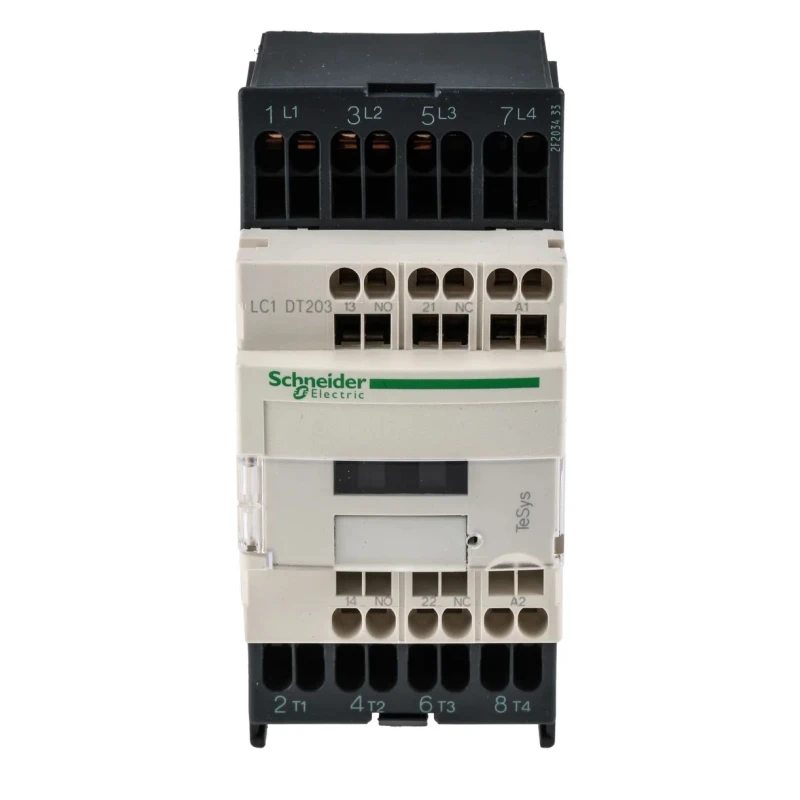

Schneider Electric TeSys D 24V ac Coil, 4-Pole, 20 A, 1.56W Motor Control Contactor LC1DT203B7

Schneider Electric LC1DT203B7 TeSys D 24V AC Coil 4-Pole Contactor is a high-performance device designed for motor control and general resistive load applications. It features a robust design that combines long mechanical and electrical life, making it suitable for demanding industrial automation systems.

This contactor offers a 4-pole configuration with four normally open (4 NO) contacts capable of handling 20 amps at a contact voltage of up to 690V AC. The coil operates efficiently at 24V AC with a low power consumption of 1.56 watts.

The device is DIN rail mountable and equipped with cage clamp terminals that provide IP20 finger-safe protection, along with markings compliant with North American and International standards. The contactor includes two auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC), providing flexibility for control circuit integration.

Designed for harsh industrial environments, the contactor withstands shock and vibration and operates reliably over a temperature range of -5°C to 60°C. It meets multiple international standards including RoHS, UL, IEC, EAC, CSA, and CCC, ensuring compliance and safety for industrial use.

The compact footprint (99mm length, 92mm depth, and 45mm width) and the designed-for-disassembly construction make installation and maintenance straightforward. With its double breaking pole technology, the TeSys D series contactors efficiently handle switching in motor control and resistive load applications such as pumps, compressors, conveyors, air conditioning units, and industrial machinery.

The contactor is well suited for both AC-1 category applications (resistive loads, heating) and AC-3 category applications (squirrel cage motors). Available accessories include auxiliary contact blocks, time delay blocks, surge suppressors, and mechanical latching blocks for enhanced operation.

It ensures energy efficiency and environmental sustainability as a RS Better World product designed for disassembly and recyclability.
