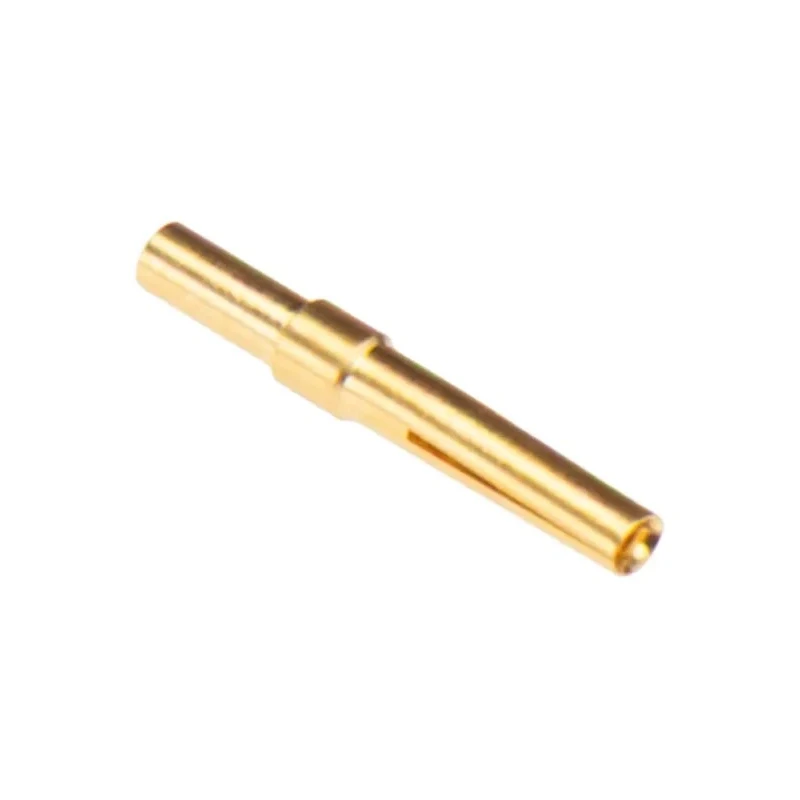

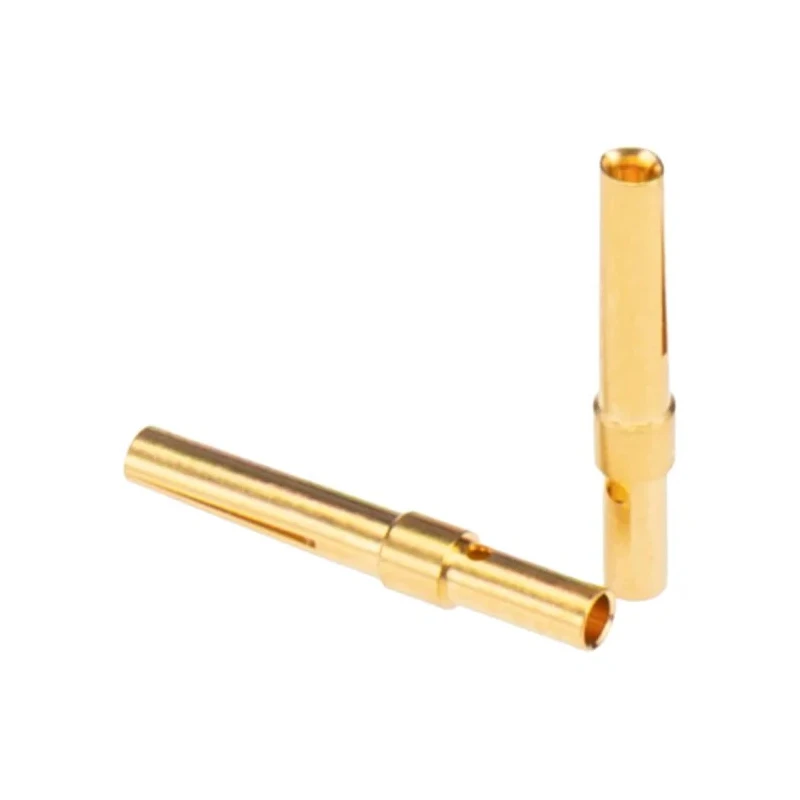

HARTING D-Sub Standard Series Circular Connector Contact 1.8 mm Female Crimp Gold over Nickel 18 AWG 09670003476

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub Standard Series Circular Connector Contact 1.8 mm Female Crimp Gold over Nickel 18 AWG 09670003476

Name: HARTING D-Sub Standard Series Circular Connector Contact 1.8 mm Female Crimp Gold over Nickel 18 AWG 09670003476
Brand: HARTING
SKU: 159005
Price: 2.01 USD
Availability: InStock



Category Circular Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Brand	HARTING
Length	13.6mm
Gender	Female
Contact Material	Nickel
Series	D-Sub Standard
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	0.82mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Contact Size	1.8 mm
Maximum Contact Resistance	20mΩ

Key Features

Gold over nickel plating reduces contact wear and improves mating consistency.
Nickel contact material ensures mechanical robustness in assemblies.
Maximum contact resistance of 20 mΩ provides low voltage drop performance.
Supports crimp termination for wire sizes ranging from 0.33 mm² to 0.82 mm².
Compatible with 18 AWG wiring commonly used in signal circuits.
Contact length is 13.6 mm, suitable for compact assembly installation.
Female gender contact type intended for signal applications.
Ideal for industrial automation, control panels, wiring harnesses, and instrumentation.

Product Description

HARTING 09670003476 Circular Connector Contact belongs to the D-Sub Standard Series and features a 1.8 mm contact size with gold over nickel plating for enhanced electrical and mechanical performance. This female signal crimp contact is designed for use in D-Sub connector assemblies, providing precise and reliable signal connections for industrial electrical and electronic systems.

The connector contact is constructed with a nickel base material, coated with gold over nickel plating, reducing wear and ensuring consistent mating cycles. The contact termination type is crimp, accommodating wire sizes from 0.33 mm² to 0.82 mm² (22 AWG to 18 AWG), allowing flexible wiring options in signal circuits.

With a maximum contact resistance of 20 milliohms, this contact ensures minimal signal loss, suitable for low voltage drop applications in industrial environments. Its 13.6 mm length must be considered for housing depth compatibility and proper insertion clearance during assembly.

This component is ideal for use in industrial automation cabinets, test and measurement equipment, control panels, and wiring harnesses used in electrical distribution racks. It supports reliable and compact female crimp connections in a variety of demanding operational environments.

Gold over nickel plating reduces contact wear and improves mating consistency. Nickel contact material supports mechanical robustness in assemblies. Maximum contact resistance of 20 mΩ ensures efficient signal transmission.

Crimp termination accepts 0.33 - 0.82 mm² wire sizes for wiring flexibility. Designed for 18 AWG wiring, a common conductor gauge in signal circuits. Compact 13.6 mm contact length accommodates standard D-Sub housing depths.

Female gender contact type for signal applications in D-Sub connectors. Applications include industrial automation, control panels, test instruments, and wiring harnesses.

The product is manufactured in Switzerland and is supplied new. It is compliant with industrial requirements for reliable and precise electrical signal connections in circular D-Sub connector systems. Browse more in the Electronics & Electricals section for related components and connector solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum contact resistance of this connector contact is 20 milliohms, ensuring minimal signal loss for efficient performance in low voltage drop applications.

This crimp contact supports wire sizes ranging from 0.33 mm² to 0.82 mm², which corresponds to 22 AWG to 18 AWG, making it suitable for various signal circuit applications.

The contact size of this model is 1.8 mm, designed for precise and reliable connections in D-Sub connector assemblies.

The contact length is 13.6 mm, which is important for ensuring compatibility with housing depths during assembly.

This contact uses a crimp termination type, allowing for flexible wiring options in signal circuits.

The contact is constructed with a nickel base material and features gold over nickel plating, which enhances electrical and mechanical performance while reducing wear.

This connector contact is of female gender, intended for use in signal applications within D-Sub connectors.

This product is manufactured in Switzerland, ensuring compliance with industrial requirements for reliable electrical connections.

This contact is suitable for applications in industrial automation, control panels, test instruments, and wiring harnesses used in electrical distribution racks.
