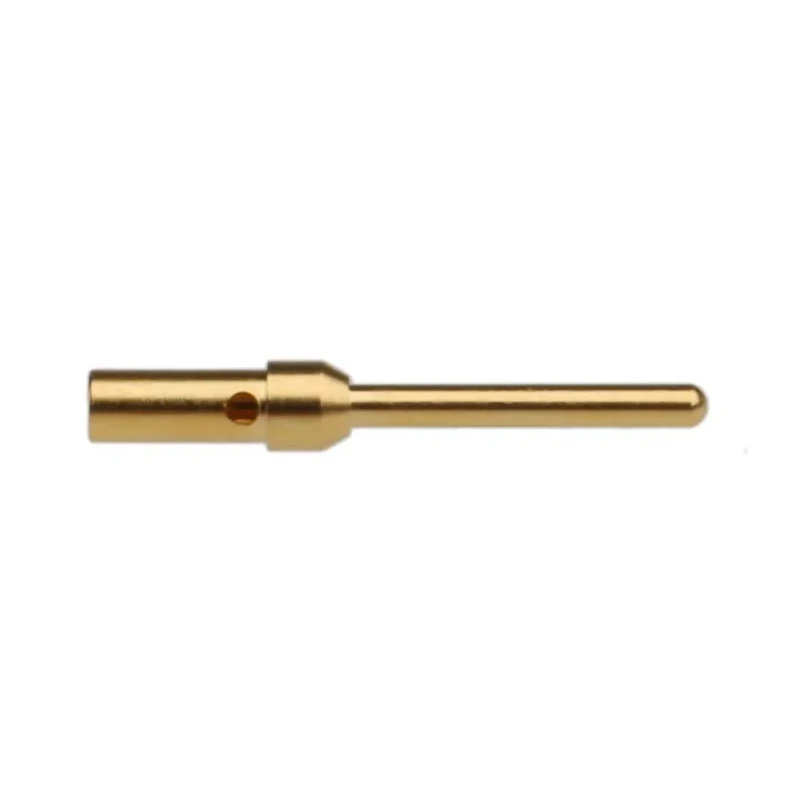

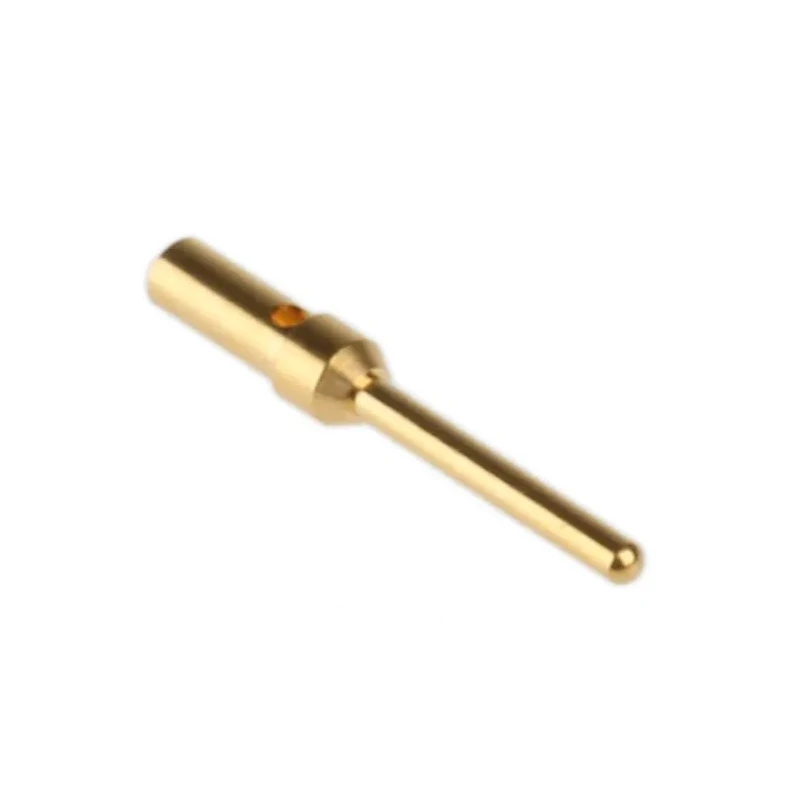

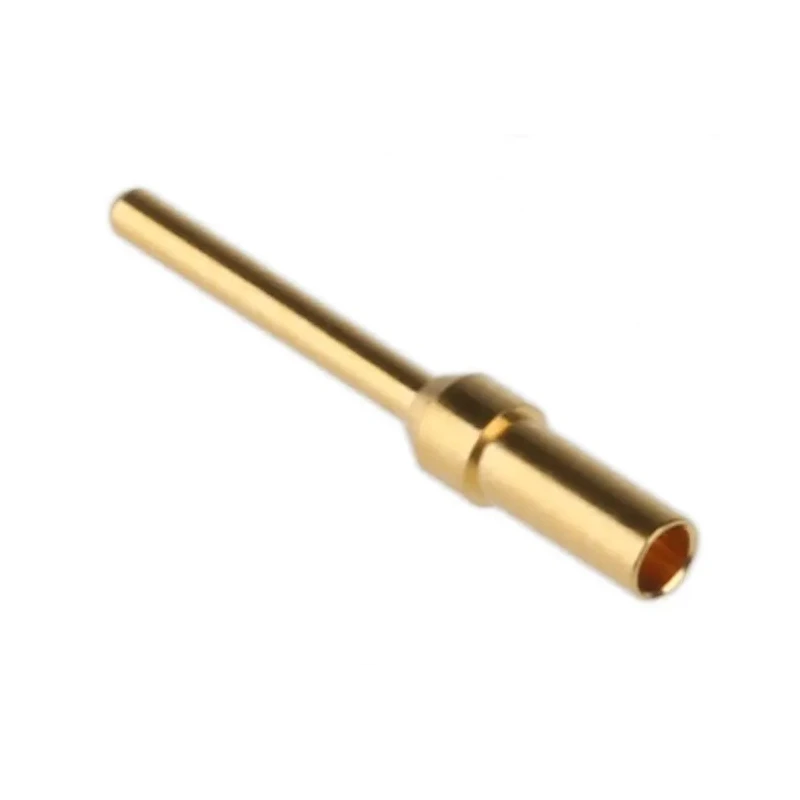

HARTING D-Sub Standard Series Circular Connector Contact 1.04 mm Male Crimp Gold over Nickel 18 AWG 09670003576
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Length | 14.2mm |
| Gender | Male |
| Contact Material | Nickel |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 0.82mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Contact Size | 1.04 mm |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for D-Sub Standard series connectors supporting wire sizes 18 to 22 AWG.
- Contact made from durable nickel material with gold over nickel plating ensuring corrosion resistance.
- Maximum contact resistance of 20 milliohms for efficient conductivity.
- Crimp termination type allows secure and stable electrical connection.
- Contact size of 1.04 mm and length of 14.2 mm suitable for precision applications.
- Optimized for signal contacts in industrial and electronic devices.
- Manufactured to rigorous standards in Switzerland, ensuring high quality.
- Compatible with associated crimp tool model 693-1137 and locator tool 747-1670.
Product Description
HARTING 09670003576 Circular Connector Contact is a high-quality male pin contact designed for the D-Sub Standard series connectors. The contact size is 1.04 mm, with compatibility for wire sizes ranging from 18 AWG to 22 AWG. It is constructed from robust nickel material plated with gold over nickel to provide excellent corrosion resistance and reliable signal conductivity.
The contact utilizes a crimp termination type which ensures a secure mechanical and electrical connection. With a contact length of 14.2 mm and maximum contact resistance of 20 milliohms, this connector contact supports precise signal transmission essential for industrial, communication, and laboratory electronic equipment.
This product is manufactured in Switzerland under strict quality control standards to guarantee performance and durability. It is specifically designed for signal contact applications within D-Sub connectors and is compatible with the recommended crimping and locator tools (models 693-1137 and 747-1670 respectively) to facilitate installation.
Designed for D-Sub Standard series connectors supporting wire sizes 18 to 22 AWG. Contact made from durable nickel material with gold over nickel plating ensuring corrosion resistance. Maximum contact resistance of 20 milliohms for efficient conductivity.
Crimp termination provides secure and stable electrical connections. Contact size of 1.04 mm and length of 14.2 mm for reliable signal transmission. Manufactured in Switzerland, assuring quality and performance. Suitable for use in industrial electronics, communication, and control systems.
Compatible with associated crimp and locator tools for easy installation.
This HARTING circular connector contact is an ideal solution for electronics manufacturers and technicians requiring high precision, durability, and reliable signal connection within D-Sub connector assemblies. Browse related Circular Connector Contacts and electrical components on EnvMart for complete connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum wire size supported by this connector contact is 18 AWG, which corresponds to a maximum wire size of 0.82 mm².
The contact size of this model is 1.04 mm, designed for high precision applications.
The maximum contact resistance is 20 milliohms, ensuring efficient conductivity for signal transmission.
This connector contact utilizes a crimp termination type, which provides a secure and stable electrical connection.
The contact is made from nickel and features gold over nickel plating to enhance corrosion resistance and conductivity.
The length of the contact is 14.2 mm, suitable for various connector assemblies.
This model is compatible with wire sizes ranging from 18 AWG to 22 AWG, or 0.33 mm² to 0.82 mm².
This connector contact is manufactured in Switzerland, adhering to strict quality control standards.
It is optimized for signal contacts in industrial electronics, communication, and control systems.
This contact is compatible with crimp tool model 693-1137 and locator tool model 747-1670 for installation.
This model is classified as a signal contact, specifically designed for D-Sub Standard series connectors.
The gold over nickel plating provides excellent corrosion resistance and enhances the reliability of signal conductivity.
