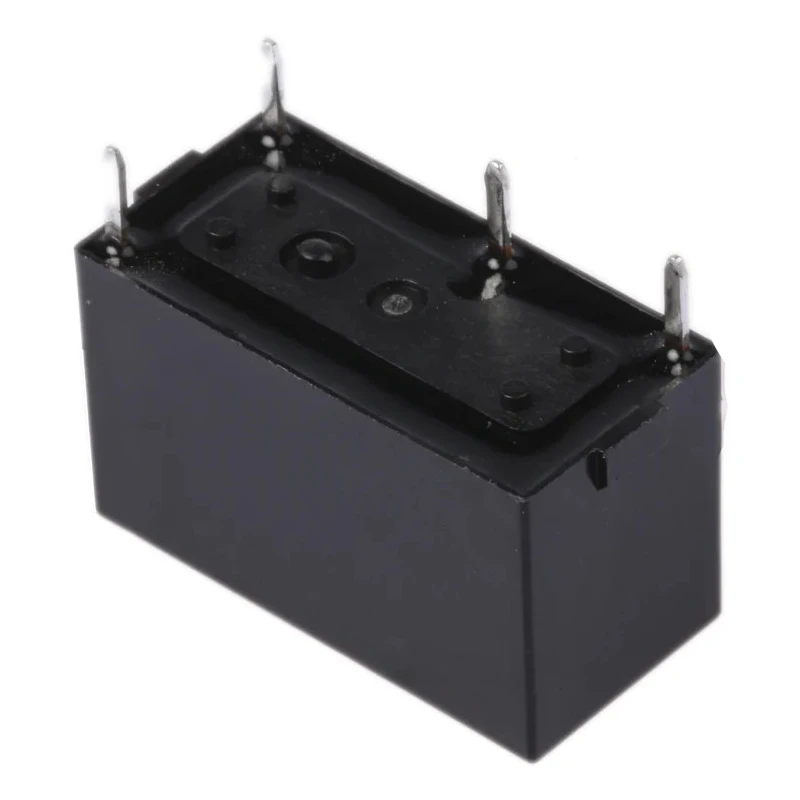

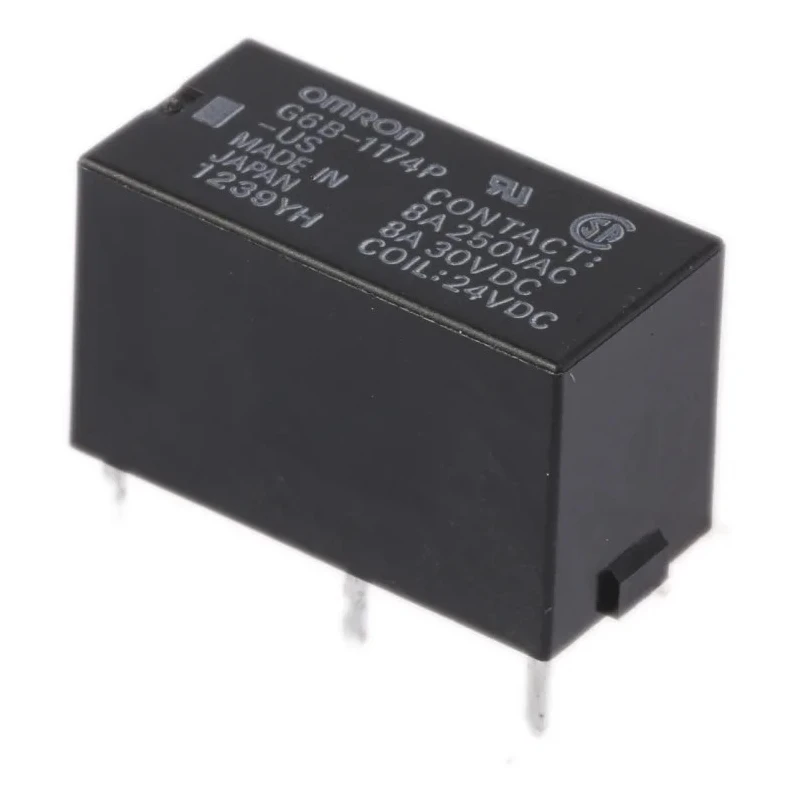

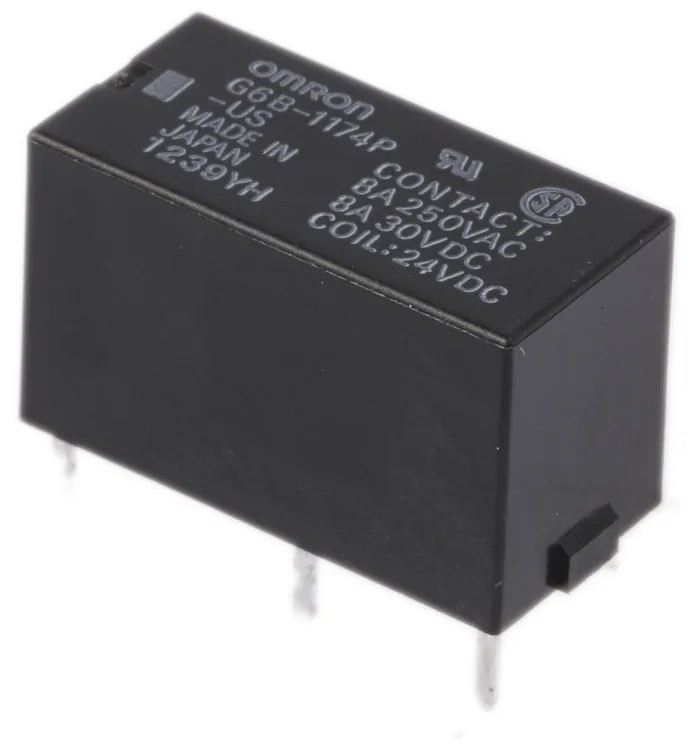

Omron PCB Power Relay SPST 24V DC Coil 8A Switching Current G6B-1174P-US DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 21.1mm |
| Model | G6B-1174P-US DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
Key Features
- This relay is designed for PCB mounting with solder terminal type for secure connections.
- It operates efficiently with low coil power consumption of 200mW and a coil resistance of 2.9kΩ.
- The relay supports switching AC voltage up to 380V and DC voltage up to 125V, suitable for varied control applications.
- Compact dimensions include 21.1mm length, 12.5mm height, and 10mm width for space-saving PCB integration.
- Constructed with high-quality silver alloy contacts, the relay ensures minimal contact resistance of 30mΩ.
- Operating temperature range spans from -25°C to 70°C, enabling reliable performance in diverse environments.
- The device complies with RoHS standards and is manufactured in Japan assuring quality and durability.
Product Description
Omron G6B-1174P-US DC24 PCB Power Relay is a non-latching power relay designed for printed circuit board (PCB) mounting applications. Featuring a coil voltage of 24V DC and an 8A switching current with SPST contact configuration, this relay is ideal for output control in industrial, electrical, automation, and manufacturing environments.
The relay utilizes a unique moving loop armature mechanism to reduce size, minimize magnetic interference, and decrease contact bounce times. Its high dielectric strength and fully sealed construction provide robust performance with an impulse withstand voltage rating of 6kV.
With a low coil power consumption of 200mW and a coil resistance of 2.9kΩ, the relay is energy-efficient and reliable. It supports switching AC voltages up to 380V and DC voltages up to 125V, allowing versatility in a wide range of control systems.
Compact dimensions (21.1mm length, 12.5mm height, and 10mm width) enable convenient installation on PCBs without sacrificing performance. The contact parts constructed from silver alloy ensure excellent conductivity and low contact resistance of 30mΩ, enhancing operational efficiency.
Designed to operate in temperatures ranging from -25°C to 70°C, the relay is suitable for various industrial, laboratory, and automation system applications. Compliance with RoHS standards further guarantees environmental safety during usage.
This relay is ideal for PCB output control in industrial automation systems. Low power consumption coil is suited for energy-efficient designs. High dielectric strength and sealed construction enhance durability. Compact size facilitates integration in tight PCB spaces.
Silver alloy contacts improve electrical conductivity and reliability. Wide operating temperature range supports diverse industrial uses. RoHS compliant for environmental safety. Explore EnvMart’s comprehensive range of Power Relays for reliable and efficient automation control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A.
This model has dimensions of 21.1mm in length, 12.5mm in height, and 10mm in width.
The coil voltage for this relay is 24V DC.
It can switch AC voltages up to 380V and DC voltages up to 125V.
The coil power consumption is 200mW.
The relay features an SPST (Single Pole Single Throw) contact configuration.
The contact resistance is 30mΩ.
The relay operates within a temperature range of -25°C to 70°C.
The contacts are made from silver alloy, ensuring good conductivity.
Yes, this relay complies with RoHS standards.
It is designed for PCB mounting with solder terminals for secure connections.
The relay is manufactured in Japan.
