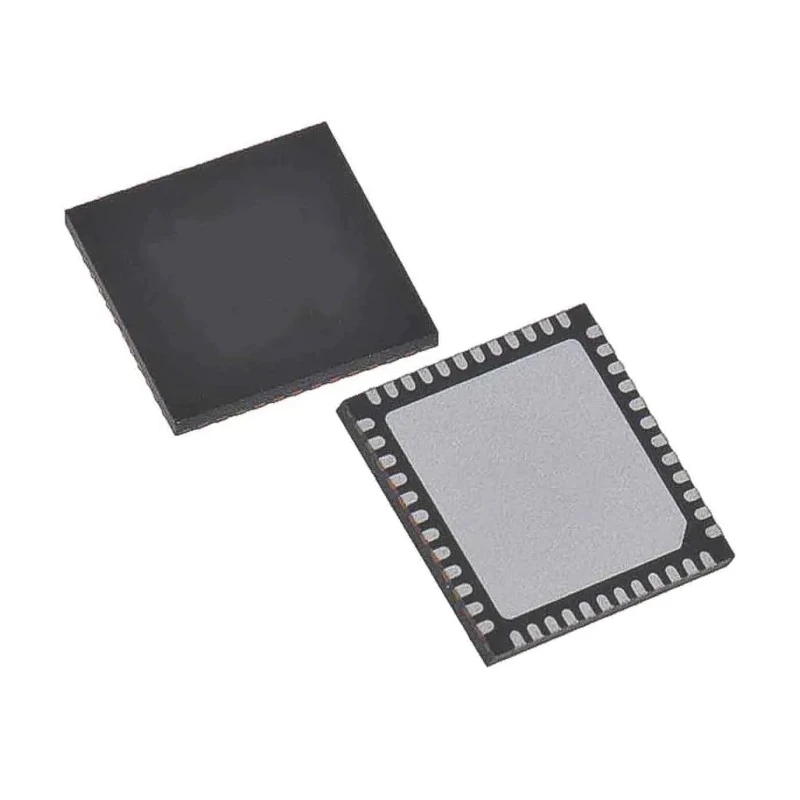

STMicroelectronics 32 bit ARM Cortex M0 48 MHz 256kB FLASH 32kB RAM Microcontroller UFQFPN 48-Pin STM32F091CCU6

STMicroelectronics STM32F091CCU6 is a high-performance 32 bit ARM Cortex M0 microcontroller designed for advanced embedded applications. Operating at a clock frequency of 48 MHz, it integrates a robust ARM Cortex M0 32-bit RISC core with 256kB of FLASH program memory and 32kB of SRAM. Packaged in a compact 48-pin UFQFPN form factor, this microcontroller is optimized for a variety of industrial, commercial, and consumer use cases.

This device supports a broad supply voltage range from 2V minimum to 3.6V maximum, ensuring flexible operating conditions. It features an extensive array of peripherals including two I2C interfaces, two SPI interfaces with one also supporting I2S functionality, one CAN interface for automotive communication, up to eight USART interfaces, and advanced timer modules for precise control applications.

The microcontroller incorporates a high-resolution 12-bit DAC with two output channels and 10 ADC channels each with 12-bit resolution, enabling accurate analog signal processing tasks. Additional features like dual analogue comparators and a variety of timer options (two 16-bit, one 32-bit, and advanced PWM timer) empower developers to implement intricate real-time control and signal conditioning.

With a maximum power dissipation of 625mW and a comprehensive set of power-saving modes, it is suitable for battery-operated and low-power applications. The operating temperature range from -40°C to +85°C makes it suitable for harsh industrial environments.

Typical applications for the STM32F091CCU6 include application control, user interfaces, hand-held devices, A/V receivers, digital TVs, industrial automation, PLCs, inverters, printers, scanners, alarm security systems, and HVAC control systems. The combination of versatile interfaces, low power consumption, and compact packaging makes this microcontroller an ideal solution for a wide range of embedded system designs.

Available documentation includes datasheets, RoHS certificates, and design resources to facilitate integration into complex electronic assemblies. Integrated ARM Cortex M0 32-bit RISC core running at up to 48 MHz. High-speed embedded memories with 256kB FLASH and 32kB SRAM for program and data storage.

Supports a wide supply voltage range from 2V to 3.6V for versatile applications. Includes multiple peripherals: two I2Cs, two SPIs/one I2S, one CAN, up to eight USARTs, and advanced timers. Equipped with 10 ADC channels at 12-bit resolution and one 12-bit DAC with two output channels.

Operates reliably within industrial temperature range of -40°C to +85°C. Low power dissipation with a maximum of 625mW and various power-saving modes for efficient operation. Compact dimensions of 7.1mm x 7.1mm x 600μm for space-constrained designs.

Designed for applications including industrial control, consumer electronics, automotive systems, and IoT devices. Explore more Microcontroller options and technical solutions with EnvMart's extensive catalog of electronic components.
