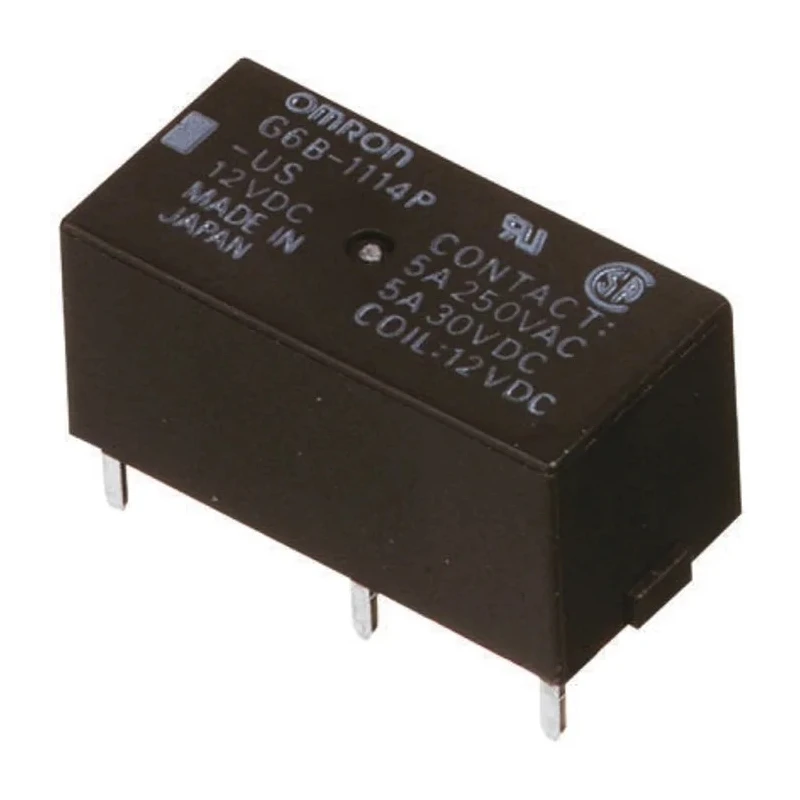

Omron Subminiature PCB Power Relay 12V DC Coil 5A Switching Current SPST G6B-1114P-US DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6B-1114P-US DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |

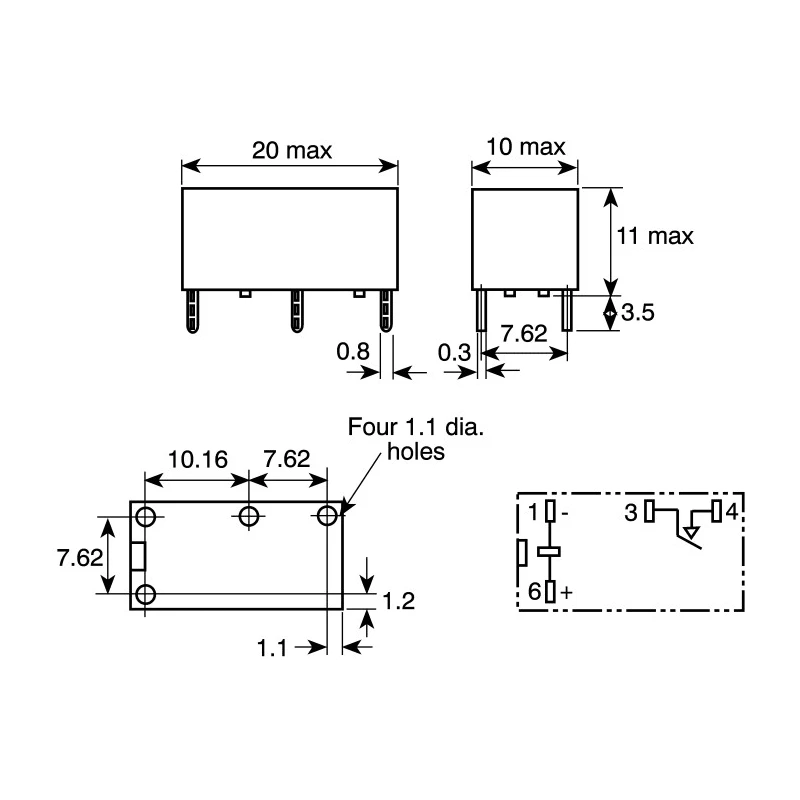

| Subminiature | 20x10x10mm |
Key Features
- Subminiature relay dimensions of 20x10x10 mm for compact PCB mounting.
- Low coil power consumption at 200 mW for energy efficiency.
- Supports switching DC voltage of 125V and AC voltage of 380V.
- Coil resistance specified at 720Ω ensuring reliable coil operation.
- Silver alloy contact material with contact resistance of 30 mΩ for durable performance.
- Operates in temperature range from -25°C to +70°C for versatile environment use.
- RoHS compliant ensuring environmental safety and regulatory adherence.
- Solder terminal type designed for secure PCB mounting and connectivity.
Product Description
Omron G6B-1114P-US DC12 Subminiature PCB Power Relay offers a compact solution with dimensions 20x10x10 mm and a 12V DC coil rated for 5A switching current in SPST configuration. This relay is designed for efficient power switching on PCBs with solder terminals, combining reliability with low power consumption of 200 mW.
The relay handles switching voltages up to 125V DC and 380V AC, making it suitable for diverse industrial and electronic control applications including automation systems, instrumentation, and power management circuits. Its coil resistance of 720Ω and silver alloy contacts with minimal resistance (30 mΩ) ensure stable electrical performance.
Designed to perform effectively in temperature ranges from -25°C to +70°C, the device is robust for various operating environments. The fully sealed construction provides high dielectric strength with an impulse withstand voltage rating of 6kV, protecting against electrical transients and ensuring long operational life.
Its compliance with RoHS standards highlights the environmental safety of this relay, suitable for applications demanding regulatory adherence. The subminiature form factor helps engineers optimize space in compact PCB designs.
Subminiature relay for compact space saving on PCBs. Low coil power consumption enhances energy efficiency. Wide switching voltage capability for DC and AC loads. Durable silver alloy contacts reduce wear and electrical noise.
Reliable operation across broad temperature range. RoHS compliant and environmentally safe. Solder terminals facilitate secure PCB integration.
This Omron G6B series relay is ideal for industrial, automation, and control equipment applications requiring dependable power relay performance on printed circuit boards. EnvMart offers this proven Omron model for engineering and manufacturing needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has dimensions of 20mm in length, 10mm in width, and 10mm in height, making it suitable for compact PCB mounting.
The relay operates with a coil voltage of 12V DC, which is essential for its activation.
It supports a maximum switching current of 5A, allowing it to handle various loads effectively.
The relay can switch DC voltages up to 125V and AC voltages up to 380V, providing versatility for different applications.
The coil power consumption is rated at 200mW, contributing to its energy efficiency during operation.
It features a Single Pole Single Throw (SPST) contact configuration, suitable for simple on/off control.
The contact material is silver alloy, which helps to reduce wear and improve electrical performance.
It operates effectively within a temperature range of -25°C to +70°C, making it suitable for various environments.
The contact resistance is specified at 30mΩ, ensuring minimal energy loss during operation.
It has solder terminals designed for secure PCB mounting and connectivity, facilitating easy integration into circuits.
Yes, it is RoHS compliant, ensuring adherence to environmental safety regulations.
This relay is manufactured in Japan, reflecting its quality and engineering standards.
