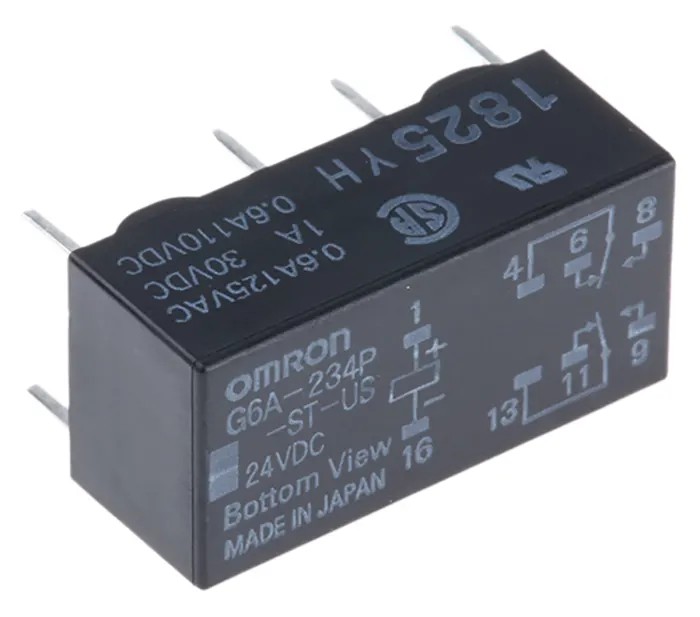

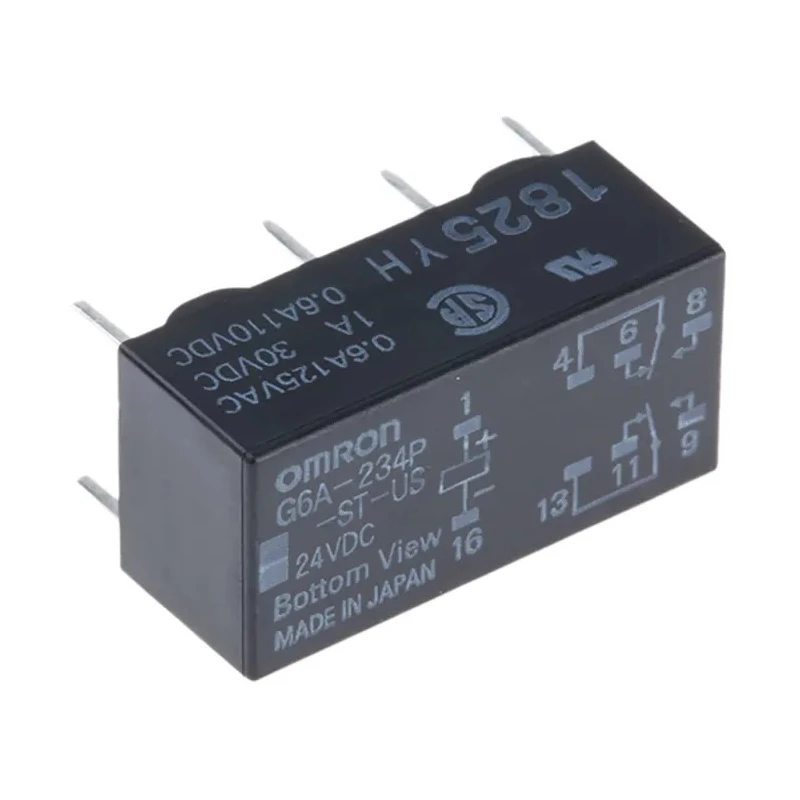

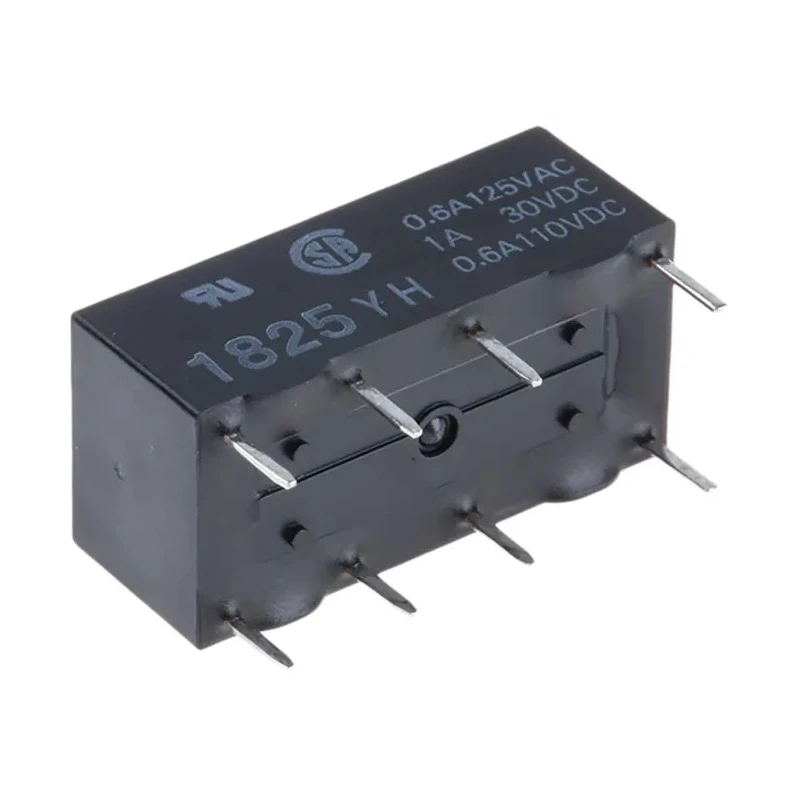

Omron Signal Relay 24V DC Coil 2A DPDT PCB Mount G6A-234P-ST-US DC24

Omron G6A-234P-ST-US DC24 Signal Relay is a high-quality PCB mount signal relay featuring a 24V DC coil and a 2A switching current. It is engineered for reliable electrical switching in various industrial and telecommunications applications.

This DPDT relay offers a versatile double-pole double-throw contact configuration ideal for complex circuit control. It operates efficiently at a coil power consumption of just 140mW with 890Ω coil resistance, ensuring energy-efficient performance.

The relay's compact size, with dimensions 19mm in length, 30mm in width, and 35.5mm in height, allows easy integration into printed circuit boards. The gold plated contacts provide excellent conductivity and durability, maintaining low contact resistance throughout extended use.

Designed for through-hole PCB mounting, it ensures secure mechanical and electrical connections. The relay supports switching AC voltages up to 230V and a maximum switching power of 50VA, accommodating a range of electrical loads.

The product features a fully sealed construction that limits magnetic leakage and provides an impulse withstand voltage of up to 1500V, enhancing its reliability in industrial environments. It also covers a broad temperature range from -40°C to 70°C, suitable for harsh operating conditions.

Certified under UL and CSA standards while also being RoHS compliant, this relay meets rigorous industrial quality and environmental requirements.

Typical applications include telecommunications equipment, industrial machinery control, automation systems, and various electrical switching tasks where compact size and robust performance are essential.

Omron's G6A series signal relay combines precision, durability, and safety, making it a trusted choice for manufacturers and engineers working within electronics and electrical sectors.

Explore more products in the Signal Relay category at EnvMart to find complementary components and accessories for your PCB and industrial designs. Features a durable double-pole double-throw (DPDT) contact configuration for versatile control.

Operates at a coil voltage of 24V DC with coil resistance of 890Ω and coil power of 140mW. Suitable for PCB mounting with through-hole terminal type for secure installation. Designed to handle switching AC voltages up to 230V AC and switching power of 50VA.

Compact dimensions of 19mm length, 30mm width, and 35.5mm height. Gold plated contact material ensures low contact resistance and long-term reliability. Wide operating temperature range from -40°C to 70°C for use in demanding environments.

Fully sealed construction minimizes magnetic leakage and provides robust impulse withstand voltage of 1500V. UL and CSA approvals make it compliant with international safety standards.
