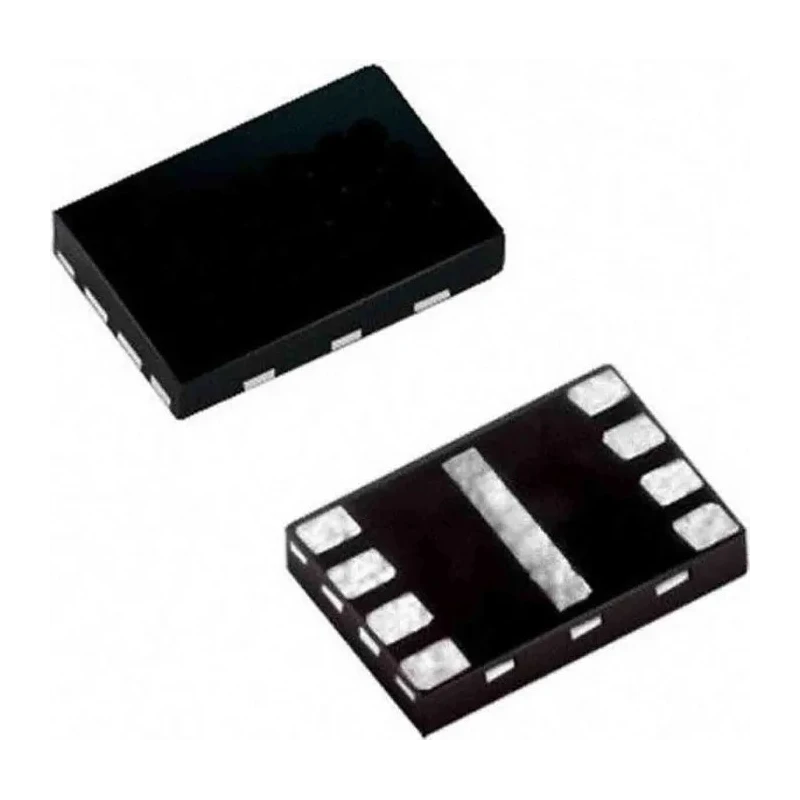

Winbond NOR 2 MB SPI Flash Memory 8-Pin USON W25X20CLUXIG

Winbond W25X20CLUXIG is a NOR type 2 MB SPI Flash Memory device designed for embedded systems requiring reliable and efficient flash storage solutions. Featuring a compact 8-Pin USON surface mount package measuring 2.1 mm by 2.1 mm and only 550 μm in height, it enables high-density memory integration in compact electronics.

This flash memory supports a maximum clock frequency of 104 MHz, providing rapid data transfer rates essential for high-performance industrial, consumer, and automotive electronics applications. Its flexible supply voltage range from 2.3V to 3.6V allows operation in diverse power conditions while maintaining low active current consumption at 15 mA, making it suitable for power-sensitive devices.

Designed to operate reliably within a wide temperature range from -40°C to 85°C, the W25X20CLUXIG memory chip meets demanding environmental requirements. Its architecture provides 256K x 8 bit organization, supporting 4KB sectors with flexible erase and program functions for versatile data management.

Utilizing NOR cell technology, the device offers high endurance and data retention, ideal for code storage, firmware, and data logging in industrial, laboratory, telecommunications, HVAC, and consumer electronics sectors. Surface mount packaging ensures easy assembly in automated manufacturing processes, optimizing production efficiency.

Key specifications include a maximum random access time of 8 ns, enhancing responsiveness for critical real-time applications. The device series W25X20CL supports reliable non-volatile memory storage essential for embedded controllers, IoT devices, and communication modules.

2 MB memory size with 256K x 8 Bit organization. SPI interface type with 8-pin USON packaging. Maximum clock frequency is 104 MHz for fast read access. Supply voltage range from 2.3V to 3.6V. Operational temperature between -40°C and 85°C.

Compact dimensions: 2.1 mm length, 2.1 mm width, 550 μm height. Low active read current of 15 mA to improve energy efficiency. NOR type memory cells for dependable and durable storage. Maximum random access time: 8 ns. Surface mount device suitable for automated PCB assembly.

This Winbond flash memory device is a reliable component for electronics manufacturers focusing on high-quality memory solutions within industrial, embedded, and consumer applications. Explore further products in Flash Memory at EnvMart for comprehensive component sourcing.
