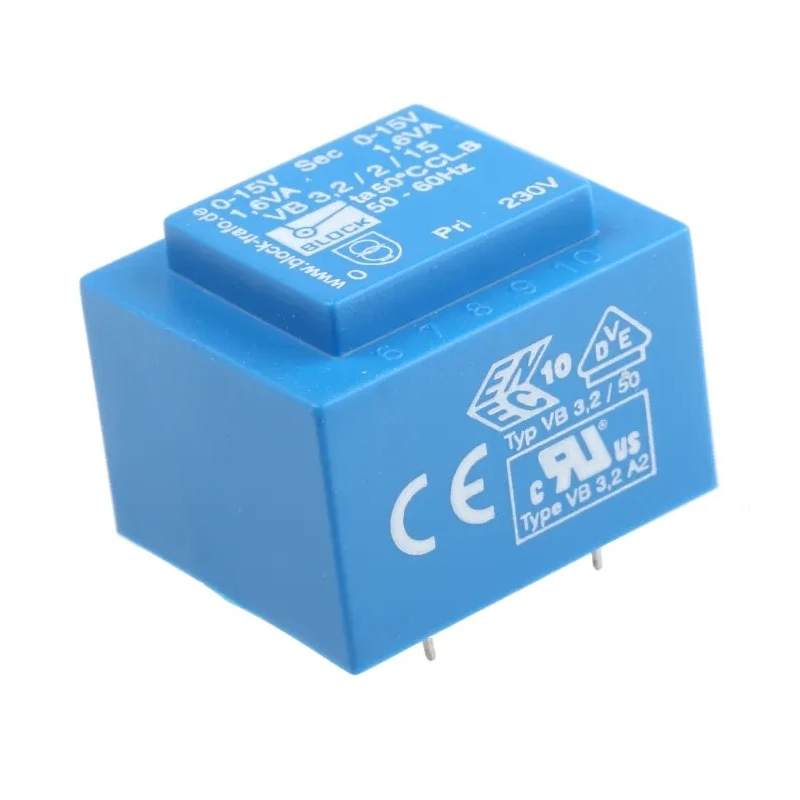

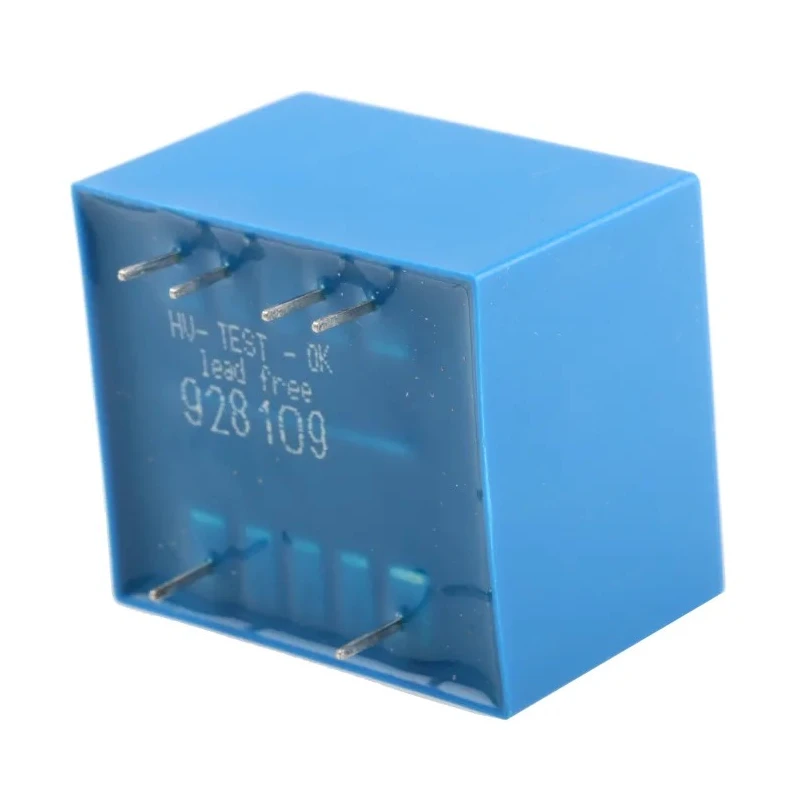

Block PCB Transformer 6 to 2 x 24 V ac 2 Output Pin, 3.2VA, Pin Mount, EN 61558-2-1 VB 3.2/2/15

Block VB 3.2/2/15 PCB Transformer is a high-performance, encapsulated transformer designed for PCB mounting that delivers a secondary voltage range from 6 to 2 x 24 V ac. It operates on a primary input of 230 V ac at 50 to 60 Hz frequency with a power rating of 3.2VA, making it suitable for sensitive electronic components and power supply circuits requiring stable voltage transformation.

Designed with precision, this transformer features a compact footprint measuring 41mm in length, 30.8mm in width, and 35mm in depth, with a lightweight 170g construction. Its pin mount configuration facilitates secure and reliable PCB installation. The unit is encapsulated using vacuum epoxy resin moulding, which enhances durability and ensures protection against environmental factors, rated to UL94-V0 for fire safety compliance.

The transformer utilizes double-section glass fibre reinforced polyamide bobbins for improved mechanical strength and electrical insulation. It boasts a reliable efficiency of 59%, helping to minimize energy waste and heat generation during operation, with a maximum operating temperature of 70°C ensuring robust performance under typical industrial conditions.

This model complies with rigorous international safety and performance standards, including EN 61558-2-1, IEC 61558-2-1, VDE 0570 Teil 2-1, cURus, CSA 22.2 No.66, ENEC 10 (VDE), DIN EN 61558-2-1, and UL 5085-1/-2 approvals. These certifications affirm its conformity to the highest industry requirements.

The VB series transformers are inherently short circuit proof, enhancing operational safety and protecting connected electronics. The design features low inter-winding capacitance and low radiated noise suitable for applications sensitive to electromagnetic interference.

Ideal for use in industrial, electronic component manufacturing, power supply systems, and laboratory instrumentation, this transformer delivers reliable voltage transformation with ease of installation and high durability.

Operates at primary voltage of 230 V ac with 50 to 60 Hz frequency range. Secondary voltage outputs of 6 to 2 x 24 V ac with two output pins. Compact dimensions: 41mm length, 30.8mm width, 35mm depth. Vacuum epoxy resin moulded to UL94-V0 rating and compact design.

Double-section glass fibre reinforced polyamide bobbins ensure durability. Efficient with 59% energy efficiency and low temperature rise. Meets EN 61558-2-1, IEC 61558-2-1, and other international safety standards. Short circuit proof for reliable industrial and laboratory use.

Weight: 170 grams for easy PCB mounting using pin mount type. Explore the comprehensive range of transformers and PCB mounting components on EnvMart for all your industrial and electronic application needs.
