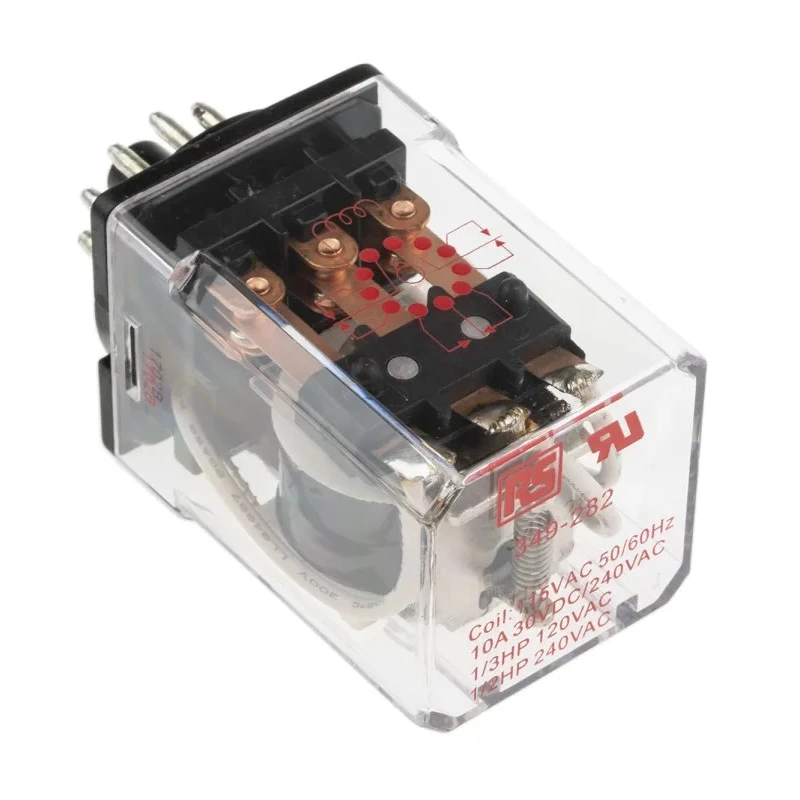

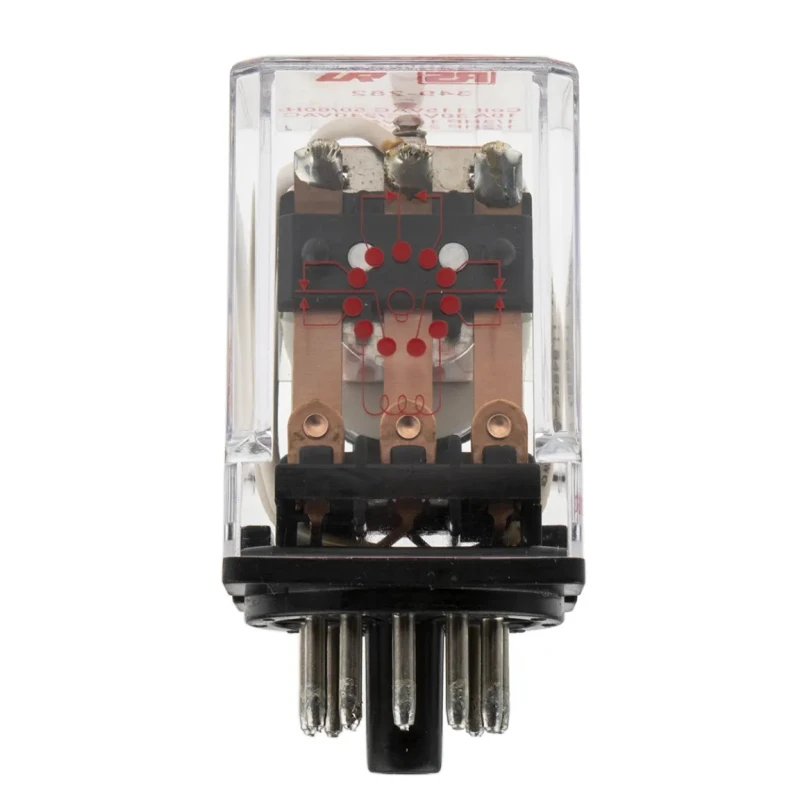

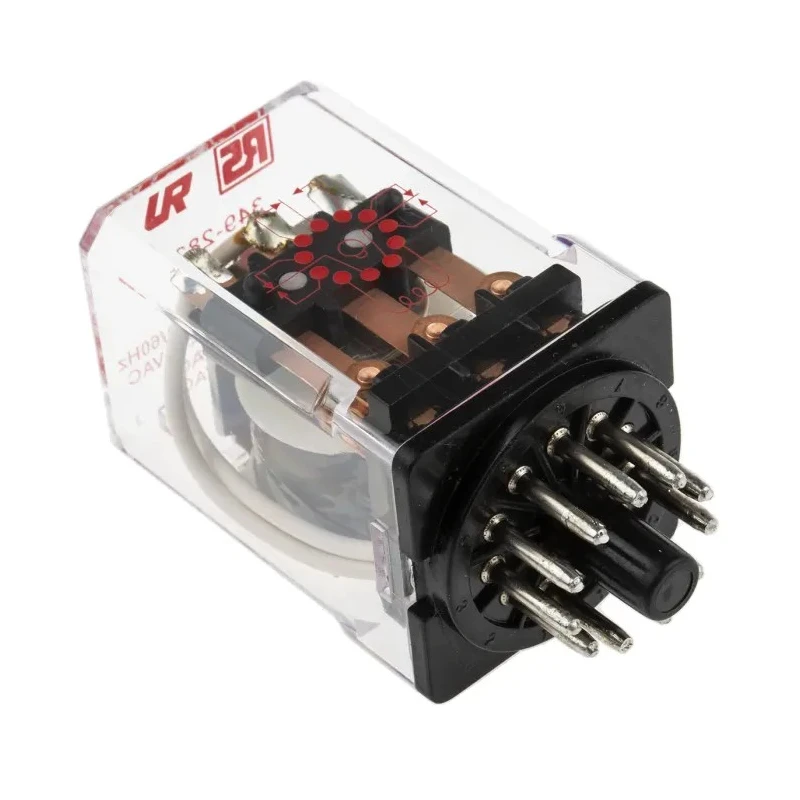

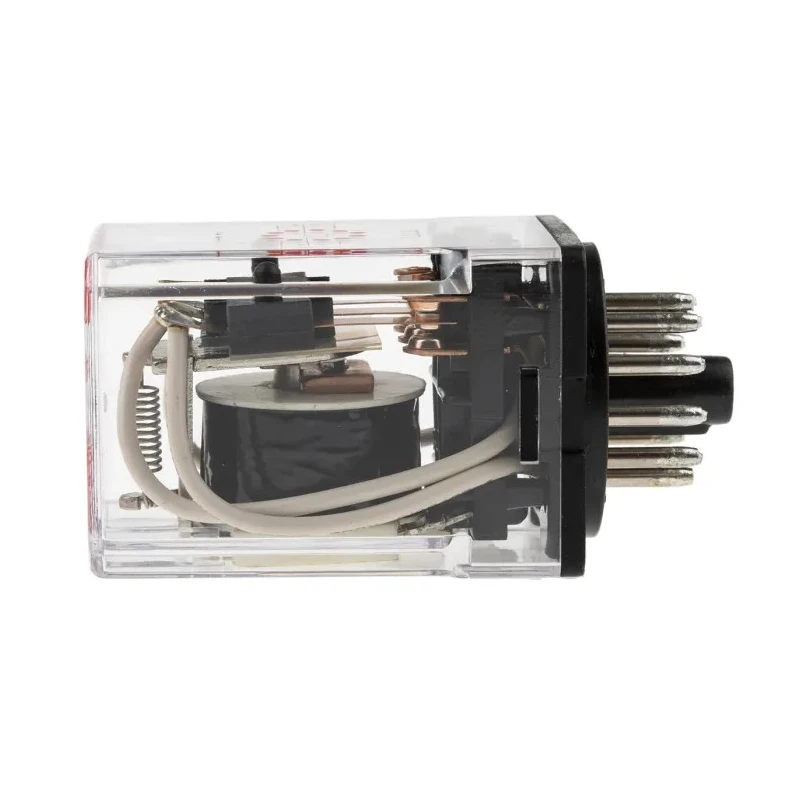

RS PRO Power Relay 3PDT, 115V AC Coil, 10A Switching Current, Silver Alloy Contacts 349-282
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 56mm |
| Length | 35mm |
| Model | 349-282 |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | UL, EN, CE |
| Coil Resistance | 2kΩ |
| Coil Voltage | 115V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 2.75W |
Key Features
- The relay uses a 3PDT contact configuration for versatile circuit switching.
- It has a coil resistance of 2 kΩ and consumes 2.75 W coil power.
- Silver alloy contacts with gold plating enhance durability and electrical performance.
- Operating temperature ranges from -45°C to 55°C ensuring reliable function in harsh environments.
- The relay offers a maximum switching power of 2.4 kVA (AC) and switching voltages up to 240V AC and 30V DC.
- Suitable for DIN rail or PCB mounting with solder terminal type.
- Mechanical life expectancy is up to 10 million cycles for long-term reliability.
- Meets UL, EN, and CE standards with compliance to CUR and UL E125370 certifications.
Product Description
RS PRO 349-282 Power Relay 3PDT is a high-quality, fast-acting relay designed for industrial and commercial applications requiring reliable electrical circuit control. Featuring a 115V AC coil voltage and 10A switching current, this relay ensures robust performance in switching operations.
The relay incorporates a 3PDT (triple pole double throw) contact configuration allowing versatile switching capabilities across multiple circuits. The coil resistance of 2 kΩ and coil power of 2.75 W ensure efficient coil operation. Silver alloy contact material, enhanced with gold plating, guarantees superior conductivity and wear resistance, extending the service life of the relay.
Designed for durability, the relay operates over a wide temperature range from -45°C to 55°C, making it suitable for use in demanding environments including industrial automation, telecommunications, and medical equipment.
It supports maximum switching power of 2.4 kVA (AC) and maximum switching voltages of 240V AC and 30V DC, providing flexibility for switching various loads. The compact dimensions of 35 mm length, 35 mm width, and 56 mm height facilitate easy installation on DIN rails or directly onto printed circuit boards via solder terminals.
The RS PRO 349-282 is constructed with a robust polycarbonate housing that protects internal components against dirt, moisture, and mechanical wear. With a mechanical life expectancy of up to 10 million cycles, this relay is engineered for long-term reliability.
The relay's plug-in mounting type simplifies replacement and maintenance. Three poles allow simultaneous switching of different circuits. It complies with industry standards including UL, EN, and CE, with specific UL E125370 certification.
The component is ideal for controlling push-buttons and other industrial control systems. Silver alloy contacts with gold plating improve contact reliability and lifespan.
This product originates from China and is suitable for electrical installation in industrial, automation, and commercial applications. RS PRO products assure safety and quality through rigorous testing and certification.
Explore more Power Relays and control products within the RS PRO range on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 115V AC.
This model has a maximum switching current of 10A.
It features a 3PDT (triple pole double throw) contact configuration.
The maximum switching power of this relay is 2.4 kVA (AC).
This relay can operate in temperatures ranging from -45°C to 55°C.
It uses solder type terminals for connection.
The coil resistance of this relay is 2 kΩ.
The dimensions are 35 mm in length, 35 mm in width, and 56 mm in height.
The contact material is silver alloy, enhanced with gold plating.
It complies with UL, EN, and CE standards.
The mechanical life expectancy of this relay is up to 10 million cycles.
This relay is suitable for industrial automation, telecommunications, and medical equipment applications.
