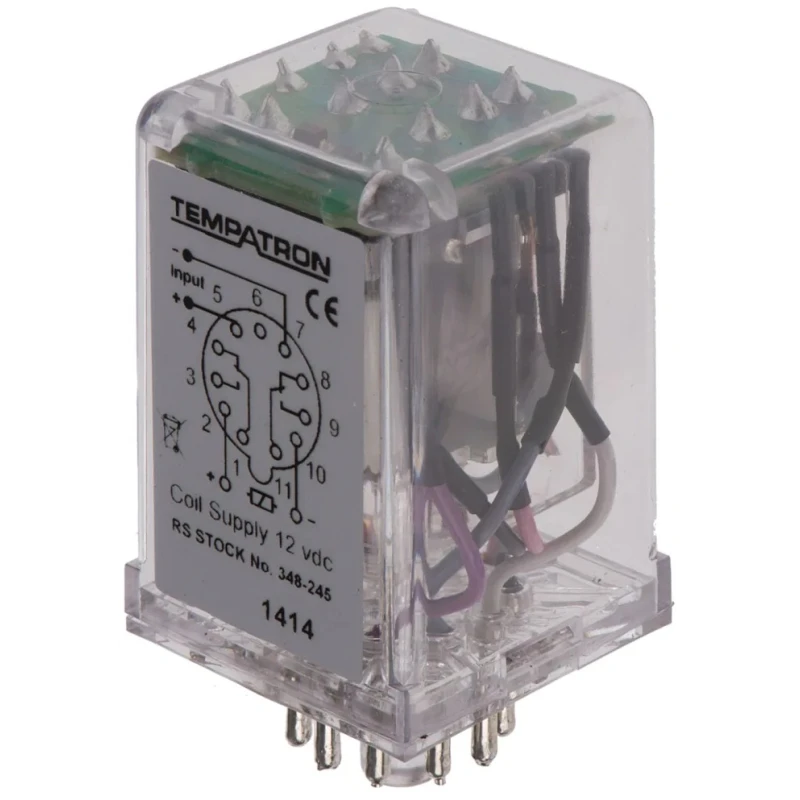

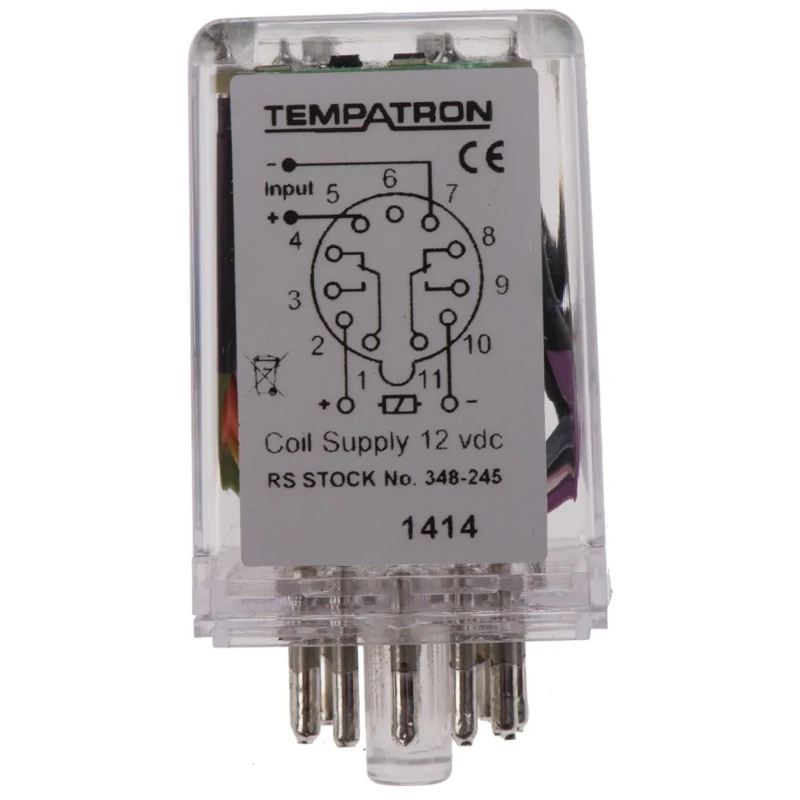

Tempatron Power Relay 12V DC Coil 7A Switching Current DPDT HSR-12VDC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 54mm |
| Length | 36mm |
| Model | HSR-12VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | HSR |
| Maximum Operating Temperature | 50°C |

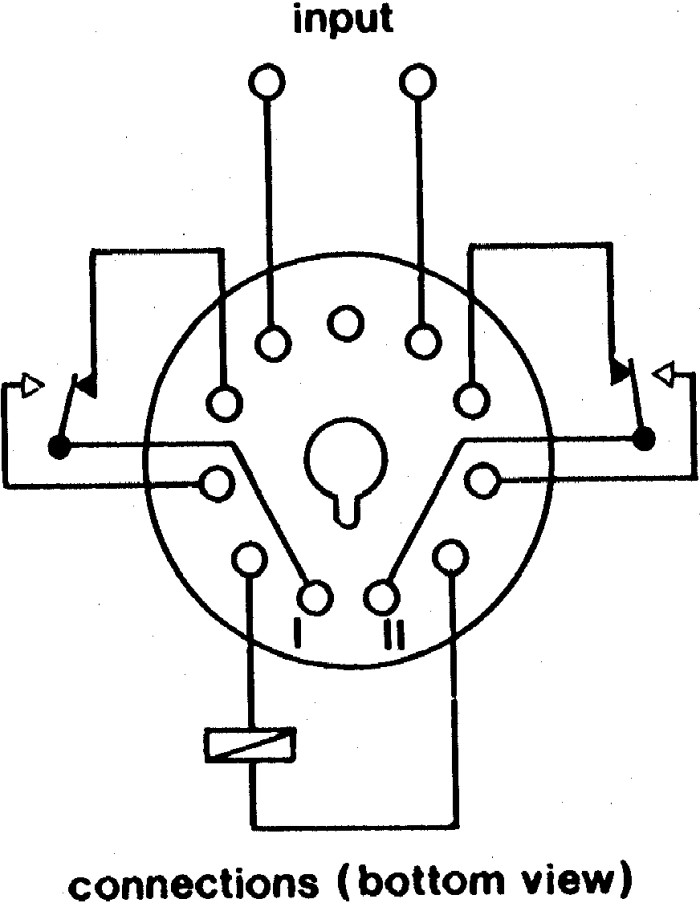

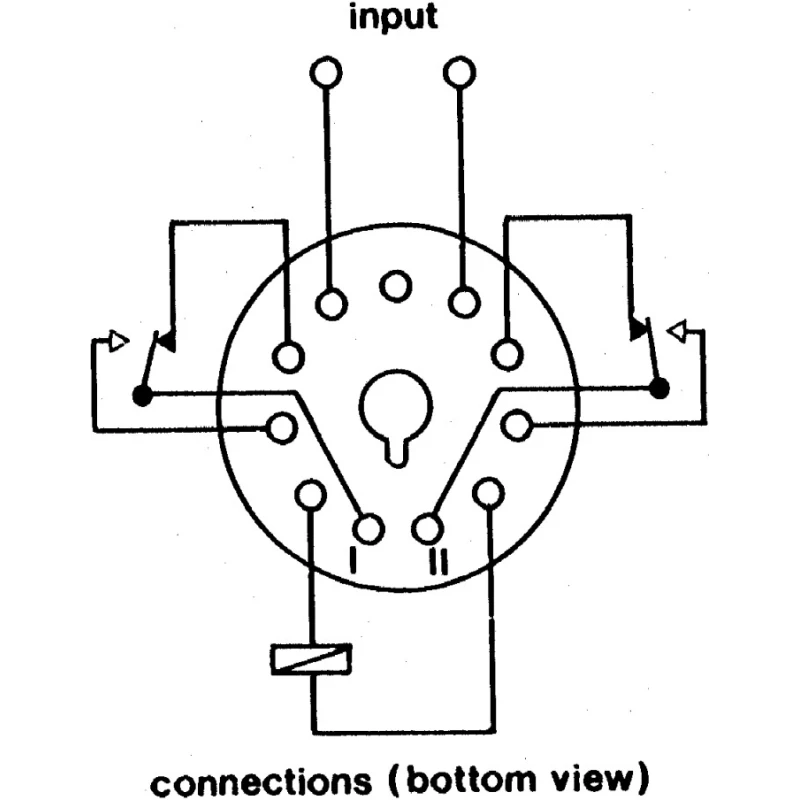

| Contact Configuration | DPDT |
| Minimum Operating Temperature | 0°C |
| Switching Current | 7A |
| Terminal type | Plug-In |
| Standards/Approvals | CE marked (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives) |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Wide Input Voltage Range | 3.5V to 50V |
Key Features

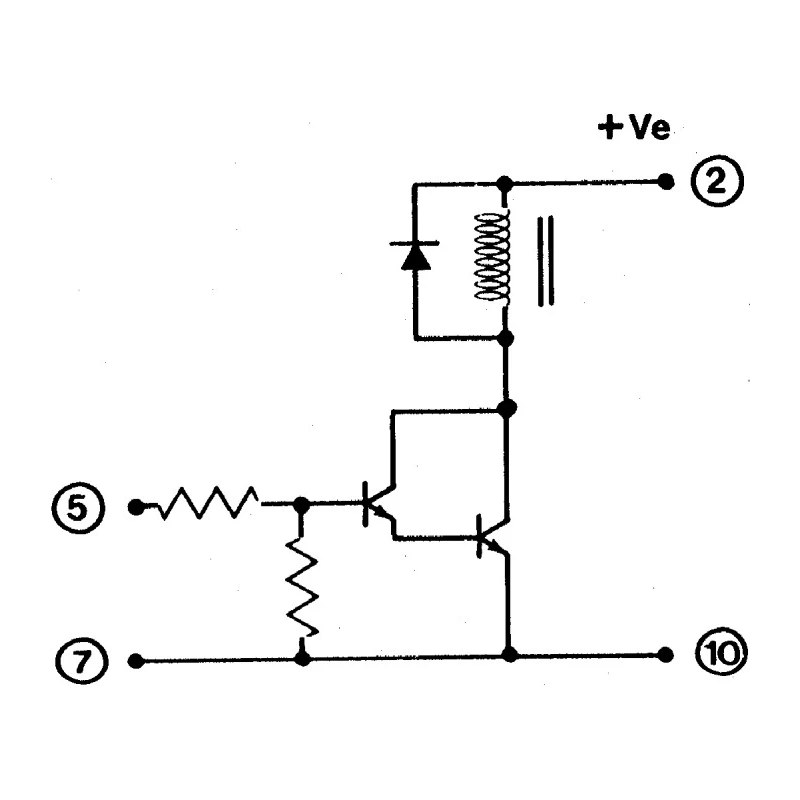

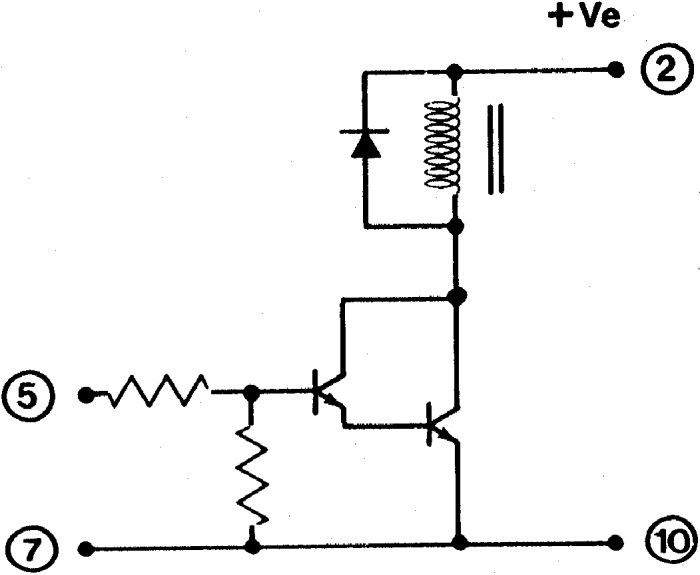

- The relay has a transistorised high-sensitivity design with Darlington pair input circuitry.
- Ideal for use with CMOS devices due to its wide input voltage range from 3.5V to 50V.
- Contacts are made from silver alloy, ensuring reliable conductivity and durability.
- The relay is CE marked and meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
- Operating temperature range is from 0°C to 50°C, suitable for various industrial environments.
- The compact dimensions are 54mm height, 36mm length, and 36mm width for space-saving placements.

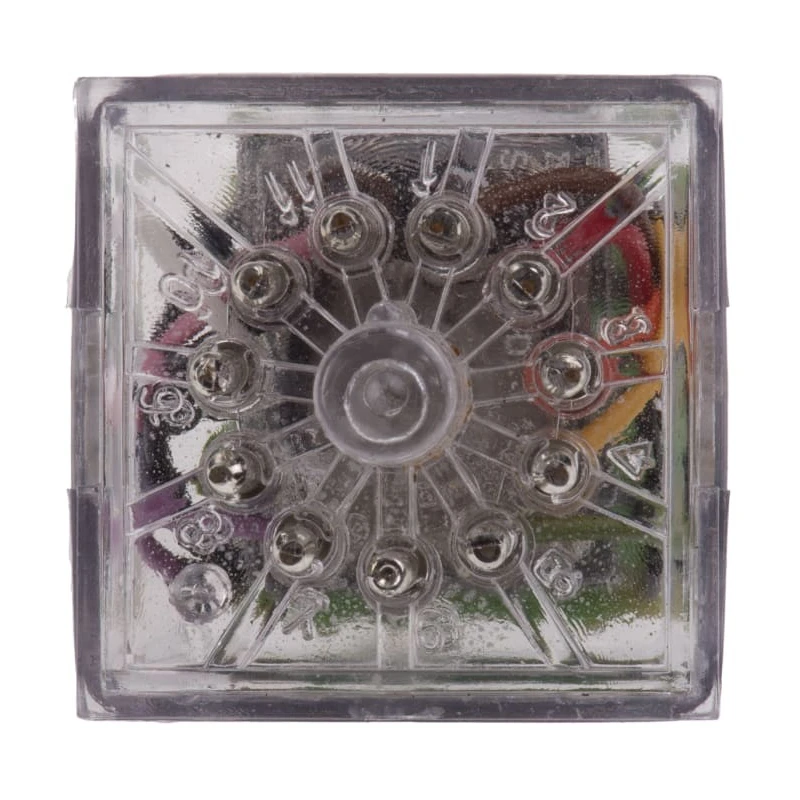

- Plug-in terminal type allows for easy installation and replacement.
- Switching AC voltage up to 240V and DC switching voltage up to 30V support diverse electrical loads.
Product Description
Tempatron HSR-12VDC Power Relay is a transistorised high-sensitivity relay designed for precise electrical switching applications. It features a 12V DC coil with a low coil power consumption of 0.76VA, making it energy efficient for continuous operation.
This DPDT (Double Pole Double Throw) relay utilizes silver alloy contacts to provide excellent conductivity and withstand wear in industrial environments. Its plug-in type terminals simplify installation and maintenance.
Designed with a Darlington pair input circuitry, the relay is ideal for interfacing with CMOS devices, offering a broad input voltage range from 3.5V to 50V. It operates reliably within a temperature range of 0°C to 50°C, making it suitable for various environmental conditions found in electrical, automation, and control systems across manufacturing and industrial sectors.
Automatic compliance with CE standards ensures this relay meets low voltage (EN61010-1) and EMC directives (EN50081-1/50082-1), ensuring safe and interference-free operation. The relay supports a switching current of 7A, with AC switching voltage up to 240V and DC switching voltage up to 30V, allowing it to control a wide array of electrical loads.
The compact size of 54mm height, 36mm length, and 36mm width allows for space-saving integration into control panels and devices. Its robust design ensures long operational life and dependable performance in demanding industrial applications.
The relay's transistorised high-sensitivity and Darlington input make it ideal for precision control. Wide input voltage range of 3.5V to 50V provides flexibility for various circuits. Silver alloy contacts ensure durability and optimal conductivity.
Compliance with CE standards guarantees reliability and safety in industrial environments. Compact dimensions enable easy installation in confined spaces. Plug-in terminals allow for quick and secure connection. Suitable for controlling AC loads up to 240V and DC loads up to 30V.
Operating temperature range from 0°C to 50°C supports diverse industrial settings.
This power relay is widely used in industrial automation, electrical control systems, manufacturing equipment, HVAC controls, and other applications requiring reliable switching under moderate electrical loads.
Explore more high-performance Power Relays and components in the Electronics & Electricals category at EnvMart to enhance your automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 7A.
This model operates with a coil voltage of 12V DC.
The relay has compact dimensions of 54mm in height, 36mm in length, and 36mm in width.
It features a Double Pole Double Throw (DPDT) contact configuration.
The relay supports a maximum switching voltage of 240V AC and 30V DC.
The operating temperature range is from 0°C to 50°C.
The contacts are made from silver alloy, ensuring reliable conductivity.
Yes, it is CE marked and meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
The relay has a wide input voltage range from 3.5V to 50V.
It features plug-in type terminals for easy installation and replacement.
This power relay is suitable for applications in industrial automation, electrical control systems, and HVAC controls.
The relay is manufactured in the United Kingdom.
