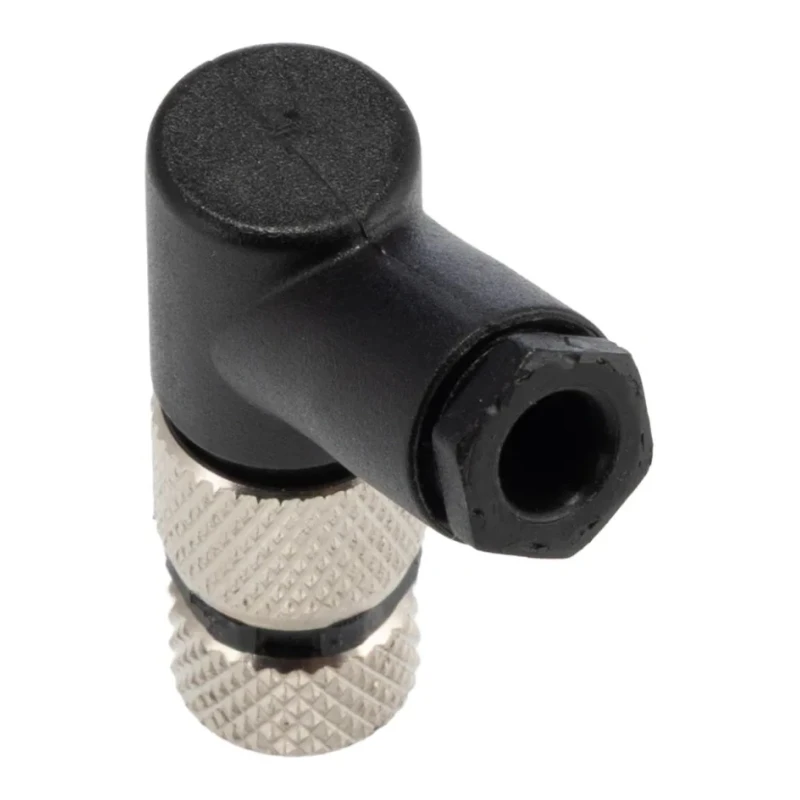

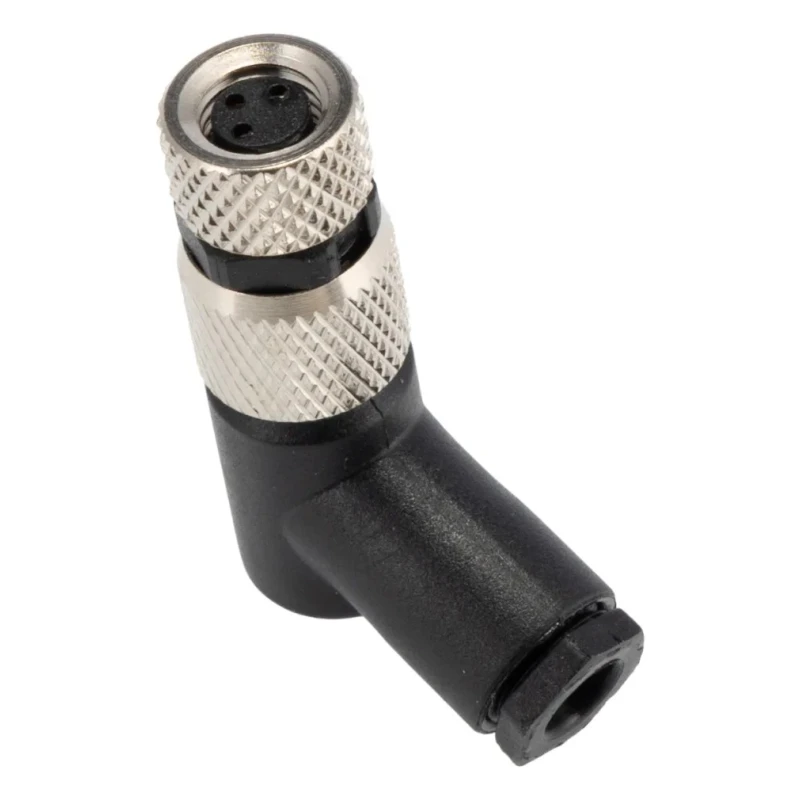

RS PRO Circular Connector, 3 Contacts, Cable Mount, M8 Size, Socket Female, IP67 Rated, 30V, 3A Current IP67
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 3A |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Screw |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 12 mm |
| Mating Type | Threaded |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- Rated IP67 for protection against dust and water ingress.
- Gold plated brass contacts ensure reliable and corrosion-resistant conductivity.
- Screw termination type provides secure and stable connection.
- Operating temperature range from -25°C to 75°C suits various industrial environments.
- Right angled orientation with threaded mating type for reliable mechanical connection.
- Housing made from durable nylon material for insulation and mechanical protection.
- Suitable for automation, sensor equipment, and industrial machinery applications.
- Compact M8 size with 3 contacts and 3A current rating per contact.
Product Description
RS PRO IP67 Circular Connector model IP67 is a 3-contact, cable mount, socket female connector with M8 size, designed to deliver robust electrical connections in demanding industrial applications. It supports a voltage rating of 30V and a current rating of up to 3A per contact, ensuring secure and efficient power and signal transmission.
This connector features a right angled orientation and threaded mating type, facilitating a sturdy mechanical coupling with compatible cable mount plugs. The gold plated contacts provide exceptional corrosion resistance and high conductivity, while the brass contact material and brass nickel plated coupling nut improve mechanical strength.
The connector housing is constructed from nylon material, offering excellent insulation and mechanical protection. It employs a screw termination type to secure the cable connection firmly, and includes a neoprene O-ring seal that guarantees an IP67 ingress protection rating, making it resistant to dust and water, suitable for harsh industrial environments.
Operating temperature ranges from -25°C to 75°C, allowing the connector to perform reliably across varied ambient conditions typically found in automation, sensor equipment, and industrial machinery.
Rated IP67 for dust and water protection. Gold plated brass contacts ensure corrosion resistance. Screw termination for secure cable connections. Durable nylon housing with mechanical protection. Right angled, threaded mating type for firm coupling.
Neoprene O-ring for sealing and ingress protection. Supports 30V voltage and 3A current per contact. Designed for industrial, automation, and sensor equipment. Brass nickel plated coupling nut and PG5 cable gland. Operating temperature from -25°C to 75°C.
This RS PRO circular connector is a reliable choice for professionals seeking dependable connections in automation, industrial machinery, and sensor equipment. Explore a wide range of Industrial Circular Connectors and accessories at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circular connector has a voltage rating of 30V.
It supports a current rating of up to 3A per contact.
This model employs a screw termination type for secure cable connections.
The connector is rated IP67, providing protection against dust and water ingress.
The housing is made from nylon, and the contacts are gold plated brass for corrosion resistance.
It operates effectively within a temperature range of -25°C to 75°C.
This model features a right angled orientation, which aids in installation.
It has 3 contacts.
The connector is of M8 size, with a shell size of 12 mm.
It is suitable for automation, sensor equipment, and industrial machinery applications.
The connector uses a threaded mating type for reliable mechanical connection.
The country of origin for this connector is India.
