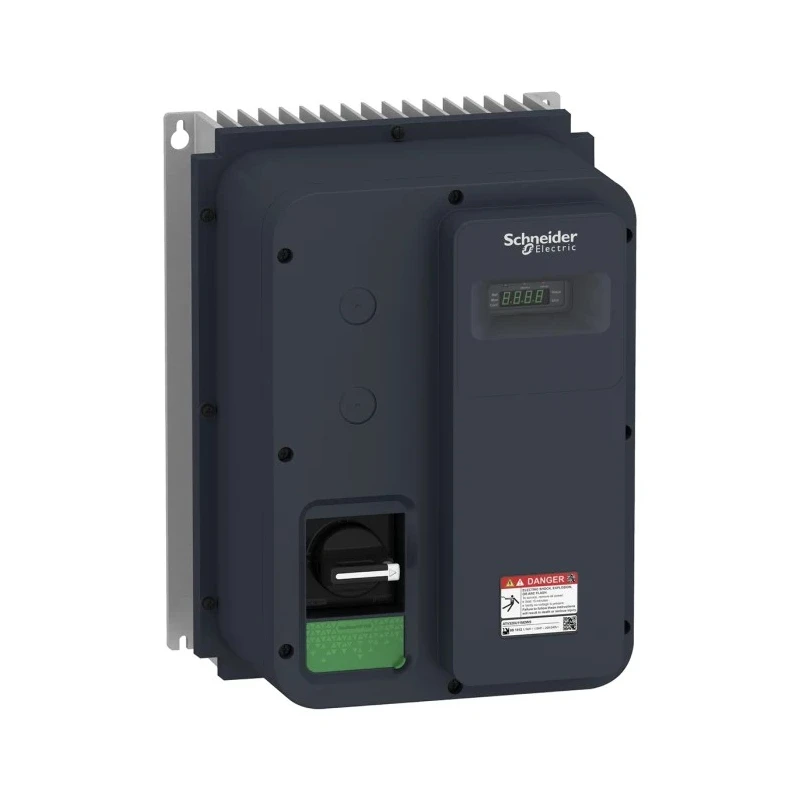

Schneider Electric Variable Speed Drive 1.5 kW 1 Phase Altivar Series 240V AC 8 A ATV320U15M2WS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U15M2WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 235mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 1 |
| Maximum Output Current | 8A |
| Maximum Supply Voltage | 240V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 200V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, Synchronous, AC Motor |
Key Features
- Offers IP65 protection rating suitable for harsh environments.
- Supports supply voltage range from 200V to 240V AC with up to 8 A output current.
- Compatible with Altivar series motors and supports Modbus and CANopen protocols.
- Features advanced safety functions configurable via SoMove software.
- Compact wall-mounted design with dimensions 250mm length, 235mm width, and 340mm depth.
- Operates within temperature range from -10°C up to +60°C.
- Embedded EMC C2 filter ensures reduced electromagnetic interference.
- Designed for industrial applications including conveyor systems, packaging, woodworking, and food and beverage sectors.
Product Description
Schneider Electric ATV320U15M2WS model is a robust variable speed drive delivering 1.5 kW power at 1 phase, designed for efficient motor control in industrial automation applications. It supports asynchronous and synchronous AC motors, operating safely within a voltage range of 200V to 240V AC and output current up to 8 A.
Featuring an IP65 rating, this wall-mounted Altivar series drive offers protection against dust and water, making it suitable for harsh or washdown environments encountered in manufacturing, packaging, conveyors, and food processing industries.
The compact unit measures 250 mm in length, 235 mm in width, and 340 mm in depth, and weighs 7.8 kg. It includes an embedded EMC C2 filter to minimize electromagnetic emissions and incorporates 5 integral safety functions, configurable via SoMove software to meet machine safety standards.
The drive offers advanced communication options including Modbus and CANopen protocols accessible via the front RJ45 connector, enabling seamless integration into automation networks such as EtherNet/IP, Profinet, EtherCAT, Profibus, DeviceNet, and others.
Operating temperature range spans from -10°C to +60°C, supporting reliability across varied industrial environments. This product conforms with numerous international standards including IEC 61800-3, UL 61800-5-1, CSA, NOM, GOST, and REACH, evidencing global compliance and safety certification.
IP65 protection for harsh environments. Supports 1.5 kW power with 8 A output current. Compatible with asynchronous and synchronous AC motors. Embedded EMC C2 filter reduces interference. Advanced safety functions configurable by SoMove software.
Multiple industrial communication protocols supported. Wall-mount design with compact footprint. Wide operating temperature range from -10°C to +60°C. Certified to multiple international standards.
This variable speed drive is ideal for automation in conveyors, carton packing, gantry cranes, woodworking, metal processing, fans, and food and beverage industries. The Altivar Machine ATV320 series enables easy integration with EcoStruxure Machine software, facilitating comprehensive machine development, configuration, and commissioning.
