Tempatron On-Off Temperature Controller DIN Rail Panel Surface Mount 5 Output Relay 230V AC TC4800

Free Delivery in India | Lowest Global Shipping Charges

Tempatron On-Off Temperature Controller DIN Rail Panel Surface Mount 5 Output Relay 230V AC TC4800

Name: Tempatron On-Off Temperature Controller DIN Rail Panel Surface Mount 5 Output Relay 230V AC TC4800
Brand: Tempatron
SKU: 157129
Price: 200.72 USD
Availability: InStock



Category Temperature Controllers Brand Tempatron Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LED
Brand	Tempatron
Length	89mm
Model	TC4800
IP Rating	IP40
Width	48mm
Mount Type	DIN Rail, Panel, Surface
Output type	Relay
Series	TC4800
Input Type	K Type Thermocouple
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Maximum Current	5A
Number of outputs	5
Maximum Voltage	240V ac
Standards/Approvals	CE marked (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives)
Maximum Supply Voltage	230V ac
Panel Depth	74mm
Tempatron F DIN Rail On-Off Temperature Controller Relay 230V ac On-OffBrand	Tempatron

Key Features

Designed for DIN rail, panel, or surface mounting for versatile installation.
Operates with K type thermocouple input for precise temperature monitoring.
LED display indicates status and supply for easy monitoring.
Supports temperatures from -10°C to 50°C operating range.
Offers scale range from 0°C to 400°C suitable for various applications.
Built-in relay outputs rated at 5A maximum current for robust control.
Compact dimensions with 89mm length, 48mm width, and 74mm panel depth.
Certified to CE standards meeting EN61010-1 and EMC directives.

Product Description

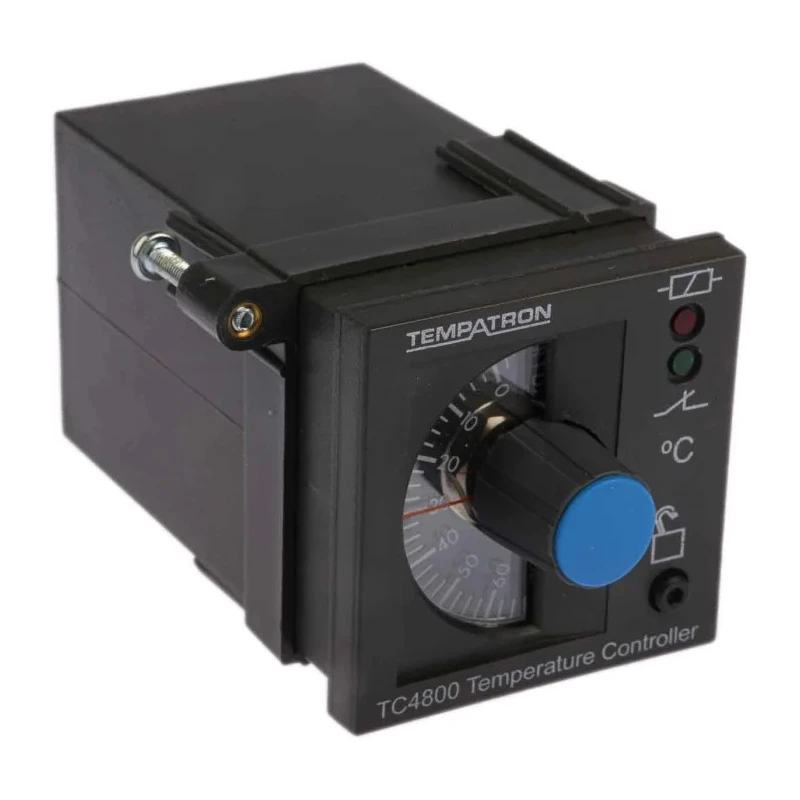

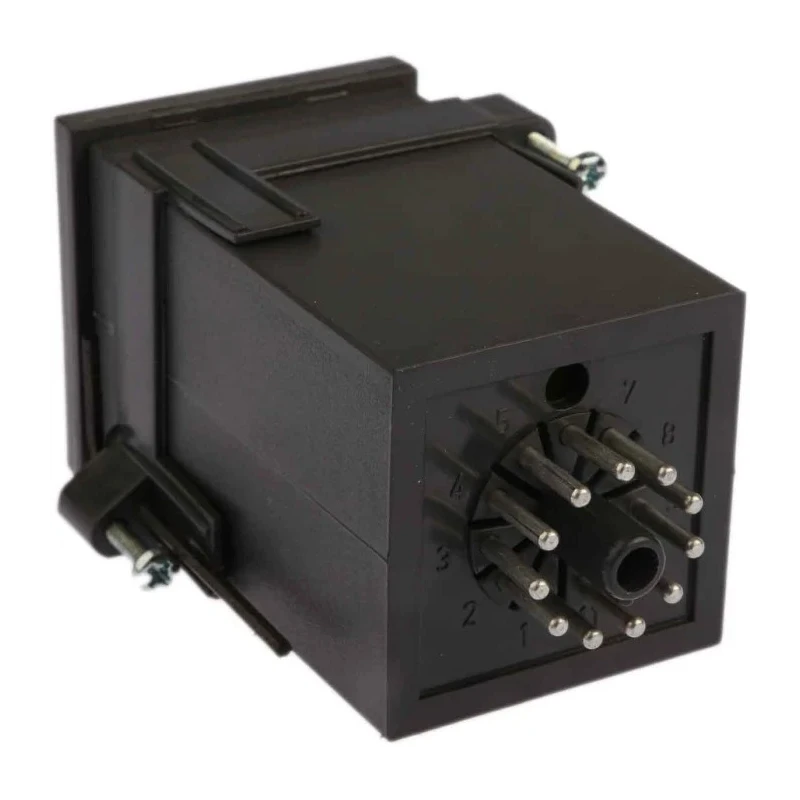

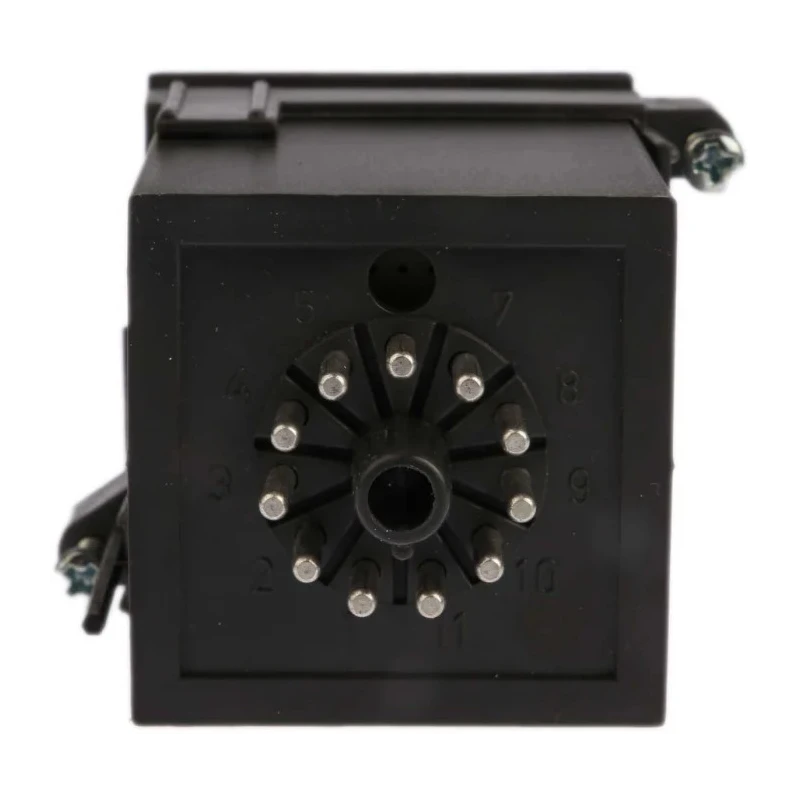

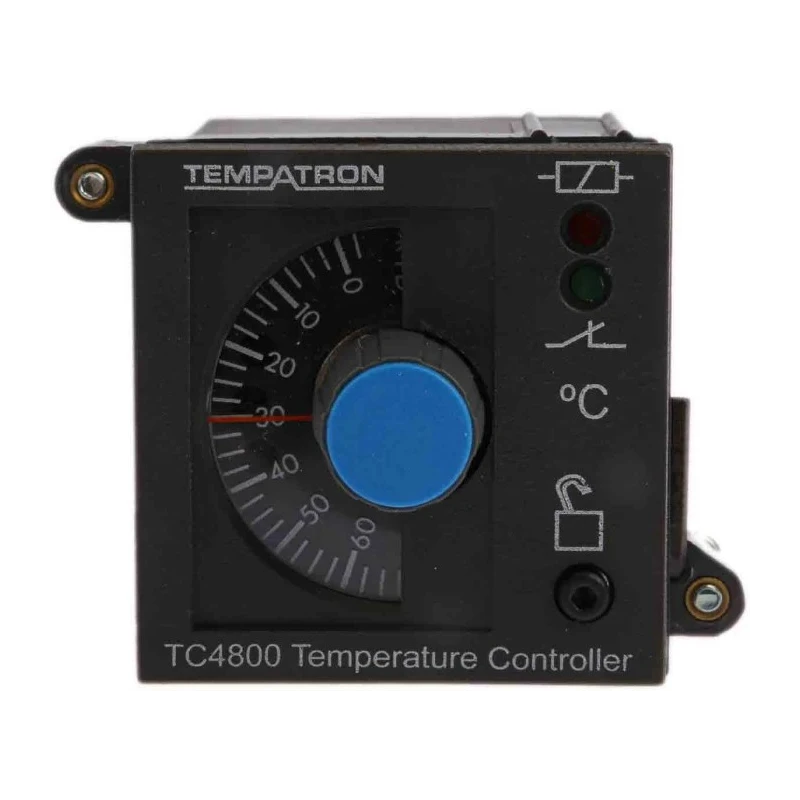

Tempatron TC4800 On-Off Temperature Controller DIN Rail Panel Surface Mount, model TC4800, provides precise temperature control with a supply voltage of up to 240V AC. This controller is designed to operate within a temperature range of -10°C to 50°C, suitable for industrial, laboratory, HVAC, and manufacturing process control applications.

Equipped with 5 relay outputs rated at 5A max current, it supports K type thermocouple sensors to deliver accurate temperature readings across a scale range of 0°C to 400°C. The LED display offers clear status and power supply indication, making it easy for operators to monitor system conditions effectively.

The controller enclosure is compact with dimensions of 89mm length, 48mm width, and 74mm panel depth, designed for convenient DIN rail, panel, or surface mounting. It is rated IP40 for protection and complies with CE standards, including EN61010-1 low voltage safety and EN50081-1/50082-1 EMC directives, ensuring reliable and safe operation in varied industrial environments.

Additional features include supplied hex keys for temperature lock setting, capability for reverse or direct action, and compatibility with matching timers and tachometer relays for enhanced process control.

Industrial use cases include temperature regulation in manufacturing processes, HVAC system management, laboratory equipment control, and automation in water treatment and food processing industries.

Designed for DIN rail, panel, or surface mounting for versatile installation. Operates with K type thermocouple input for precise temperature monitoring. LED display indicates status and supply for easy monitoring. Supports temperatures from -10°C to 50°C operating range.

Offers scale range from 0°C to 400°C suitable for various applications. Built-in relay outputs rated at 5A maximum current for robust control. Compact dimensions with 89mm length, 48mm width, and 74mm panel depth. Certified to CE standards meeting EN61010-1 and EMC directives.
