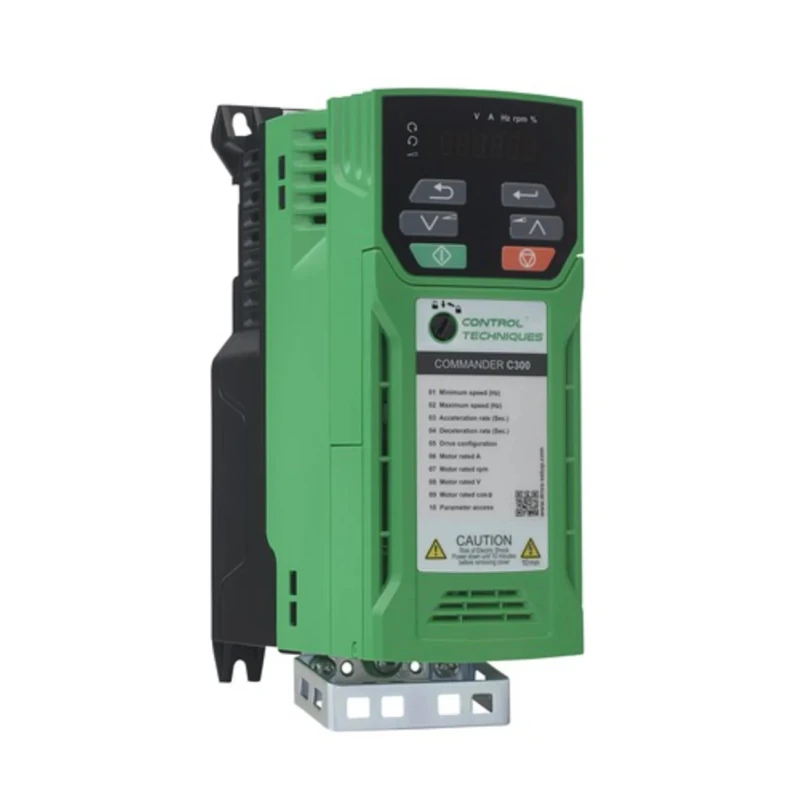

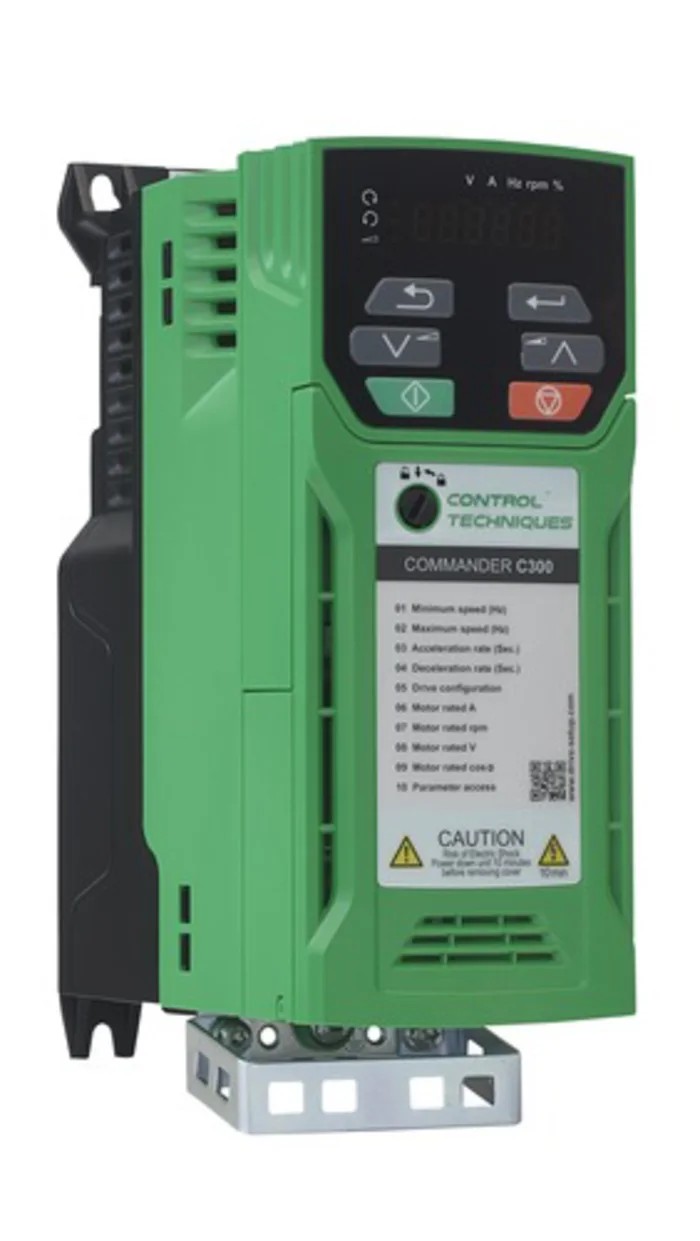

Control Techniques Inverter Drive 1.5 kW 3 Phase Variable Speed Panel Mount C300-02400041
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Control Techniques |
| Model | C300-02400041 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | C300 |
| Overall Width | 150mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 4.1A |
| Standards/Approvals | RCM, RoHS, UL, CE, cUL, EU, ISO |
| Maximum Supply Voltage | 480V |
| Overall Depth | 205mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Compact and simple AC motor speed controller for versatile use.
- Supports advanced features with plug-in options for control enhancement.
- Equipped with Dual Safe Torque Off (STO) for safety compliance.
- Includes latest energy-saving functions to enhance efficiency.
- Capable of up to 180% overload for high torque applications.
- Onboard programmable logic controller (PLC) for automation tasks.
- Easy installation and motor performance control with straightforward commissioning.
- Designed with robust, reliable construction to withstand industrial environments.
Product Description
Control Techniques C300-02400041 inverter drive is a new-generation compact and efficient AC motor speed controller delivering 1.5 kW power at 3 phase operation. This panel-mount variable speed drive is engineered to provide optimum control and user-friendly operation for a wide variety of industrial applications including manufacturing automation, HVAC systems, and process control.
The device supports a wide voltage range from 380V minimum to 480V maximum supply voltage and offers a maximum output current of 4.1 A. It operates reliably within temperature ranges from -20°C to 40°C, ensuring stable performance in demanding environments. With an output frequency capability up to 550 Hz, it facilitates fine speed control over AC motors.
C300 series drives by Control Techniques incorporate energy-saving features and comply with numerous global standards including RCM, RoHS, UL, CE, cUL, EU, and ISO to meet stringent safety and environmental regulations.
For safety, the drive is equipped with Dual Safe Torque Off (STO) function, preventing unintended motor operation during maintenance or faults. Its on-board programmable logic controller adds flexibility for integration into complex automation systems.
The modern design offers a compact form factor with an overall width of 150 mm, length of 75 mm, and depth of 205 mm. Its IP20 rating makes it suitable for panel mounting in control cabinets. Easy setup is achieved by programming just four parameters for rapid commissioning and motor pairing.
Compact, user-friendly panel mount variable speed drive. Advanced energy-saving and high-torque overload handling. Ready for industrial automation with PLC onboard. Wide voltage compatibility and robust environmental tolerance.
Compliant with international safety and quality standards.
This Inverter Drive suits applications across industrial automation, manufacturing, HVAC, and mechanical drive systems, enhancing motor control precision and energy efficiency. Explore our extensive range of Control Techniques drives and accessories at EnvMart to optimize your electrical and automation solutions.
