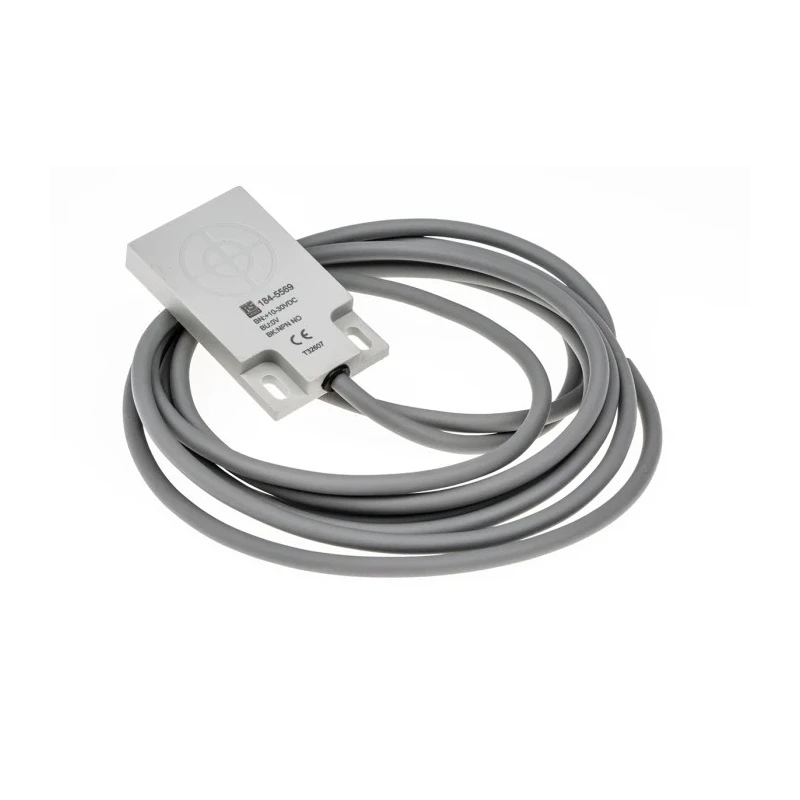

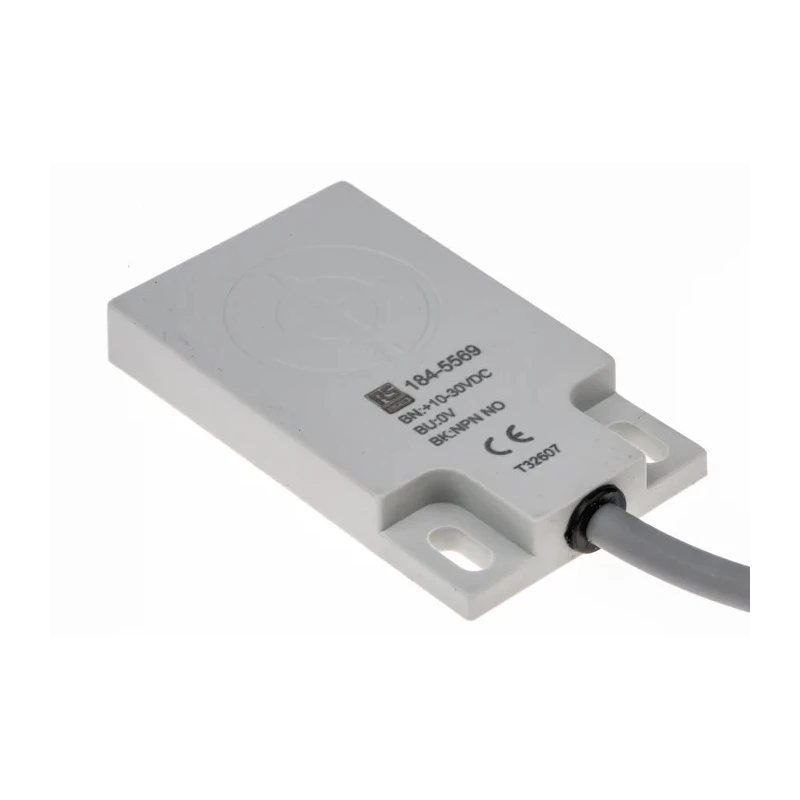

RS PRO Block Capacitive Proximity Sensor 5 mm NPN 15mA 30V 1000V AC 30V DC 184-5569

RS PRO 184-5569 is a block-style Capacitive Proximity Sensor featuring an NPN output configuration with a maximum switching current of 15mA. Designed for flush mounting, this sensor operates reliably within a voltage range of up to 30V DC and 1000V AC, making it suitable for a wide range of industrial and manufacturing applications.

The sensor employs Polybutylene Terephthalate housing material, providing excellent durability and IP67 rating for protection against dust and water ingress, ideal for harsh environments. With its compact form factor of 30 mm length, 50 mm width, and 7 mm depth, it can be easily integrated into automated machinery and control systems.

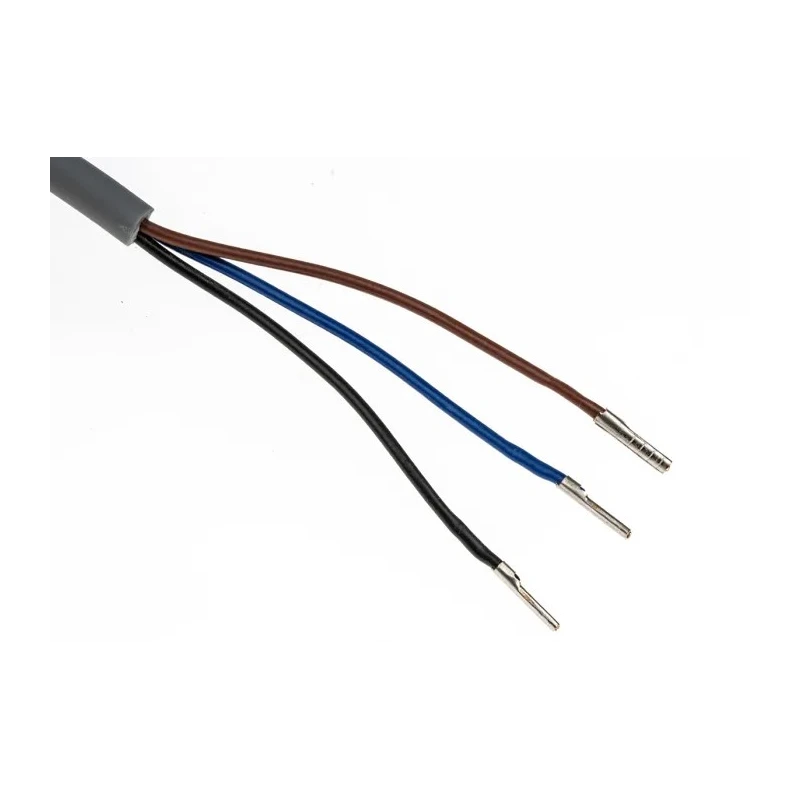

It accurately detects metal and non-metallic objects at a maximum sensing distance of 5 mm. The 2-meter pre-attached PVC cable allows for straightforward electrical connections without additional components. Operating within temperature limits from -10°C to +55°C, this sensor performs reliably across varied industrial conditions.

Capacitive proximity sensing technology allows detection by changes in the electrical field around the sensor face, enabling non-contact measurement of factors like pressure, thickness, and liquid levels in production or laboratory settings.

Typical applications include presence detection, level sensing, and quality control monitoring in manufacturing plants, laboratories, and automated process systems. The sensor offers unshielded operation with a switching frequency up to 60 Hz, ensuring prompt responsiveness to detected objects.

Flush mount design with block body style for easy integration. Pre-cabled terminal type with 2m PVC cable connection for reliable wiring. Maximum detection distance of 5 mm suitable for precise sensing applications. IP67 rated housing made of durable Polybutylene Terephthalate material for harsh environments.

Wide operating temperature range from -10°C to 55°C for varied industrial settings. Supports maximum AC voltage of 1000V AC and DC voltage of 30V DC. Unshielded sensor suitable for detecting both metal and non-metallic objects.

Maximum switching frequency of 60 Hz ensures responsive performance. Compact dimensions: 30 mm length, 50 mm width, and 7 mm depth. Ideal for industrial automation and control gear applications. Explore the RS PRO range for reliable industrial sensors suitable for automation, manufacturing, and control gear solutions at EnvMart.
