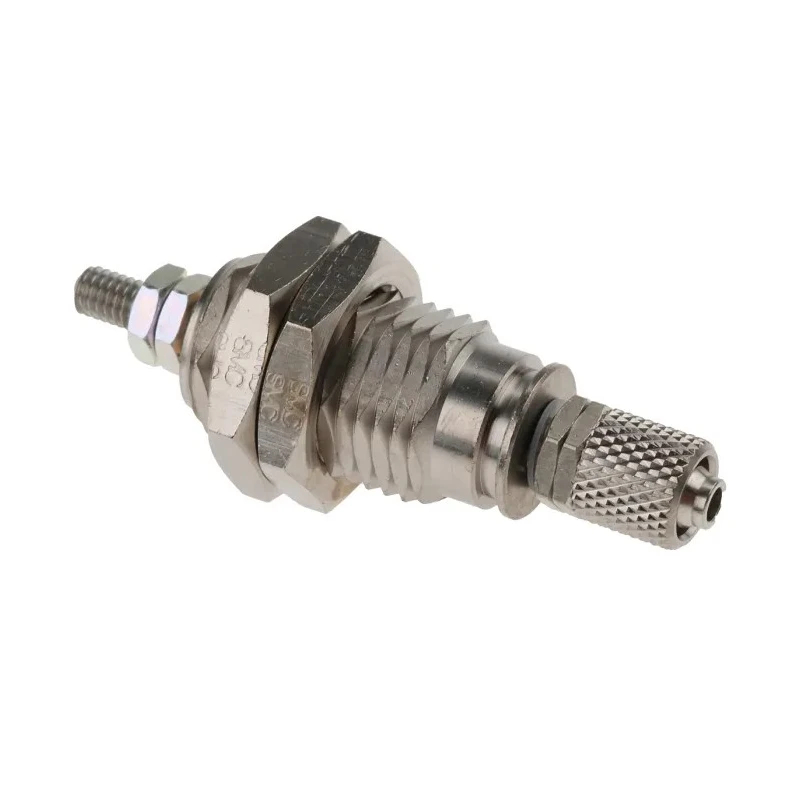

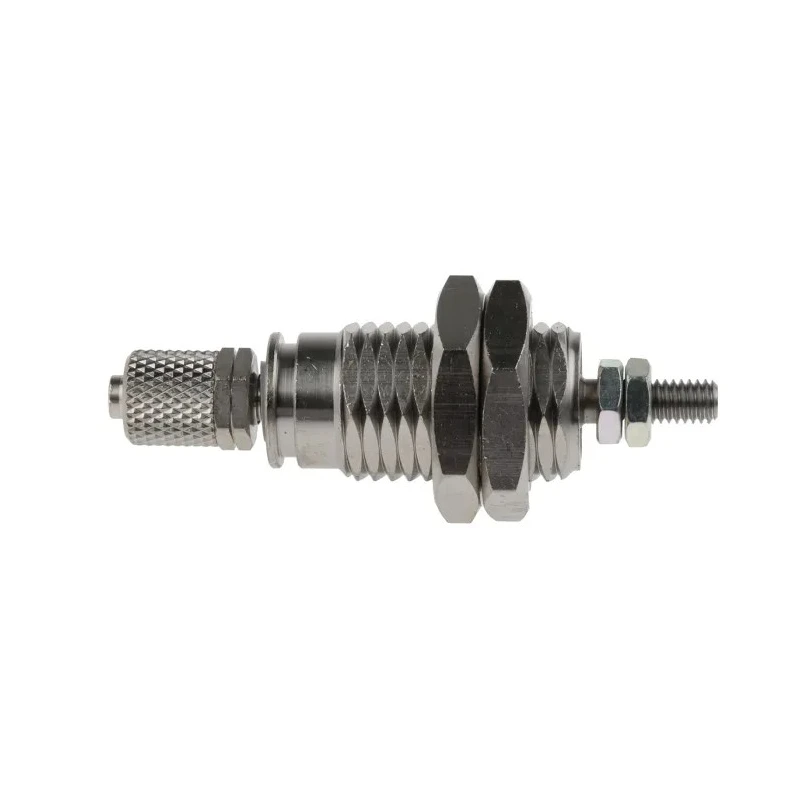

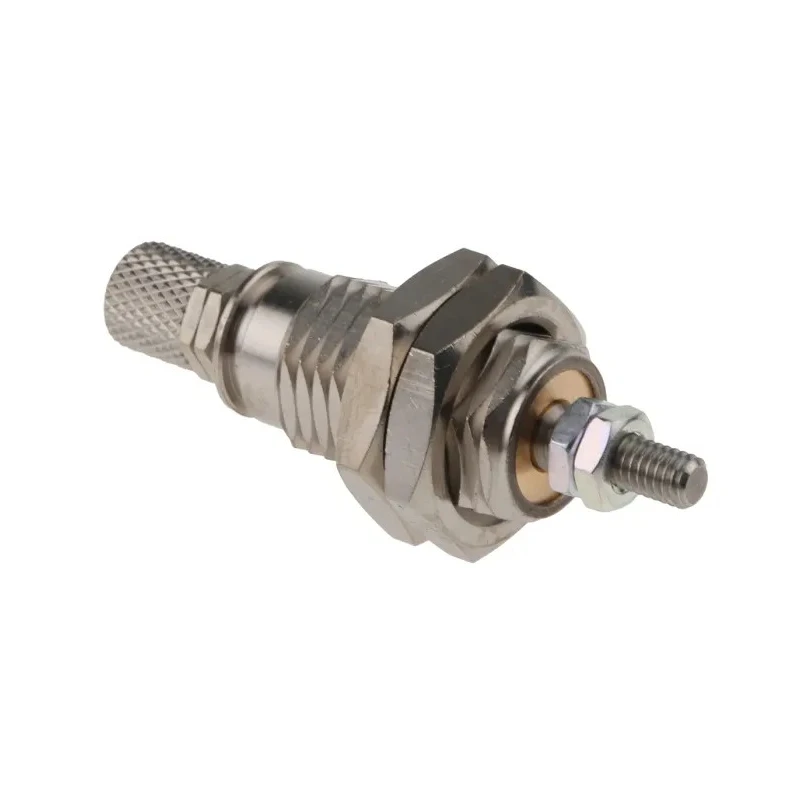

SMC 10 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body CJPB10-10H6Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Brass |
| Length | 39mm |
| Model | CJPB10-10H6Z |
| Mount Type | Panel |
| Series | CJP |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 10mm |
| Rod Type | Spring Return |
| Action Type | Single Acting |
| Piston Rod Thread Standard | Metric |
| Stroke tolerance | +1.0mm |
| SMC 5 mm Pneumatic Piston Rod Cylinder - CJP Series, Single Acting ActingBrand | SMC |
Key Features
- Single acting pneumatic cylinder with spring return for reliable operation.
- 10 mm bore with a 10 mm stroke length suitable for compact applications.
- Panel mount type with brass body providing corrosion resistance.
- Operates at maximum temperature of 70°C with no lubrication required.
- Maximum piston speed of 500 mm/s ensures responsive movement.
- Threaded metric piston rod for standardized fittings.
- Stroke tolerance of +1.0 mm supports precision in actuator extension.
- Designed and manufactured in Japan ensuring high quality standards.
Product Description
SMC CJPB10-10H6Z pneumatic piston rod cylinder is a single acting panel mount cylinder designed for precise fluid power control in industrial and manufacturing environments. Featuring a durable brass body and spring return rod type, it offers a compact length of 39 mm with a 10 mm stroke length. This miniature cylinder is suitable for applications requiring reliable and repeatable actuation with lubrication-free operation up to 70°C.
The cylinder supports a maximum piston speed of 500 mm/s and is designed for metric threaded piston rods, facilitating easy integration into automated systems. Its stroke tolerance of +1.0 mm ensures accurate positioning for assembly, packaging, and automation tasks.
Typical industrial applications include pneumatic actuators in automation equipment, packaging machinery, and material handling systems. The cylinder operates reliably under pressures ranging from 1.5 bar minimum to 7 bar maximum, providing outward and return thrusts at maximum pressure for effective mechanical movement.
The CJP series cylinder requires no lubrication and has a proof pressure rating of 10.5 bar, making it robust for demanding environments. Manufactured in Japan, the product adheres to quality manufacturing standards expected in pneumatic controls.
Single acting type with spring return mechanism for dependable function. Brass body offers corrosion resistance and durability. Panel mount setup for secure installation in machinery. Compact dimensions enable integration where space is limited.
High maximum operating temperature of 70°C for varied industrial settings. Metric piston rod threading for compatibility with standard fittings. No lubrication necessary, reducing maintenance requirements. Stroke tolerance insured for precision actuation.
Choose this Pneumatic Piston Rod Cylinder for your pneumatic automation, manufacturing, or fluid power projects requiring reliability and precision. Browse more pneumatic cylinders and actuator accessories in EnvMart's extensive industrial tools and equipment categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 10 mm.
It operates at a maximum temperature of 70°C.
This model features a panel mount type for secure installation.
The maximum piston speed is 500 mm/s, ensuring responsive movement.
The body of this cylinder is made of brass, providing corrosion resistance.
It operates under pressures ranging from 1.5 bar minimum to 7 bar maximum.
The length of this model is 39 mm.
No, this cylinder requires no lubrication, reducing maintenance needs.
The stroke tolerance is +1.0 mm, ensuring precision in actuator extension.
This model features a single acting action type with a spring return mechanism.
The piston rod is designed with a metric threading standard for compatibility with standard fittings.
This pneumatic cylinder is manufactured in Japan, adhering to high quality standards.
