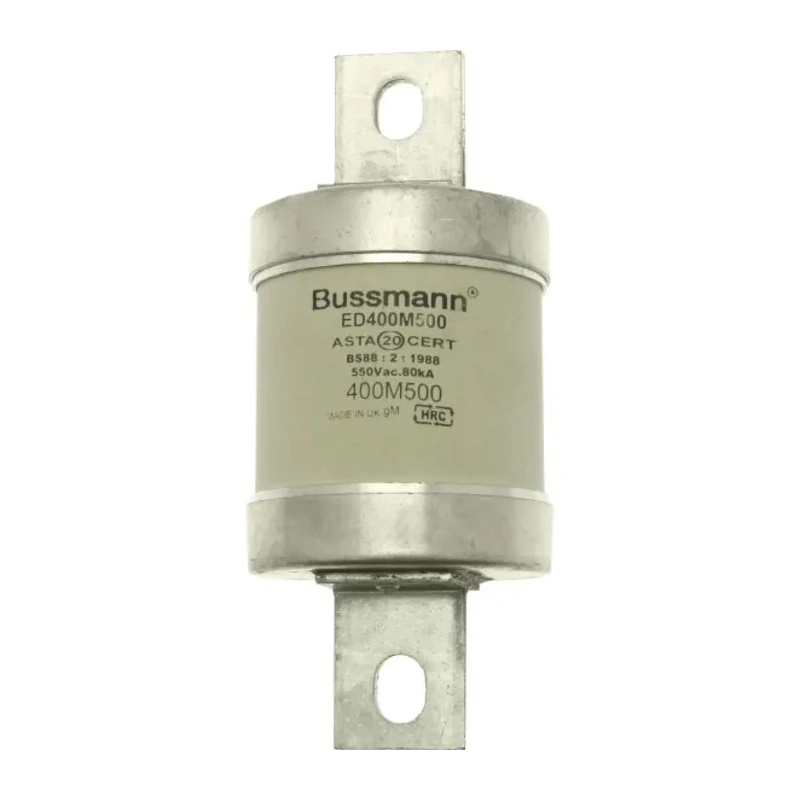

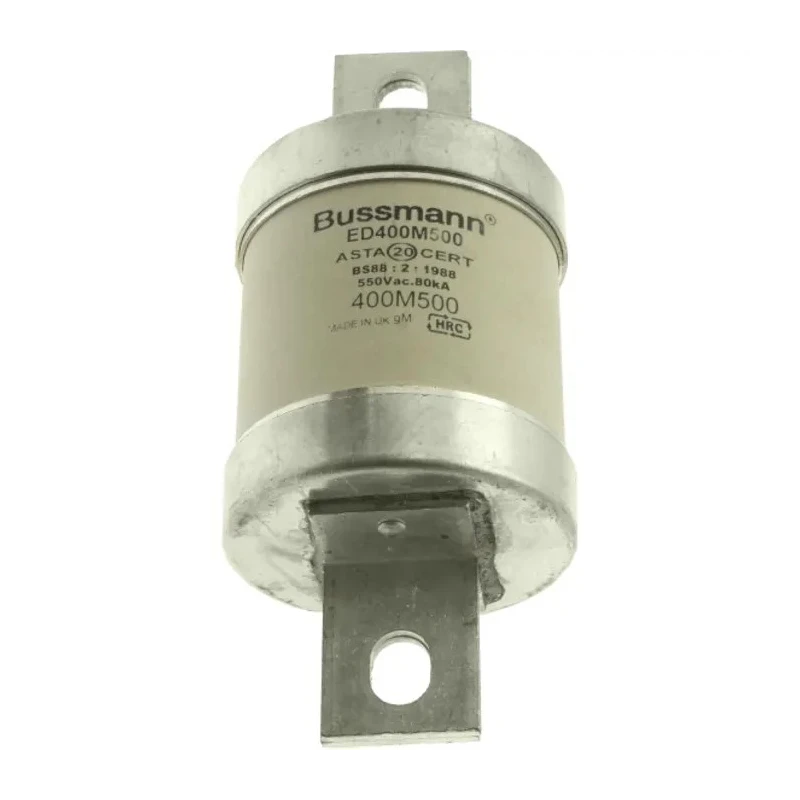

Eaton 500A Bolted Tag Fuse B3/B4 550V AC High Rupture Capacity Tag Fuse ED Series ED400M500

Eaton ED400M500 bolted tag fuse is a high-performance electrical fuse designed for protection in low voltage AC circuits, rated at 500 amperes and 550 volts AC. This fuse belongs to Eaton's ED series, recognized for robust construction and high rupture capacity ensuring excellent interruption capabilities during electrical faults.

The fuse size is B3/B4 and it features fixing centres of 114 mm with a tag width of 25.4 mm, allowing for straightforward and secure mounting. Its centred tag orientation balances mechanical installation forces effectively. The physical dimensions are precisely engineered, with an overall length of 136 mm, length of 75 mm, and height, diameter, and width all measuring 59 mm, to fit standard fuse holders and switchgear.

Designed to provide both cable protection with gG fuse characteristics and motor protection with gM fuse characteristics, this bolted tag fuse is ideal for applications requiring selective coordination and limitation of peak let-through current at a ratio of 1:1:6 between minor and major fuses.

Compliant with RoHS and CE standards, Eaton ensures this fuse meets stringent environmental and safety requirements. It is manufactured in Hungary under strict quality control.

This bolted tag fuse is suitable for electrical distribution, industrial automation, electrical panels, and motor control centers within industrial, commercial, and manufacturing environments.

This bolted Tag Fuse features a high rupture capacity ensuring safety during electrical faults. It has fixing centres of 114 mm and a tag width of 25.4 mm for secure installation. The tag orientation is centred, providing balanced mechanical support.

Dimensions include an overall length of 136 mm, a length of 75 mm, and a height and diameter both of 59 mm. Part of Eaton’s ED series, the fuse supports selective coordination ratio with good peak let-through current limitation.

Approved to RoHS and CE standards, guaranteeing compliance and quality. Suitable for cable protection with gG characteristics and motor protection applications with gM characteristics. Manufactured in Hungary, maintaining high production standards.

Explore the Eaton fuse range and other Eaton electrical protection products on EnvMart for reliable industrial circuit protection solutions.
