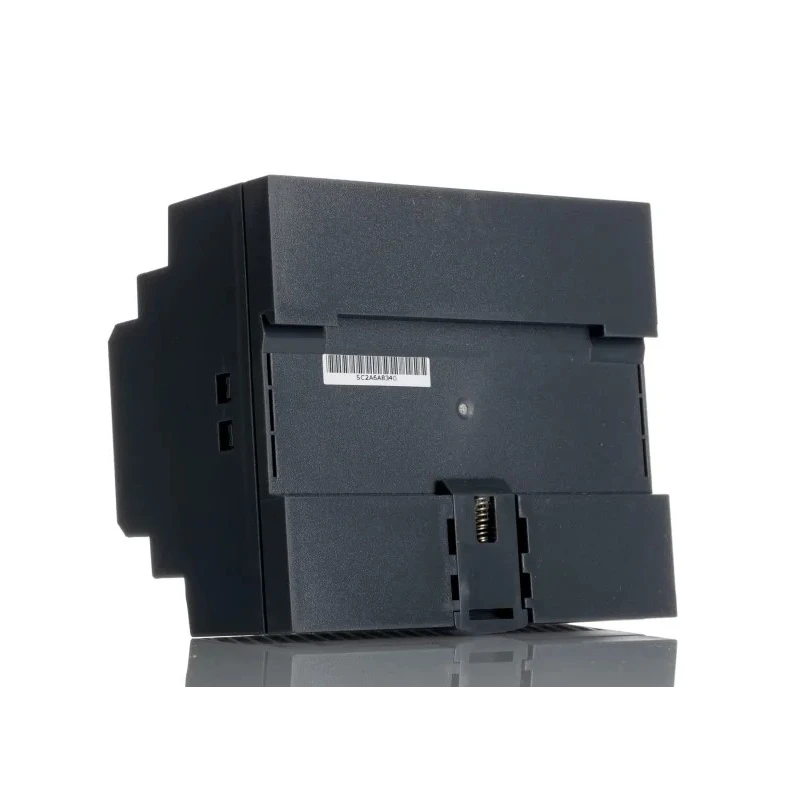

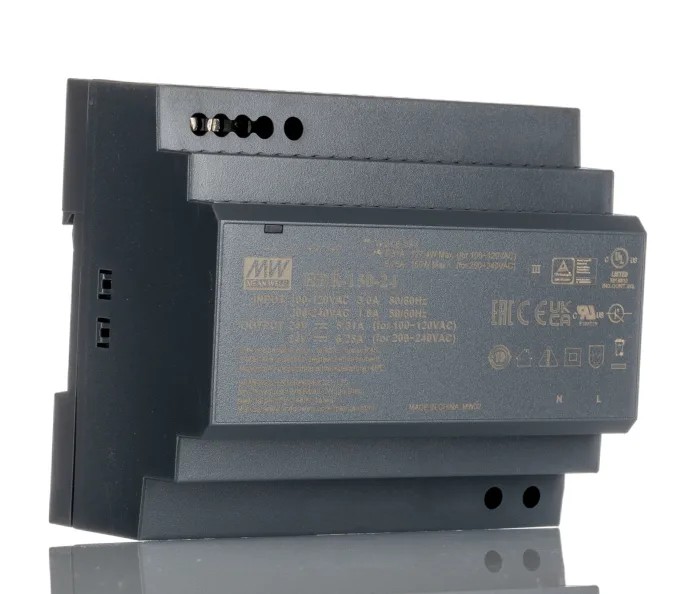

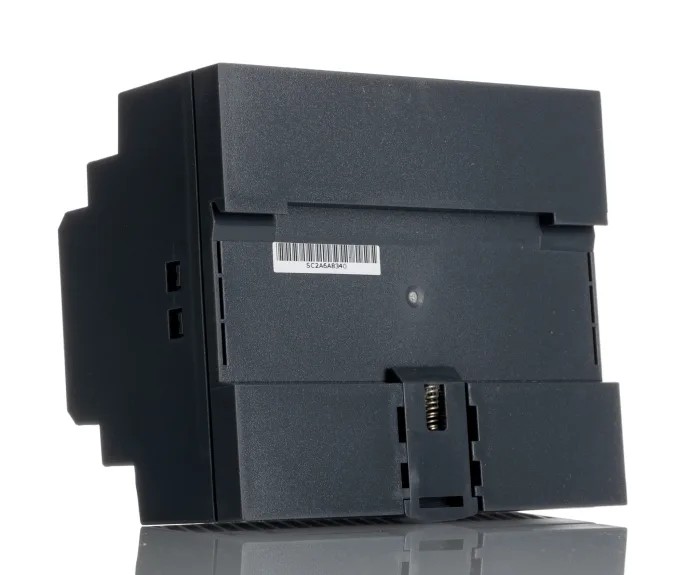

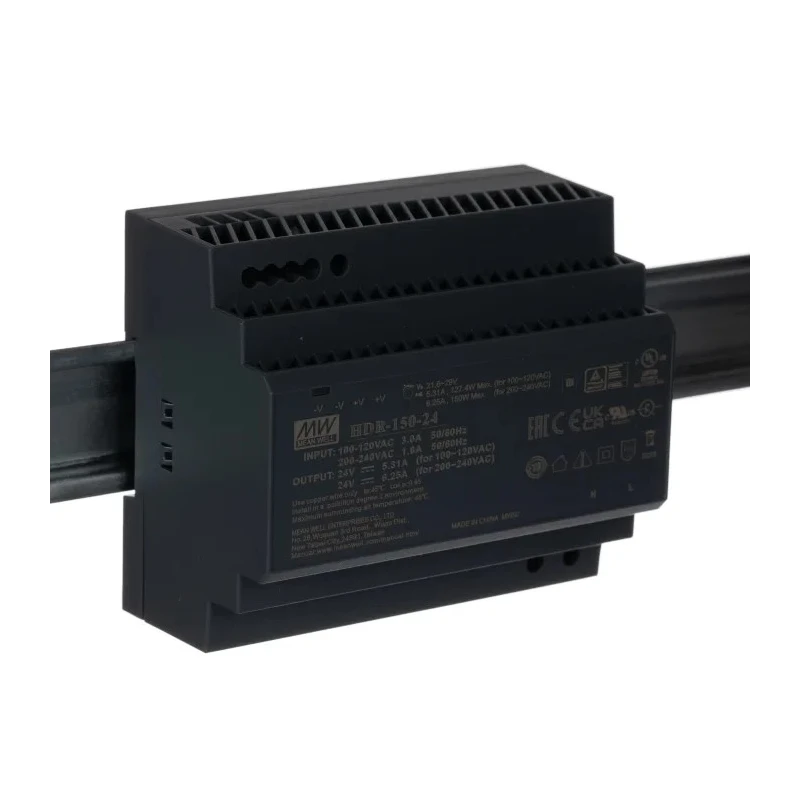

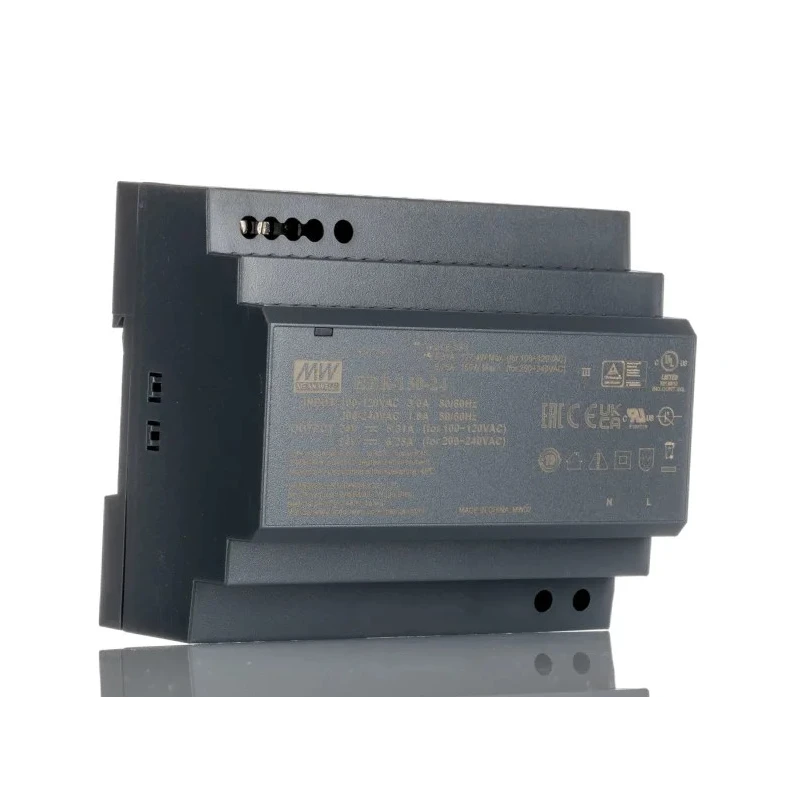

MEAN WELL HDR Switched Mode DIN Rail Power Supply 24 V DC, 6.25 A Output, 150 W HDR-150-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 150W |
| Efficiency | 90.5% |
| Height | 90mm |
| Model | HDR-150-24 |
| Depth | 55mm |
| Width | 105mm |
| Series | HDR |
| Output Current | 6.25A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC/DC input voltage range from 85 VAC to 264 VAC and up to 370 V DC.
- High efficiency up to 90.5% reduces energy losses.
- Compact and ultra-slim design with 105 mm width for space-saving installation.
- Adjustable output voltage range of 21.6 V DC to 29 V DC.
- Supports operation temperature from -30°C up to 70°C for harsh environments.
- Includes protections against short circuit, overload, and overvoltage.
- Equipped with LED indicator for power ON status.
- Low no-load power consumption below 0.3 W to increase energy efficiency.
Product Description
MEAN WELL HDR-150-24 is a switched mode DIN rail power supply designed for reliable and efficient industrial power delivery. It accepts a universal input voltage spanning from 85 VAC to 264 VAC and 120 V DC to 370 V DC, enabling versatile application across power systems. The ultra-slim housing, measuring 105 mm width, 90 mm height, and 55 mm depth, enables compact mounting and space optimization inside control cabinets.
This model delivers a regulated 24 V DC output voltage with a maximum continuous output current of 6.25 A and a power capacity of 150 W. The output voltage is adjustable between 21.6 V DC and 29 V DC to match specific system load requirements. Efficiency is rated at 90.5%, ensuring lower heat generation and reduced operational costs.
Designed with industrial-grade safety, the power supply features protection against short circuits, overloads, and overvoltage conditions, enhancing system reliability. The unit is cooled via free air convection, eliminating moving parts and reducing maintenance.
The operating temperature range of -30°C to 70°C allows deployment in challenging environments, including building automation, electro-mechanical apparatus, factory automation, household control, and other industrial control systems. The plastic enclosure provides insulation and electric hazard prevention for safe use.
This power supply meets stringent international standards including CB IEC 62368-1, CE, cRUus UL62368-1, EN61000 electromagnetic compatibility tests, and more. It indicates power status with an LED indicator and consumes less than 0.3 W power under no-load conditions, optimizing overall energy usage.
Universal AC/DC input voltage with wide range flexibility. Compact DIN rail mount with slim profile for cabinet installation. Adjustable stable output voltage with efficient power delivery. Industrial safety features including short circuit and overload protections.
Suitable for diverse industrial and automation applications. Explore the MEAN WELL power supplies category on EnvMart for more industrial-grade power solutions offering robust performance and compliance.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is adjustable between 21.6 V DC and 29 V DC.
The unit has a width of 105 mm, a height of 90 mm, and a depth of 55 mm.
The efficiency of this model is rated at 90.5%, which helps reduce energy losses.
It operates effectively in temperatures ranging from -30°C to 70°C.
This model includes protections against short circuits, overloads, and overvoltage conditions.
It is cooled via free air convection, which eliminates the need for moving parts and reduces maintenance.
It meets international standards including CB IEC 62368-1, CE, cRUus UL62368-1, and EN61000 for electromagnetic compatibility.
This power supply is designed for DIN rail mounting, allowing for compact installation in control cabinets.
The HDR-150-24 has a no-load power consumption of less than 0.3 W, enhancing energy efficiency.
This power supply has one output.
