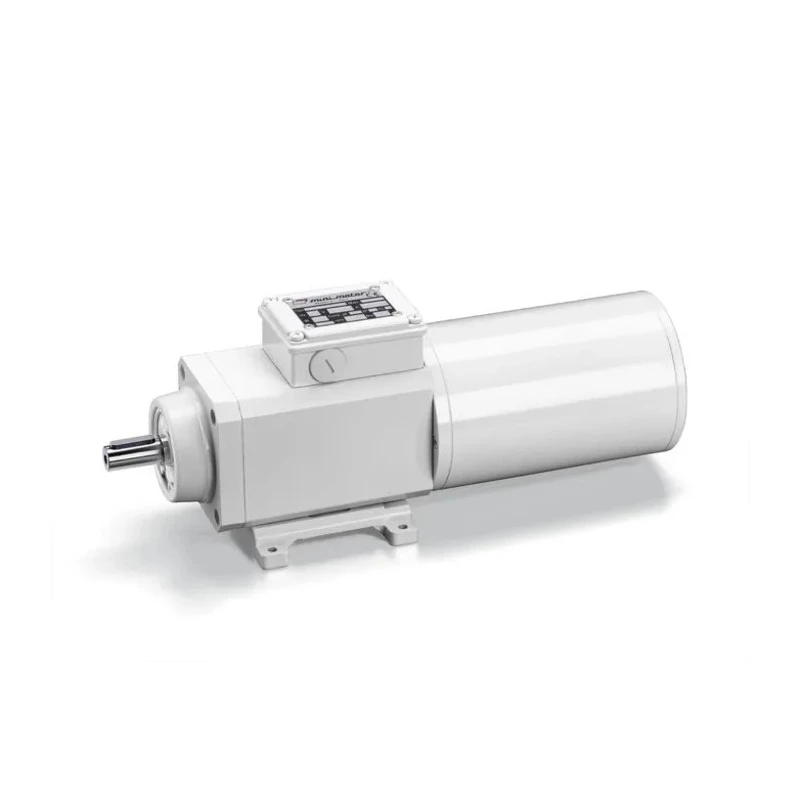

Mini Motor Helical AC Geared Motor 130 W, 3 Phase, 2-Pole, 230V/400V, Flange and Foot Mounting PAF4T2
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Mini Motor |
| Material | Steel, Aluminium |
| Length | 314.5mm |
| Model | PAF4T2 |
| Depth | 126.4mm |
| Width | 100mm |
| Motor | Three-phase 2-pole asynchronous motor, totally enclosed. Built-in thermal cutoff. Winding Class H. Protection IP67 in compliance with IEC/EN 60929 standards |
| Mount Type | Flange, Foot |
| Current Rating | 380mA |
| Series | PAF4T2 |
| Power Rating | 130W |
| Sub Type | Geared |
| Output Speed | 197rpm |
| Shaft Diameter | 14mm |
| Shaft Length | 30mm |
| Number of Phases | 3 |
| Supply Voltage | 230, 400V |
| Bearing Type | Roller |
| Number of Poles | 2 |
| Standards/Approvals | RoHS, IEC/EN 60929 |
| Maximum Output Torque | 6nm |
| Gearhead Type | Helical |
| USA | Inline Helical Geared Motor. Single-phase and three-phase motor 1/5.6 HP |
| EN | Inline Helical Geared Motor. 130 W three-phase motor |
| GEAR UNIT | Coaxial with die-cast aluminium gearcase. Hardened and tempered gears with their shafts rotating on roller bearings. Seal rings in special high-temperature rubber (FKM). Lubrication with special long-lasting oil for use with foodstuffs (H1) |
Key Features
- Provides a power rating of 130 W for efficient operation.
- Operates on 3 phases with 230V and 400V supply voltages.
- Sporting a helical gearhead for reliable torque transmission.
- Equipped with flange and foot mounting for versatile installation.
- Has a maximum output torque of 6 Nm for demanding tasks.
- Rated output speed of 197 rpm to suit mechanical requirements.
- Built with steel and aluminium materials for durability and strength.
- Complies with RoHS and IEC/EN 60929 standards ensuring quality and safety.
Product Description
Mini Motor PAF4T2 Helical AC Geared Motor is a robust 130 W three-phase, 2-pole asynchronous motor designed for industrial and automation use. It operates on 230V and 400V supply voltages and features an inline helical gear unit ideal for precision torque delivery.
The motor is totally enclosed with built-in thermal cutoff and winding class H, ensuring high reliability and protection. Its IP67 rating fulfills IEC/EN 60929 standards to prevent ingress of dust and water, making it suitable for harsh environments.
The gear unit consists of coaxial die-cast aluminium gearcase with hardened, tempered gears rotating on roller bearings, sealed with high-temperature FKM rubber rings. Lubricated with long-lasting food-compliant oil (H1), this motor suits applications requiring hygiene standards as well.
Mounting versatility is ensured with flange and foot fittings. The shaft diameter is 14 mm with a length of 30 mm. Overall motor dimensions are length 314.5 mm, depth 126.4 mm, and width 100 mm.
This product is ideal for industrial machinery requiring reliable, efficient power transmission with robust build and compliances. Applications include automation, manufacturing, material handling, and HVAC systems.
Power rating of 130 W provides efficient operation for medium load applications. Three-phase 2-pole motor design offers stable and smooth performance. Helical gearhead enables durable and precise torque control. Flange and foot mount types allow flexible installation options.
Steel and aluminium construction enhance mechanical strength and heat dissipation. Protection rating IP67 meets standards for dust and water resistance. Roller bearings contribute to low friction and extended service life.
Compliant with RoHS and IEC/EN 60929 standards for safety and environmental norms.
Choose Mini Motor PAF4T2 for demanding industrial tasks needing high quality, versatile, and reliable geared motor solutions. Explore more AC geared motors in the Motors & Pumps category on EnvMart.
Explore more products in our Gear Motors category.
