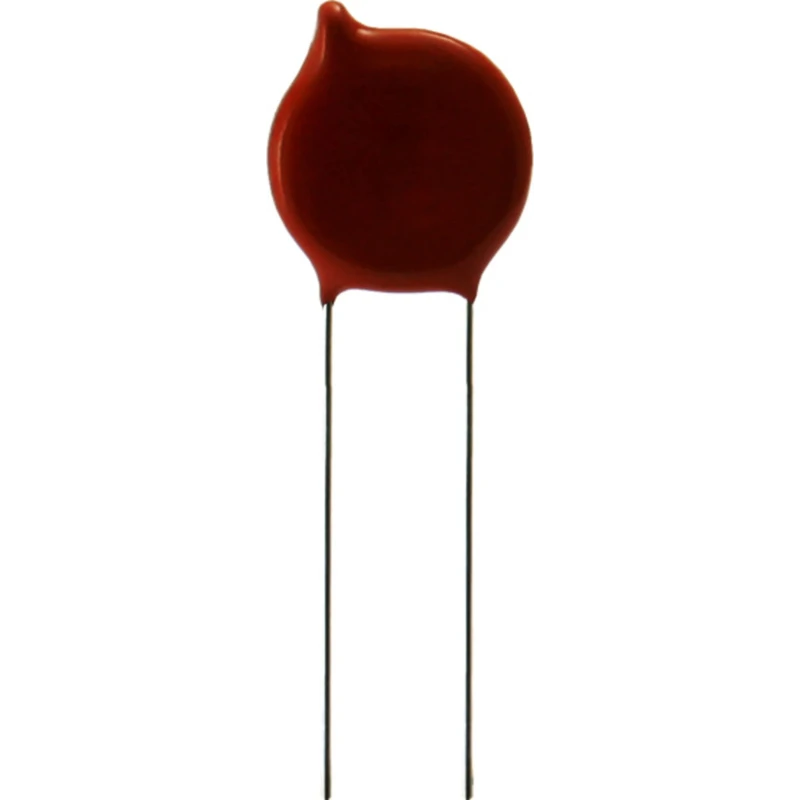

Vishay Single Layer Ceramic Capacitor 470 pF 3kV dc ±20 % X5S Dielectric Through Hole Disc Radial Terminal 105°C 564R30GAT47
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 3kV dc |
| Diameter | 8.4mm |
| Brand | Vishay |
| Model | 564R30GAT47 |
| Packaging | Bulk |
| Width | 4.4mm |
| Mount Type | Through Hole |
| Series | 564R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 470pF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Radial |
| Dissipation Factor | 2% |
| Standards/Approvals | RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | X5S |
| Suppression Class | Class II |
Key Features
- Designed for through hole mounting with radial terminal type.
- Disc package with 2-pin configuration for reliable circuit connection.
- Operates at maximum temperature of 105 °C and minimum temperature of -25 °C.
- Rated for 3 kV DC voltage with 2% dissipation factor ensuring low energy loss.
- Comprised of Class II suppression dielectric material X5S for medium stability.
- RoHS compliant ensuring environmentally safe manufacturing standards.
- Compact dimensions with 8.4 mm diameter and 4.4 mm width for space sensitive applications.
- Commonly applied in lighting ballasts, SMPS, and DC/high voltage pulse circuits.
Product Description
Vishay 564R30GAT47 Single Layer Ceramic Capacitor is a high voltage 470 pF capacitor designed with X5S dielectric material. It offers ±20 % capacitance tolerance and is optimized for through hole mounting using radial terminals in a disc package form factor.
This capacitor withstands a maximum DC voltage of 3 kV and operates reliably between -25 °C and 105 °C, making it suitable for industrial, electronic, and lighting ballast applications. Its 2% dissipation factor signifies low dielectric losses, which improves efficiency in high-frequency power supply modules and pulse circuits.
The component features a compact 8.4 mm diameter and 4.4 mm width, facilitating installation in space-constrained PCB layouts. As a Class II suppression capacitor, it balances capacitance stability and size, ideal for moderate environmental conditions.
Its durable disc-shaped design and radial lead pins make it suitable for a range of electronic equipment requiring high-voltage DC suppression. Designed for through hole mounting with radial terminals. X5S dielectric provides medium stability under temperature variations.
Supports high voltage up to 3 kV DC. Compact disc package with dimensions 8.4 mm diameter and 4.4 mm width. Maximum operating temperature of 105 °C ensures reliable use in demanding conditions. Low energy loss with 2% dissipation factor.
Compliant with RoHS environmental standards. Applications include lighting ballasts, switch mode power supplies, and pulse high voltage circuits. Explore more Vishay capacitors and related electronic components at EnvMart for trusted industrial quality and performance.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay Single Layer Ceramic Capacitor has a capacitance value of 470 pF.
It is rated for a maximum DC voltage of 3 kV.
This model operates reliably between -25 °C and 105 °C.
It utilizes X5S dielectric material, which provides medium stability under temperature variations.
The capacitor has a diameter of 8.4 mm and a width of 4.4 mm.
It is designed for through hole mounting with radial terminals.
The capacitance tolerance is ±20 %.
It has a dissipation factor of 2%, indicating low energy loss.
Common applications include lighting ballasts, switch mode power supplies (SMPS), and high voltage pulse circuits.
This model is available in bulk packaging.
Yes, it is RoHS compliant, ensuring environmentally safe manufacturing standards.
The capacitor features a pin count of 2.
