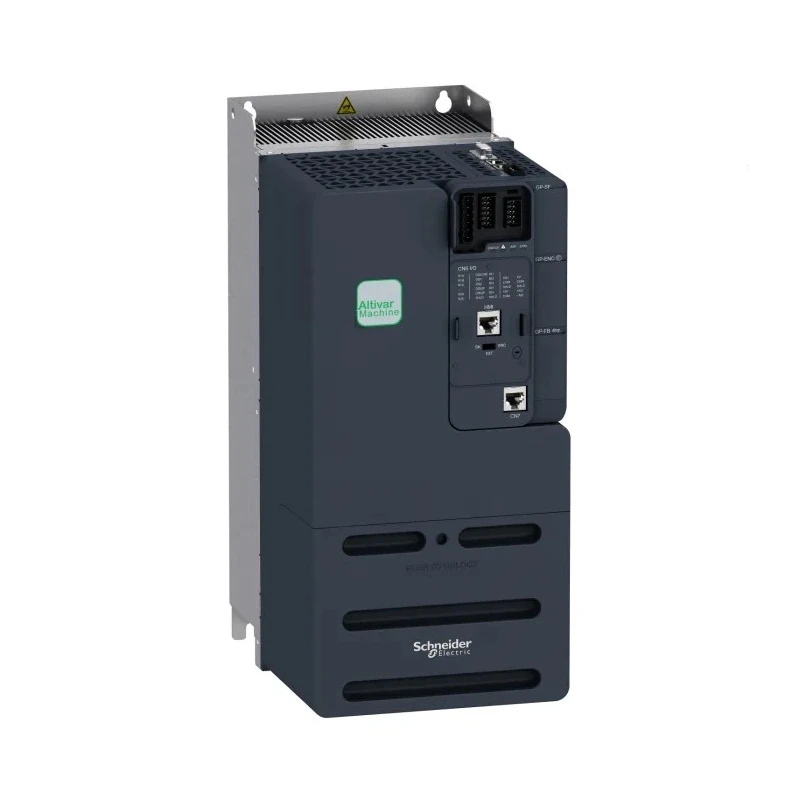

Schneider Electric Inverter Drive, 15 kW, 3 Phase, Altivar Series, 480V, 44.9 A ATV340D15N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340D15N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 180mm |
| Series | Altivar |
| Overall Width | 249mm |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 44.9A |
| Standards/Approvals | EAN, UL, REACH, IEC, EAC, CSA, TUV, C-Tick, RoHS, CE |
| Maximum Supply Voltage | 480V |
| Overall Depth | 385mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Reluctance Motor, Permanent Magnet Motor |
Key Features
- Supports synchronous and asynchronous 3-phase motors with variable speed control.
- Rated for continuous operation at up to 15 kW and 44.9 A maximum output current.
- Compact design with IP20 protection suitable for cabinet mounting.
- Operates reliably in temperatures up to 50°C, with high temperature resistance up to 60°C.
- Integrates Modbus serial and optional Ethernet communication protocols.
- Conforms to international safety and EMC standards including IEC and UL.
- Embedded functional safety STO and master/slave control functions included.
- Weighs approximately 9.5 kg and designed for vertical panel mounting.
Product Description
Schneider Electric ATV340D15N4 is a high-performance inverter drive designed to control 3-phase synchronous and asynchronous motors with variable speed functionality. It delivers up to 15 kW (20 hp) of power with a rated voltage range from 380 V to 480 V AC and a maximum output current of 44.9 A. This Altivar 340 series drive is engineered for heavy-duty industrial environments, offering robust resistance to vibration, shock, and dust, with operating temperature capabilities up to 60°C.
This inverter drive features Modbus serial communication protocols as standard and optional embedded Ethernet communication, enhancing connectivity for automation systems. It supports master/slave functions for precise speed and torque control, and includes programmable safe torque off (STO) features that ensure functional safety compliance.
The device is compact, with dimensions of 180 mm length, 249 mm width, and 385 mm depth, and it weighs 9.5 kg. It is designed for vertical mounting in control panels, supported by four fixing holes, and has an IP20 ingress protection rating.
ATV340D15N4 is certified for standards including UL, CSA, TUV, CE, IEC, and REACH, ensuring compliance with international quality and safety regulations. Its built-in features cater to a range of industrial applications such as packaging machinery, material handling systems, hoisting equipment, and manufacturing process controls.
Supports synchronous and asynchronous 3-phase motors with variable speed control. Compact dimensions and rugged design for harsh industrial environments. Embedded Modbus and optional Ethernet communication protocols. Certified to multiple global standards and certified for functional safety.
Operating temperature range 0°C to 50°C standard, with extended high temperature resistance. Includes advanced control features like master/slave speed and torque control. Designed for vertical panel mounting with IP20 protection.
Weighs approximately 9.5 kg for ease of installation. Ideal for packaging, material handling, hoisting, and similar industrial applications. EcoStruxure Machine compatible with SoMachine and SoMove configuration software.
This Schneider Electric Inverter Drive is part of the Altivar Machine family, known for sustainable productivity and energy-saving features. It is fully integrated within Schneider Electric’s EcoStruxure platform, enabling seamless control and diagnostics.
Explore more advanced automation and control gear solutions at EnvMart for enhanced machine performance and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340D15N4 inverter drive has a power rating of 15 kW.
This model has a maximum output current of 44.9 A.
The standard operating temperature range is from 0°C to 50°C, with high temperature resistance up to 60°C.
It supports synchronous and asynchronous 3-phase motors, including reluctance and permanent magnet motors.
The inverter drive features Modbus serial communication protocols as standard and offers an optional Ethernet communication interface.
The dimensions are 180 mm in length, 249 mm in width, and 385 mm in depth.
This inverter drive has an IP20 ingress protection rating.
It is designed for vertical panel mounting and includes four fixing holes for installation.
It conforms to multiple standards including UL, CSA, TUV, CE, IEC, and REACH.
The output frequency range is from 0.1 to 599 Hz.
It weighs approximately 9.5 kg.
It is suitable for various industrial applications such as packaging machinery, material handling systems, and hoisting equipment.
