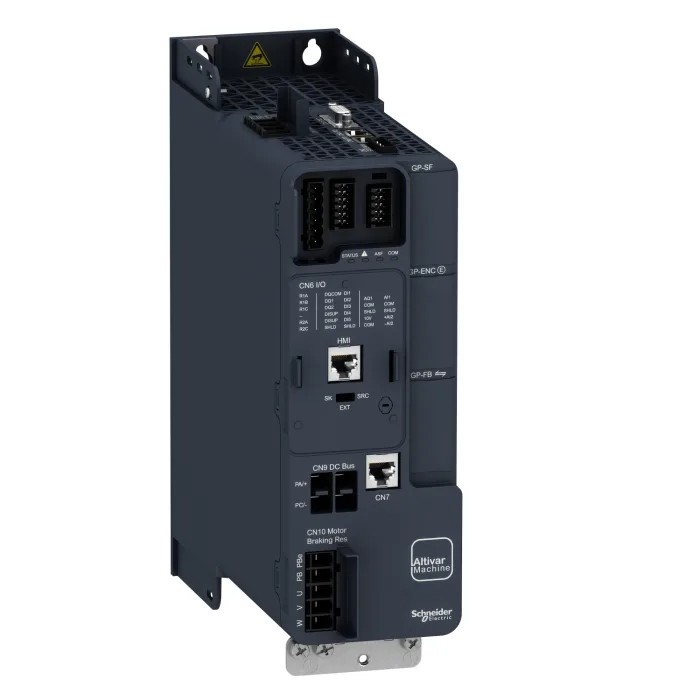

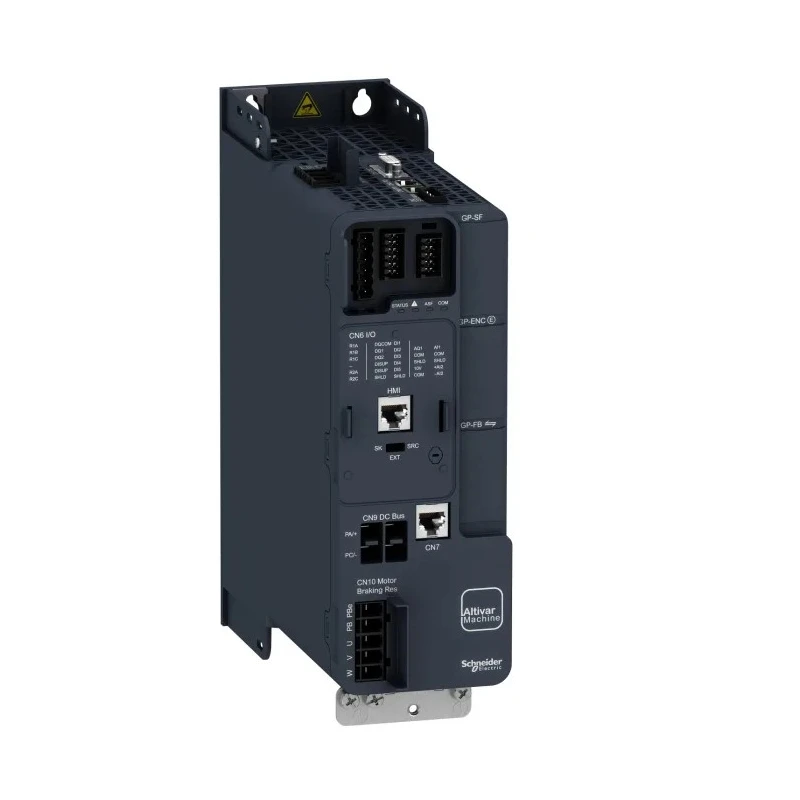

Schneider Electric Altivar Series Inverter Drive, 4 kW, 3 Phase, 380-480V, 9 A, Variable Speed Drive ATV340U40N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U40N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 85mm |
| Series | Altivar |
| Overall Width | 232.5mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 9A |
| Standards/Approvals | EAN, TUV, RoHS, CSA, C-Tick, UL, CE, IEC, REACH, EAC |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Operates at voltages from 380 V to 480 V AC with a maximum output current of 9 A.
- Supports output frequency ranging from 0.1 Hz up to 599 Hz for precision motor control.
- Robust cabinet mount design with IP20 rating suitable for harsh environments.
- Compact dimensions of 85 mm width, 232.5 mm depth, and 270 mm height for easy installation.
- Rated to operate within 0°C to 50°C ambient temperatures for reliable performance.
- Includes Modbus serial communication and optional Ethernet interface for advanced connectivity.
- Complies with international safety and electromagnetic compatibility standards including CE, UL, CSA, TUV, and IEC certifications.
- Embedded functional safety STO and master/slave functions enhance machine productivity and safety.
Product Description
Schneider Electric ATV340U40N4 Altivar Series inverter drive is engineered for high performance variable speed control of 3-phase synchronous and asynchronous motors including permanent magnet and reluctance types. Providing 4 kW (5 hp) power output and operating voltage range of 380 V to 480 V AC, this variable speed drive is suitable for demanding industrial applications requiring reliable motor speed and torque management.
The drive supports a wide output frequency from 0.1 Hz to 599 Hz, allowing precise control for packaging, material handling, hoisting, and material working equipment. Its compact cabinet mount design with IP20 ingress protection ensures durability in harsh environments characterized by vibration, shock, dust, and temperatures up to 50°C.
Schneider Electric ATV340 incorporates advanced communication protocols, including built-in Modbus serial line and optional embedded Ethernet capabilities, facilitating seamless integration with machine automation systems and EcoStruxure Machine architecture. The drive includes embedded functional safety STO for safe torque off and master/slave synchronization for multi-drive coordination.
Designed to comply with international standards such as IEC/EN 61800-5-1, IEC/EN 61800-3 for EMC, IEC 61508, IEC 60721-3, and certified to CE, UL, CSA, TUV, and more, this inverter drive guarantees safety, reliability, and regulatory compliance. Accessories including encoder interface modules, I/O expansion modules, line chokes, braking resistors, and additional EMC filters are available depending on application needs.
With dimensions measuring 85 mm (width) x 270 mm (height) x 232.5 mm (depth) and a weight of approximately 2.2 kg, the ATV340U40N4 is designed for vertical panel mounting with flexible installation options. It provides constant torque rated operation with overload capacity of 150% for 60 seconds, supporting demanding industrial cycles.
Use cases for this inverter drive span industrial automation, manufacturing, HVAC systems, water treatment facilities, and agricultural machinery requiring precise and energy-efficient motor control. Its design focuses on sustainability and energy savings, aligning with Schneider Electric’s Better World initiative.
Explore Schneider Electric inverter drives like ATV340U40N4 for enhanced machine automation and reliable motor control within demanding industrial environments. See product listings in the Automation & Control Gear category at EnvMart for more options suited to your application requirements.
