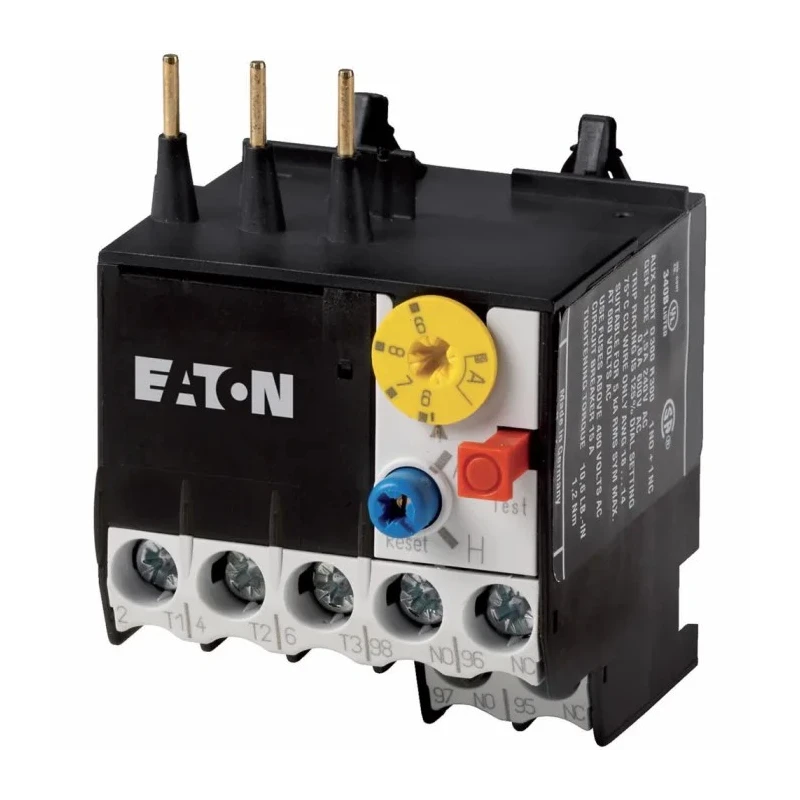

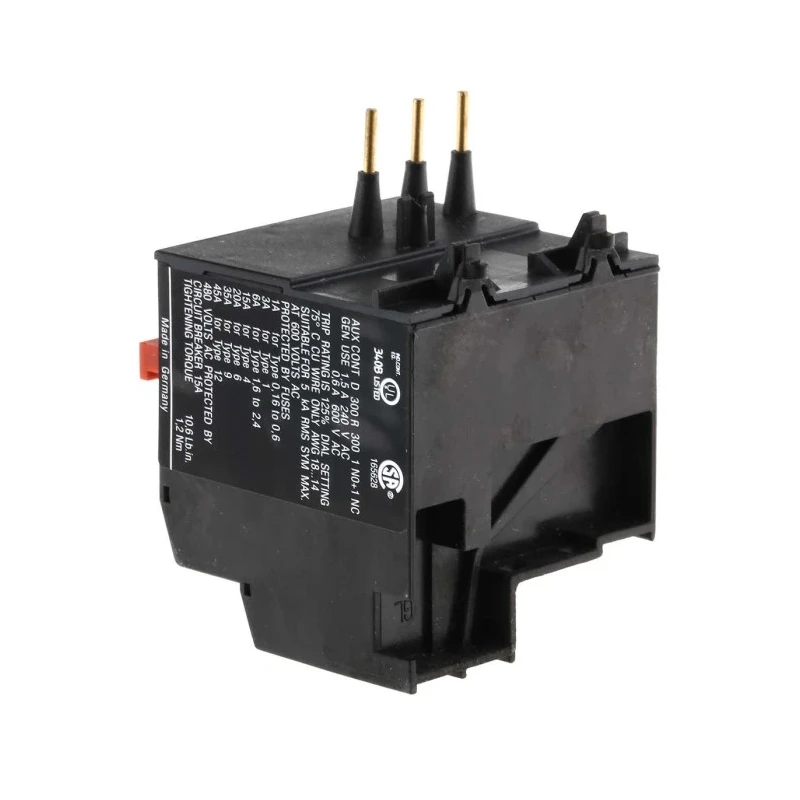

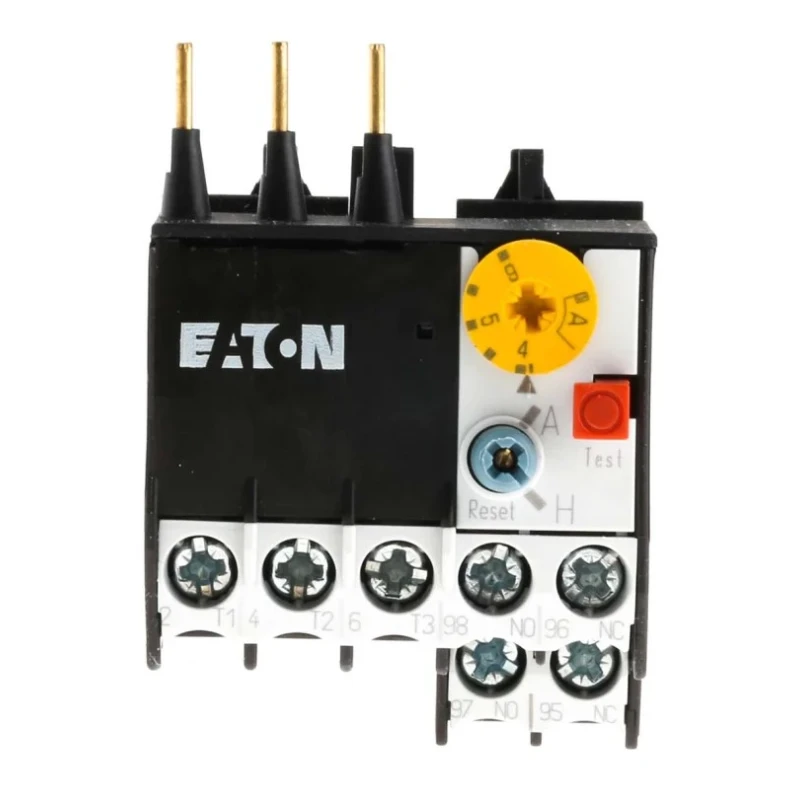

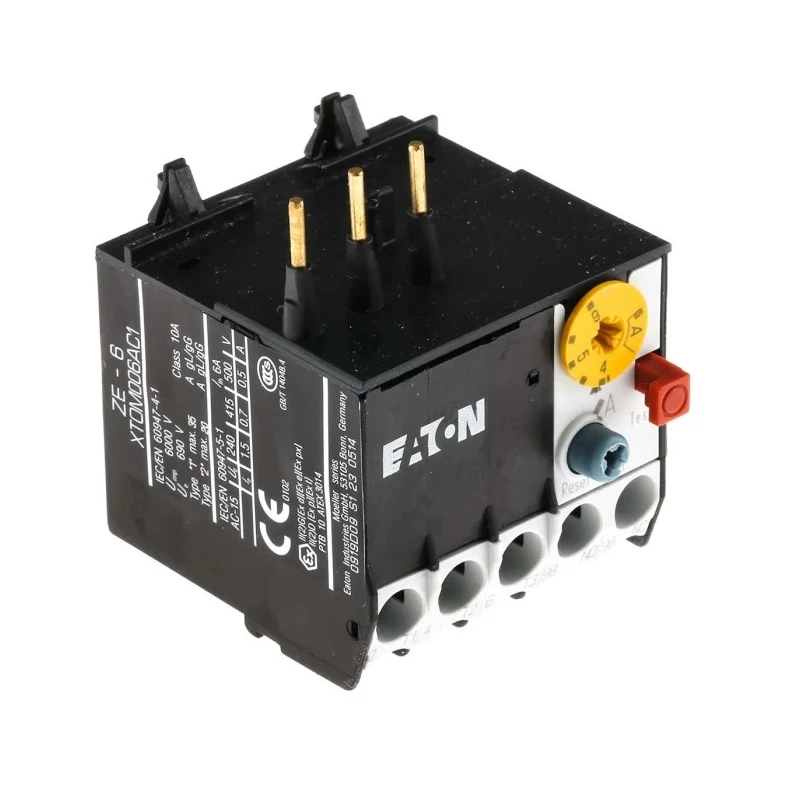

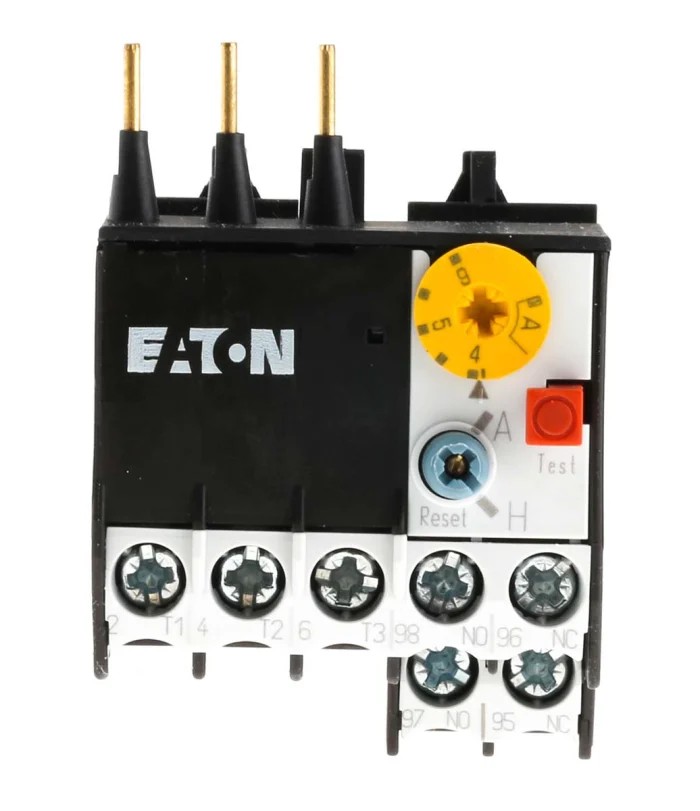

Eaton ZE Overload Relay 1 NO/1 NC, 4A-6A F.L.C, 6A Contact Rating, 6 W Power, 600V AC Control Voltage 014565 ZE-6

Eaton 014565 ZE-6 Overload Relay is a high-quality protective device designed to safeguard electric motors against overload conditions by monitoring the motor current and breaking the circuit in case of an overload or phase failure. It features a bimetallic tripping mechanism which bends under heat generated from excess current, thereby interrupting the circuit between 2 to 10 seconds to prevent damage to the motor.

This overload relay provides a normally open (1 NO) and normally closed (1 NC) auxiliary contact configuration with a full load current (FLC) rating adjustable from 4 to 6 amperes, allowing precise motor protection tailored to the application requirements. The relay offers both automatic and manual reset options for versatility in restarting motors safely.

Constructed compactly with dimensions of 106mm length, 58mm depth, and 45mm width, the relay fits efficiently within electrical control panels. Screw terminals guarantee secure wiring connections, facilitating rapid installation and maintenance.

Designed for demanding industrial environments, the product operates reliably within a temperature range of -5°C to 55°C and has an IP20 protection rating. The control voltage rating of 600 V AC and a contact voltage rating of 690 V AC ensure compatibility with standard motor control systems.

It includes 2 auxiliary contacts to provide extra signaling and switching functions as required. Comprehensive certifications including UL 60947-4-1, IEC/EN 60947, CE, CSA, and VDE 0660 verify conformity to international safety and performance standards.

This Eaton overload relay increases motor longevity by preventing overheating and phase faults and supports applications in industrial automation, manufacturing, and motor control systems where high reliability and safety are critical.

Choose Eaton ZE Overload Relays for robust, efficient motor protection designed to enhance operational safety and system uptime in a broad range of industrial sectors. Compact and space-saving design. Adjustable overload current setting.

Reliable bimetallic trip mechanism. Dual reset options for operational flexibility. Certified to multiple international standards. Explore more high-quality industrial control devices within Eaton’s portfolio available on EnvMart.
