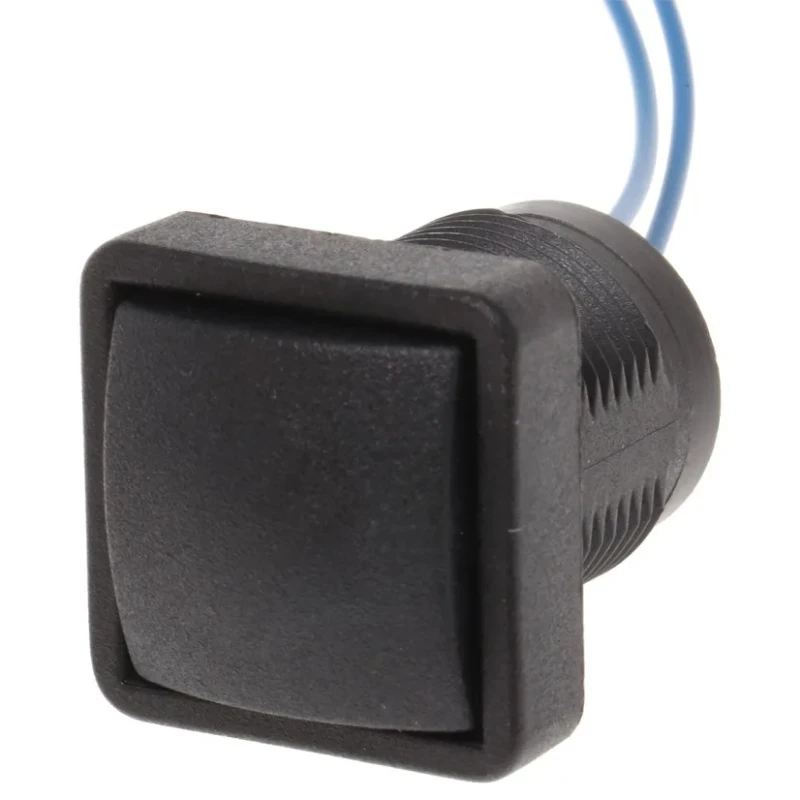

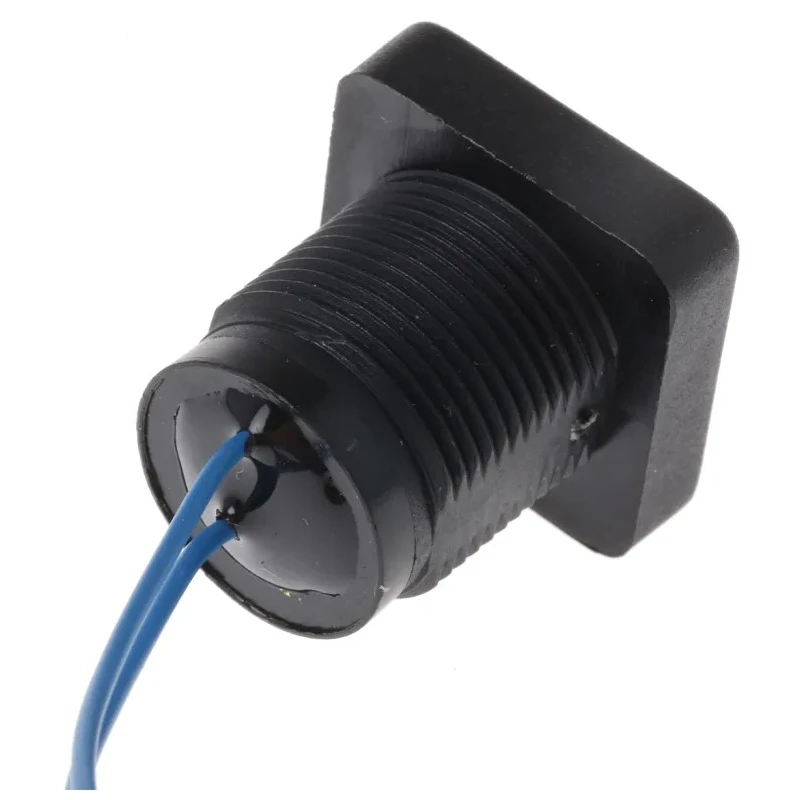

ITW Switches 49-59 Series Push Button Switch, Momentary, Panel Mounted, 16 mm Cutout, SPST, Clear LED, IP67, 250 V 49-59211

ITW Switches 49-59211 49-59 Series Push Button Switch is a momentary action switch designed for panel mounting with a 16 mm cutout diameter. It features a single-pole, single-throw (SPST) configuration with On-Off switch operation rated for 250 V AC and DC at 10A contact current. The actuator is black and round, with no illumination on this model but includes a clear LED option in the series. The device is fully sealed to IP67 standards, protecting against dust ingress and temporary immersion in water up to one meter for 30 minutes.

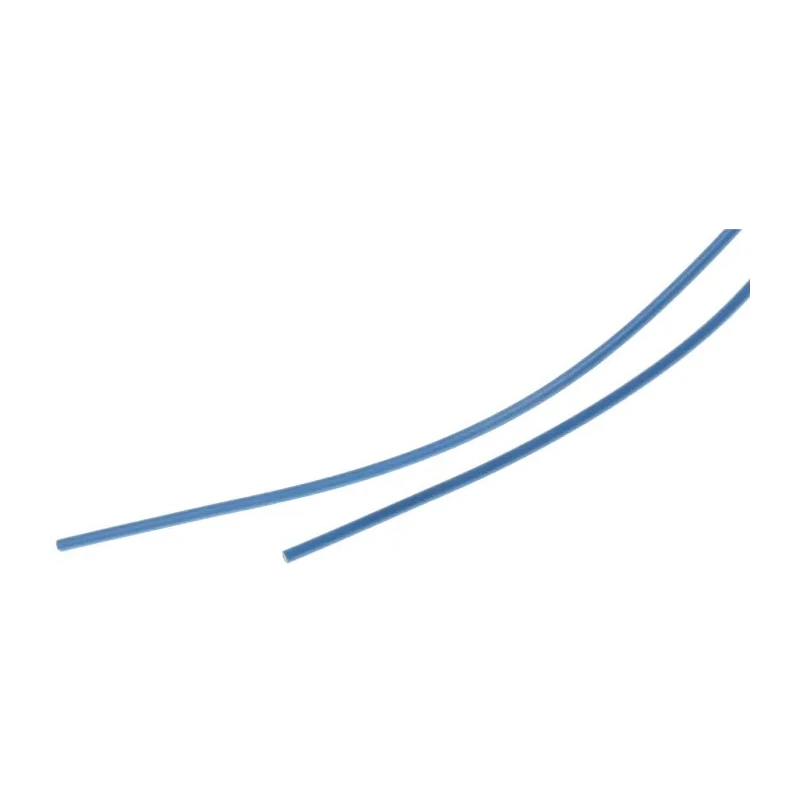

The switch is engineered from durable polybutylene terephthalate (PBT), a thermoplastic widely used in electronics due to its insulating properties and mechanical robustness. It is terminated with insulated flying leads roughly 500 mm in length, facilitating easier wiring in panel installations.

Operating temperature ranges from -35°C to +85°C, making this switch suitable for a variety of demanding industrial environments including communications equipment, data processing units, military systems, instrumentation devices, and transport controls.

This model complies with CSA and UL standards ensuring certified electrical and safety performance. Its IP67 sealing makes it an excellent choice for harsh environmental conditions and rugged keypad assemblies.

The actuator colour is black with a round style. This switch operates momentarily with an On-Off configuration. It is panel mounted and requires a 16 mm panel cutout. Rated for 250 V AC/DC with a contact current of 10A. Fully sealed to IP67, ensuring protection against dust and water immersion.

Operates reliably within a temperature range from -35°C to +85°C. Terminal type is wire with insulated flying leads 500 mm long. Constructed from polybutylene terephthalate (PBT) thermoplastic, offering high durability. Complies with CSA and UL standards for safety and performance.

Ideal for industrial, military, instrumentation, and transport control applications.

This push button switch is suitable for use in electronic equipment manufacturing, industrial control systems, automation panels, and other environments requiring robust and sealed switch mechanisms. EnvMart offers a wide range of switches and electrical components perfect for your project needs.
