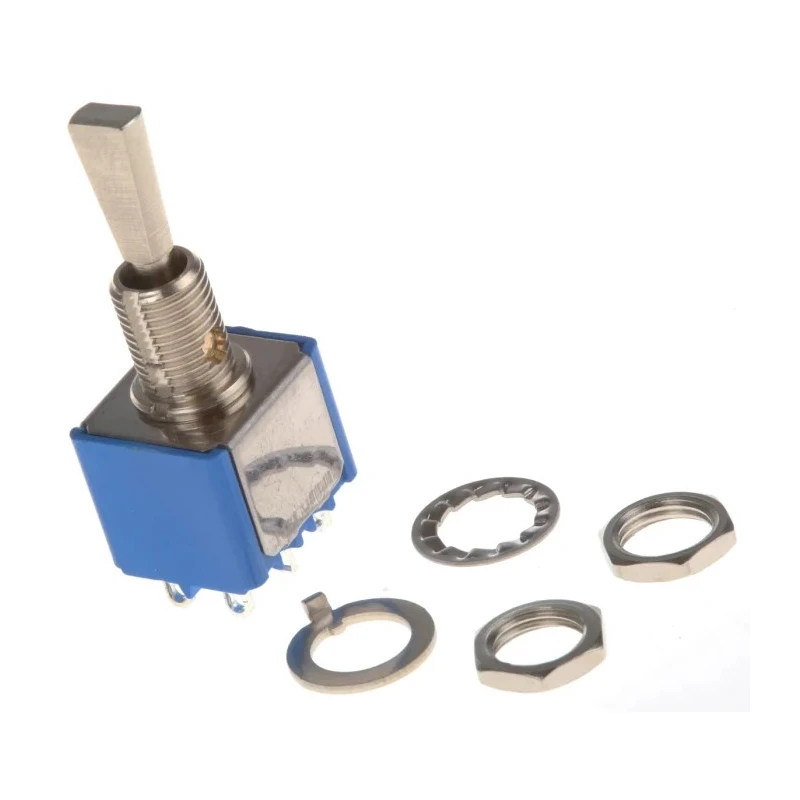

APEM Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 4A 30V dc 250V ac 5649A9
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 34.2mm |
| Length | 13.2mm |
| Model | 5649A9 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -40°C |

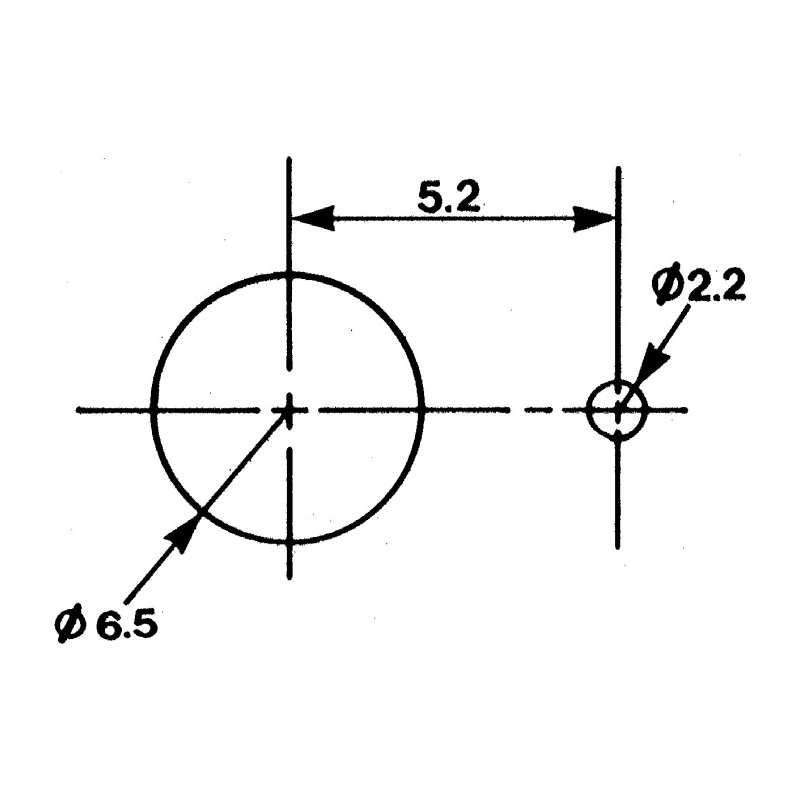

| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, CECC, CSA, UL |
| Switch Operation | On-Off-On |
| Actuator Length | 11.4mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| APEM Toggle Switch, Panel Mount, On-Off-On, DPST, Solder TerminalBrand | APEM |
Key Features
- Panel mount toggle switch with DPDT contact configuration.
- On-Off-On switch operation with brass actuator.
- Supports 4A switch contact current for robust performance.
- Suitable for voltages up to 30V dc and 250V ac.
- Solder terminal type for secure connections.
- Panel cutout size is 6.5 mm for easy installation.
- Operation temperature range from -40°C to 85°C ensures durability.
- Mechanical life rated to 100,000 operations for long-lasting use.
Product Description
APEM 5649A9 Toggle Switch is a high-quality panel mount On-Off-On DPDT switch intended for use in electrical, automation, and control applications requiring reliable switching performance. It features a brass actuator and a diallyl phthalate case with silver contacts ensuring excellent conductivity and durability.
The switch supports a contact current of 4 amperes and voltages of up to 30V dc and 250V ac, with solder lug terminals for firm and secure connections. The compact housing fits a panel cutout size of 6.5 mm, facilitating easy integration into panels with a height of 34.2mm, length of 13.2mm, and width of 12mm, allowing versatile mounting options.
Designed to operate reliably between -40°C and 85°C, this toggle switch offers a mechanical life expectancy of 100,000 operations making it suitable for demanding industrial, manufacturing, and commercial uses. It complies with multiple international standards including RoHS, CECC, CSA, and UL ensuring safety and compliance.
The brass actuator profile provides tactile feedback and robust mechanical action ideal for control panels and automation systems. The panel-mounted On-Off-On DPDT configuration allows for flexible circuit control in a variety of electrical circuits.
This product is made in France, assuring strict quality control and manufacturing excellence. It is suitable for applications in industrial automation, electrical equipment, and instrumentation panels requiring dependable switch operation.
Panel mount Toggle Switch with DPDT contact configuration. On-Off-On switch operation with brass actuator. Supports 4A switch contact current for robust performance. Suitable for voltages up to 30V dc and 250V ac. Solder terminal type for secure connections.
Panel cutout size is 6.5 mm for easy installation. Compact dimensions: height 34.2mm, length 13.2mm, width 12mm. Operation temperature range from -40°C to 85°C ensures durability. Mechanical life rated to 100,000 operations for long-lasting use.
Manufactured in France meeting RoHS, CECC, CSA, and UL standards. For comprehensive panel and electrical switch solutions, explore our range at EnvMart to find top-quality products tailored to your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile circuit control.
This model can operate at a maximum temperature of 85°C, making it suitable for various environments.
It supports a switch contact current of 4A, ensuring robust performance in electrical applications.
The switch is suitable for voltages up to 30V DC and 250V AC, accommodating a range of electrical systems.
The dimensions are height 34.2mm, length 13.2mm, and width 12mm, making it compact for panel mounting.
The required panel cutout size for this toggle switch is 6.5 mm, facilitating easy installation.
The mechanical life of this toggle switch is rated at 100,000 operations, indicating its longevity in use.
It features solder terminals, which provide secure connections for reliable operation.
The actuator is made of brass, which provides tactile feedback and robust mechanical action.
This model complies with multiple standards including RoHS, CECC, CSA, and UL, ensuring safety and compliance.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This toggle switch is manufactured in France, ensuring strict quality control during production.
