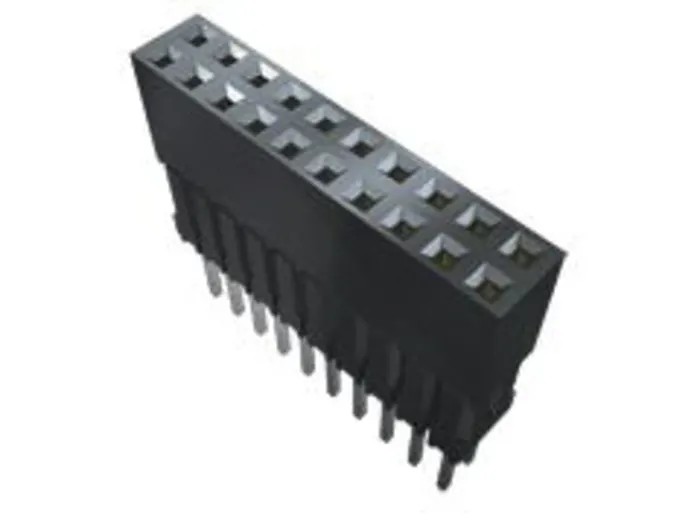

Samtec ESQ Series Straight Through Hole PCB Socket 52-Contact, 2 Row, 2.54 mm Pitch, 23A, 225V ESQ-126-13-G-D

Samtec ESQ-126-13-G-D is a straight through hole Printed Circuit Board (PCB) socket designed with 52 contacts arranged in 2 rows and a 2.54 mm pitch, suitable for high-density and reliable board-to-board electrical connections.

Manufactured with a black glass filled polyester housing, this socket combines rugged mechanical strength with excellent electrical insulation properties, making it ideal for demanding electronic applications.

Its contacts are made from bronze and plated with gold, ensuring superior conductivity, corrosion resistance, and long-lasting performance even under harsh environmental conditions. The termination type is through-hole solder, providing solid mechanical and electrical bonds.

With a current rating of 23A and voltage rating of 225V, this PCB socket supports high-power electronic circuits. It operates in a wide temperature range from -55°C to 125°C, which suits industrial, automotive, and avionics applications that require thermal stability.

The Tiger Buy™ contact system incorporates both standard and low insertion force contact options, featuring .025 inch (0.635 mm) square tails optimized for PC/104™ embedded computing module compatibility.

This connector supports vertical orientation and board-to-board connector system configurations, enabling flexible PCB stack-up designs in electronic assemblies. Supports up to 23A current with 225V voltage rating. Black glass filled polyester housing for durability.

Bronze gold-plated contacts for enhanced electrical performance. Through-hole solder termination for secure mounting. Wide operating temperature from -55°C to 125°C. Compatible with PC/104™ modules via .025 inch square tails.

Tiger Buy™ contact system with low insertion force options. Vertical orientation for board-to-board applications.

This Samtec PCB socket is particularly suitable for industrial, laboratory, electronic manufacturing, and commercial applications requiring reliable and durable board-to-board connectors. The product aligns with the ESQ series specifications and supports various PCB layout needs.
