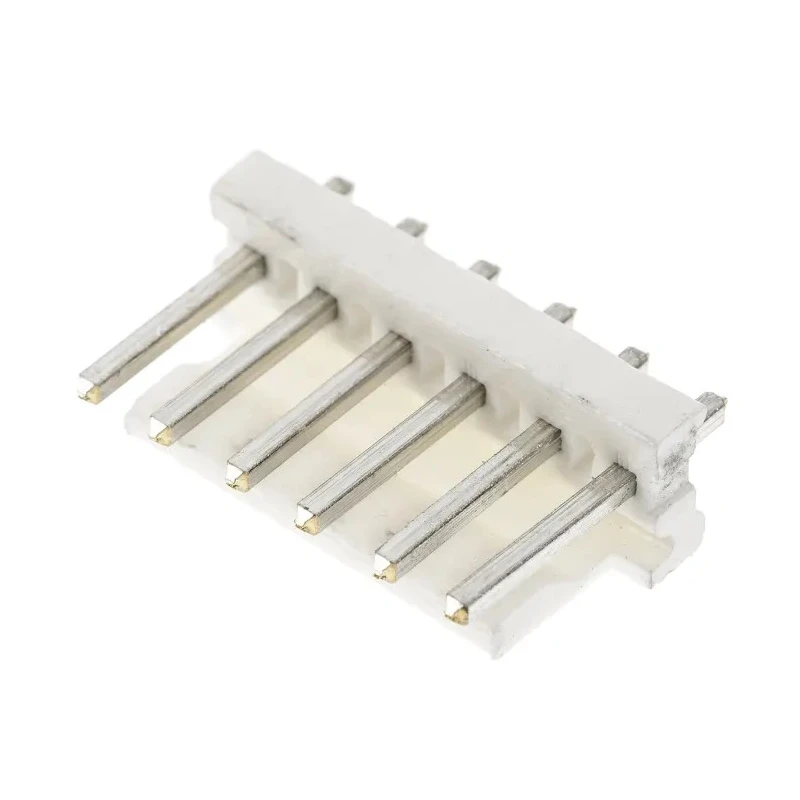

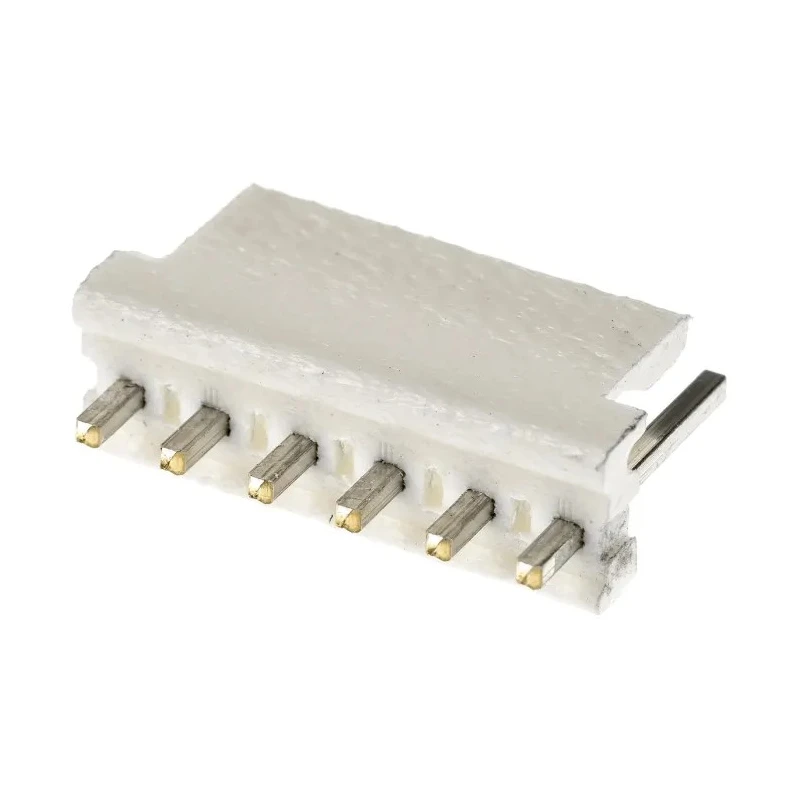

TE Connectivity MTA-156 Series Straight Through Hole Pin Header 6 Contacts 3.96 mm Pitch 1 Row Unshrouded 640445-6
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7A |
| Model | 640445-6 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 10.16mm |
Key Features
- Features unshrouded design with a single row of 6 male contacts for straightforward installation.
- Constructed with polyester housing for durability and thermal stability.
- Rated for a current of 7A and voltage up to 600V, suitable for demanding electrical applications.
- Through-hole mount type ensures secure PCB connection with solder termination.
- Operates reliably within temperature range from -55°C to 105°C for versatile environments.
- The friction lock mechanism guarantees secure mating with MTA-156 IDC connectors.
- Contact plating of tin over copper alloy enhances conductivity and corrosion resistance.
- Pin header supports mass termination of wires, facilitating efficient assembly.
Product Description
TE Connectivity 640445-6 MTA-156 Series Straight Through Hole Pin Header is a high-performance PCB connector designed with 6 male contacts arranged in a single row with 3.96 mm pitch. The unshrouded header features a durable polyester housing and is rated for 7A current and 600V voltage, suitable for robust electrical systems. Its through-hole mount type ensures a secure mechanical and electrical connection to printed circuit boards with solder termination.
This pin header operates reliably within an extended temperature range of -55°C to 105°C, making it well suited for automotive, industrial, and consumer electronic equipment environments. The friction lock mechanism provides a secure mating connection with corresponding MTA-156 IDC connectors, facilitating cost-effective mass termination of wires and reducing assembly time.
Constructed with copper alloy contacts plated with tin, the connector ensures excellent conductivity and corrosion resistance. The header is end-to-end stackable, allowing flexible design configurations for complex PCB layouts.
Applications encompass automotive body and chassis systems, driver information modules, safety and security components, as well as computing devices such as desktops, notebooks, servers, storage, and workstations. The MTA-156 system enables efficient, reliable wiring solutions in wire-to-board and wire-to-wire interconnect scenarios.
Unshrouded single-row pin header with 6 contacts and 3.96 mm pitch. Polyester housing material offers durability and thermal stability. 7A current rating with 600V maximum voltage specification. Through-hole mount enables robust PCB connection with solder termination.
Operating temperature range from -55°C to 105°C suits diverse applications. Compatible with MTA-156 IDC connectors featuring a friction lock mechanism. Tin-plated copper alloy contacts enhance conductivity and corrosion resistance.
End-to-end stackable design allows flexible PCB arrangements. Commonly used in automotive, computer, and consumer electronics sectors. Explore more products from TE Connectivity and related PCB connectors in our Electronics Components section at EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 7A and a voltage of up to 600V, making it suitable for demanding electrical applications.
The pin header features a pitch of 3.96 mm and includes 6 male contacts arranged in a single row.
It utilizes a through-hole mount type, ensuring a secure mechanical and electrical connection to printed circuit boards with solder termination.
The housing is made from polyester, while the contacts are constructed from copper alloy and are tin-plated for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range from -55°C to 105°C, suitable for various environments.
Yes, it is compatible with MTA-156 IDC connectors and features a friction lock mechanism for secure mating.
The tail pin length is 3.18 mm, which is designed for effective soldering to PCBs.
Yes, the design allows for end-to-end stacking, enabling flexible configurations for complex PCB layouts.
It is commonly used in automotive body and chassis systems, driver information modules, safety and security components, and computing devices such as desktops and servers.
The contact gender is male, which is typical for pin headers used in PCB connections.
This pin header uses solder termination, which is standard for through-hole mounted connectors.
The country of origin for this model is the United States.
