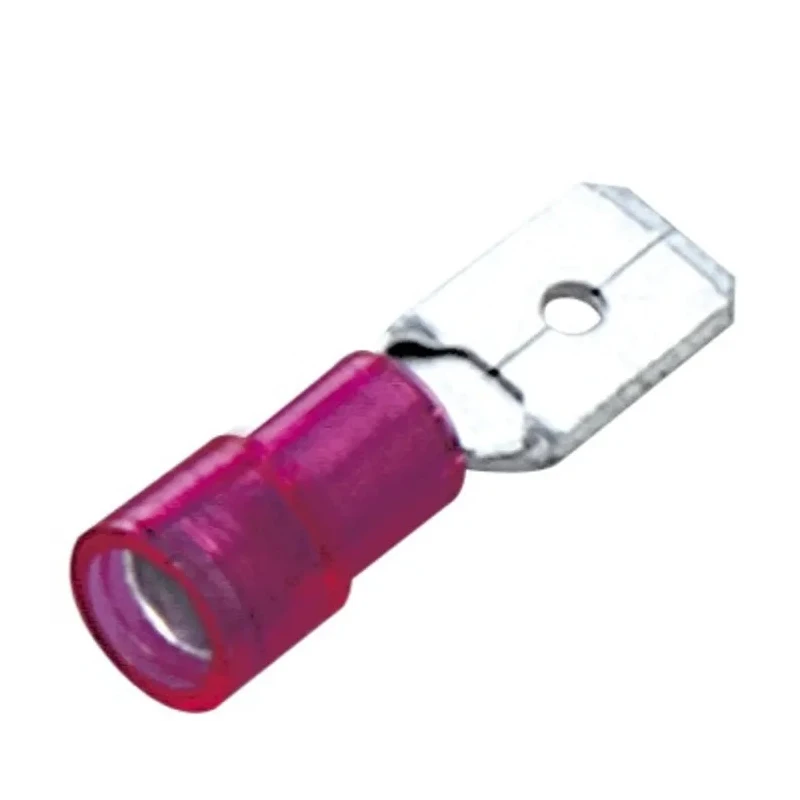

RS PRO Red Insulated Male Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8378

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Male Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8378

Name: RS PRO Red Insulated Male Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8378
Brand: RS PRO
SKU: 153818
Price: 0.14 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8378
Gender	Male
Insulation	Insulated
Overall Length	22mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Polycarbonate
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	6.35mm
Tab Thickness	0.8mm
Tab Size	0.8 x 6.35 mm

Key Features

Constructed with copper and brass contact material for reliable conductivity.
Features a straight orientation with tin plating on contacts.
Insulation made from durable polycarbonate ensuring electrical safety.
Suitable for wires with cross-section between 0.5 mm² and 1.5 mm².
Compact overall length of 22 mm allows easy integration into electrical systems.
Red color coding for easy identification in wiring assemblies.
Terminated via crimp connection method for secure fastening.
Designed for a wide range of industrial, electronic, and electrical applications.

Product Description

RS PRO 178-8378 is a Red Insulated Male Spade Connector designed for crimp termination, featuring a 0.8 x 6.35 mm tab size suitable for wire gauges 22 AWG to 16 AWG. This connector provides reliable electrical connections in various professional and industrial settings.

Constructed from copper and brass contact materials, the connector ensures excellent electrical conductivity and mechanical strength. The contacts are plated with tin to enhance corrosion resistance and durability in demanding environments.

The insulation is made of polycarbonate, providing robust electrical insulation and flame retardancy, enhancing safety during use. The connector's compact overall length of 22 mm allows it to fit neatly within assemblies without occupying excessive space.

Its straight orientation and red insulation color facilitate easy integration and quick identification within complex wiring systems. The crimp termination type offers a secure and permanent connection to wires ranging from 0.5 mm² to 1.5 mm² cross-sectional area, making it versatile for various wire types and applications.

This RS PRO Spade Connector is ideal for use in industrial electronics, power connections, automation systems, HVAC installations, automotive wiring, and general electrical maintenance or manufacturing processes. Its quality construction and standard compliance assure consistent performance and safety.

Constructed with copper and brass contact material for reliable conductivity. Features a straight orientation with tin plating on contacts. Insulation made from durable polycarbonate ensuring electrical safety. Suitable for wires with cross-section between 0.5 mm² and 1.5 mm².

Compact overall length of 22 mm allows easy integration into electrical systems. Red color coding for easy identification in wiring assemblies. Terminated via crimp connection method for secure fastening. Designed for a wide range of industrial, electronic, and electrical applications.

Explore the extensive range of connectors available at EnvMart to find the right component for your electrical and electronic assembly needs.
