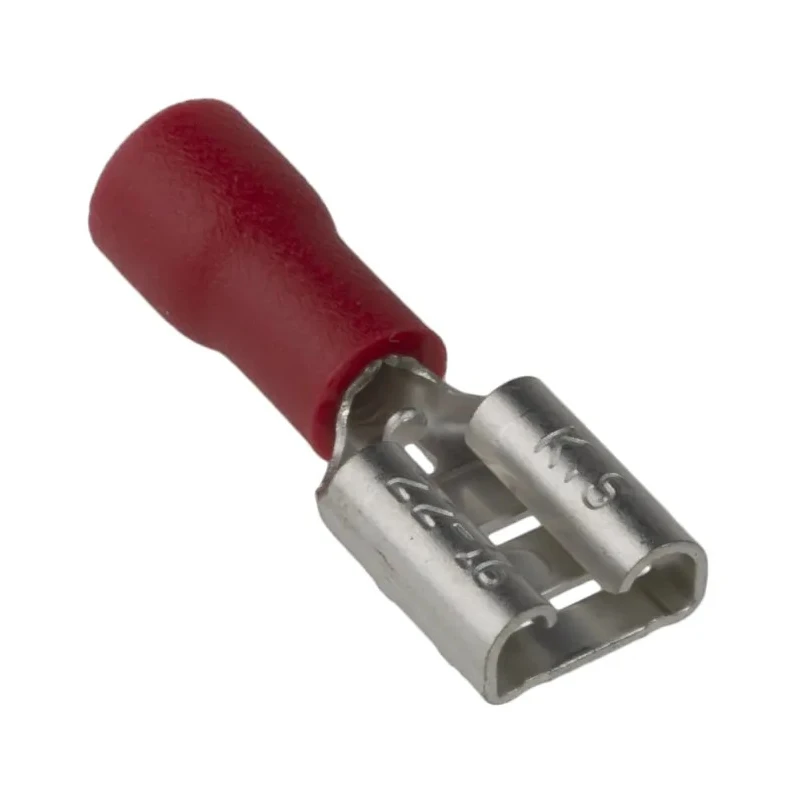

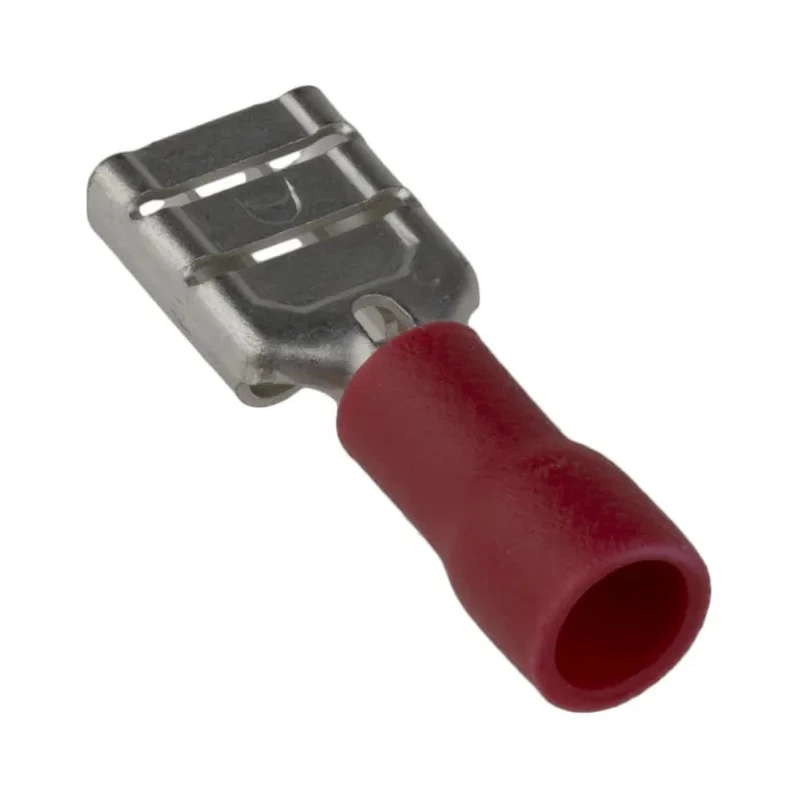

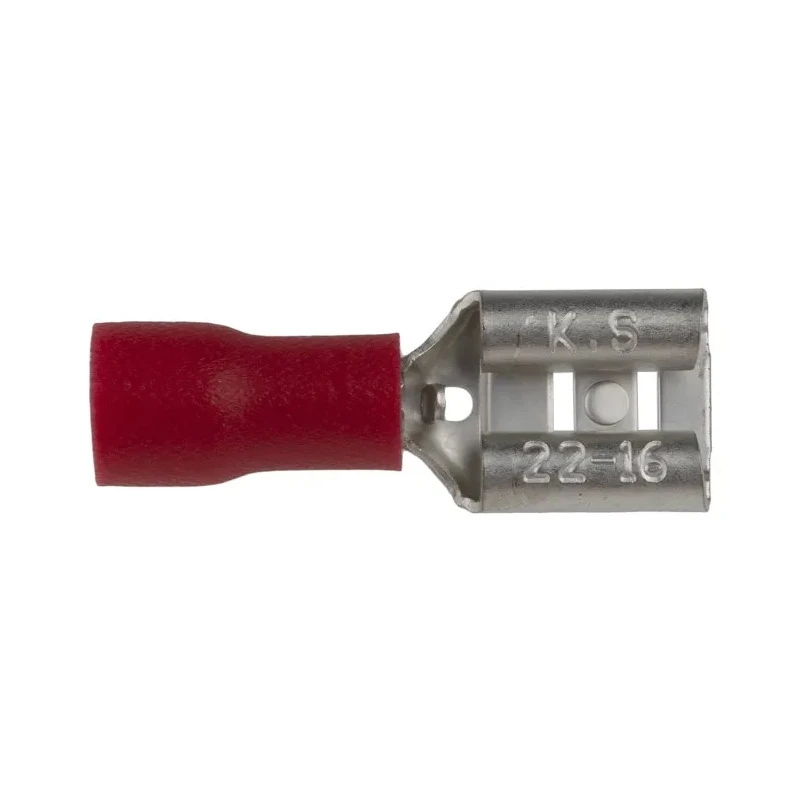

RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8328

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8328

Name: RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 178-8328
Brand: RS PRO
SKU: 153808
Price: 0.09 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8328
Gender	Female
Insulation	Insulated
Overall Length	20.5mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	6.35mm
Tab Thickness	0.8mm
Tab Size	0.8 x 6.35 mm

Key Features

The connector features a crimp termination type ensuring secure wire attachment.
It has a red vinyl insulation providing enhanced electrical safety.
The brass contact material with tin plating assures excellent conductivity and corrosion resistance.
Overall length of the connector is 20.5 mm with a straight orientation for versatile installation.
Supports wire sizes from 0.5 mm² to 1.5 mm², equivalent to AWG 22 to AWG 16.
Insulation is vinyl material, ensuring durability in various electrical applications.
Specifically engineered for use in electronics, electrical wiring, and power connector systems.

Product Description

RS PRO 178-8328 Red Insulated Female Spade Connector Crimp is a high-quality component designed for secure electrical connections in industrial, laboratory, construction, and manufacturing environments. This connector accommodates wire sizes from 22 AWG to 16 AWG, featuring a 0.8 x 6.35 mm tab size optimized for dependable crimped joints.

The connector’s red vinyl insulated body adds an extra layer of safety by preventing accidental contact and enhancing signal integrity. The contact is fabricated from brass and plated with tin, providing excellent electrical conductivity and resistance to oxidation and corrosion, essential for long-term reliability.

With a straight orientation and an overall length of 20.5 mm, installation is straightforward in tight or complex wiring assemblies. The crimp termination type ensures mechanical strength and consistent electrical performance, making the connector ideal for wiring harnesses, control panels, and other wire-to-wire or wire-to-terminal applications.

This RS PRO series product is compliant with basic quality standards, sourced from Taiwan, Province of China, guaranteeing authentic manufacturing processes and materials. It is suitable for professional use in the electronics, power connector, and electrical wiring industries.

The connector features a crimp termination type ensuring secure wire attachment. It has a red vinyl insulation providing enhanced electrical safety. The brass contact material with tin plating assures excellent conductivity and corrosion resistance.

Overall length of the connector is 20.5 mm with a straight orientation for versatile installation. Supports wire sizes from 0.5 mm² to 1.5 mm², equivalent to AWG 22 to AWG 16. Insulation is vinyl material, ensuring durability in various electrical applications.

Specifically engineered for use in electronics, electrical wiring, and power connector systems. Explore RS PRO connectors and electronic components on EnvMart for reliable and certified products designed to meet rigorous industrial and commercial standards.
