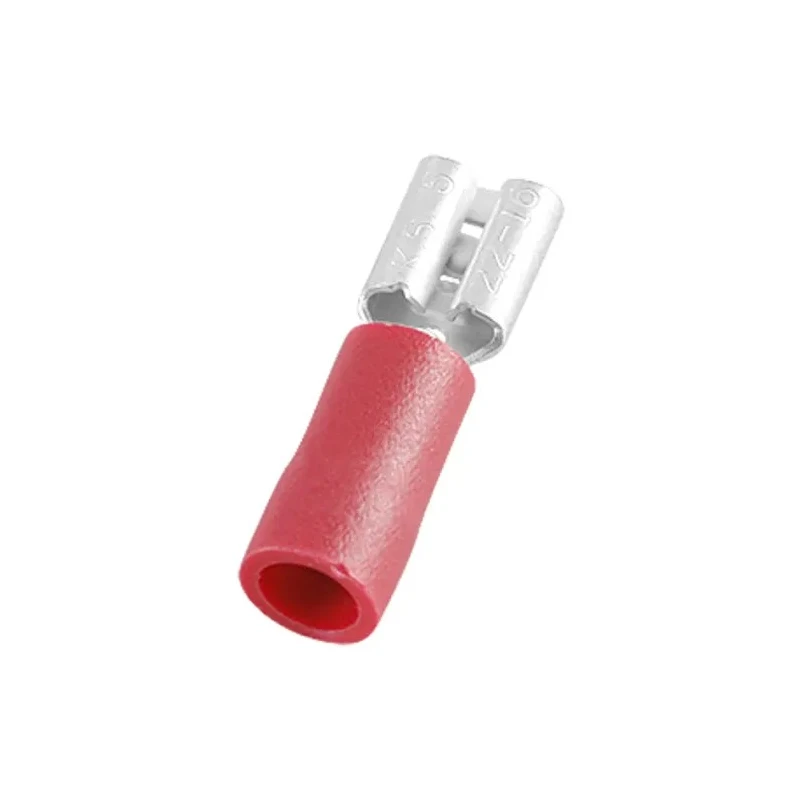

RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Vinyl Insulation 178-8280

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Vinyl Insulation 178-8280

Name: RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Vinyl Insulation 178-8280
Brand: RS PRO
SKU: 153803
Price: 0.08 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8280
Gender	Female
Insulation	Insulated
Overall Length	19.4mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	4.75mm
Tab Thickness	0.8mm
Tab Size	0.8 x 4.75 mm

Key Features

Features double crimp design with copper on sleeve for strong wire retention.
Vinyl insulation provides safe handling and protects against electric shock.
Brass construction ensures excellent corrosion resistance and durability.
Tin-plated contacts enhance conductivity and resist oxidation.
Straight orientation allows for easy and quick connect and disconnect applications.
Overall connector length is 19.4 mm for compact installation.
Suitable for automotive, audio, computer networking, and HVAC wiring uses.
Available in bright red color for clear wire gauge identification.

Product Description

RS PRO 178-8280 Red Insulated Female Spade Connector is a high-quality crimp terminal designed to provide secure and efficient connections for wire strands ranging from 22 AWG to 16 AWG. Featuring a 0.8 x 4.75 mm tab size, this connector supports a wide variety of industrial and commercial electrical applications that require reliable solderless wire termination.

Constructed from brass with copper components and tin plating, the connector offers excellent electrical conductivity and long-term resistance to corrosion and environmental wear. The vinyl insulation enhances electrical safety by reducing the risk of electric shock during connection and disconnection.

This female spade connector uses a double crimp mechanism combining copper on the sleeve for enhanced mechanical strength and conductivity. The straight orientation and compact overall length of 19.4 mm facilitate easy installation even in confined spaces.

The connector is ideally suited for automotives, audio systems, computer and network cabling, and HVAC equipment, providing a quick and effective connect/disconnect solution for maintenance and assembly operations.

Double crimp with copper on sleeve for strong wire retention. Vinyl insulation preventing electric shock hazards. Brass material offers excellent corrosion resistance. Tin-plated contacts ensure reliable conductivity. Straight contact orientation for easy application.

Compact size with 19.4 mm overall length. Suitable for 22 AWG to 16 AWG wire gauges. Available in red for easy gauge identification. Cost-effective alternative to soldered connectors. Part of RS PRO series, manufactured in Taiwan, Province Of China.

These connectors are essential components in industrial, automotive, electrical assembly, and HVAC wiring projects requiring flexible, safe, and maintenance-friendly connections. Explore more high-quality Spade Connectors and related electronic components in the Electronics & Electricals category at EnvMart.
