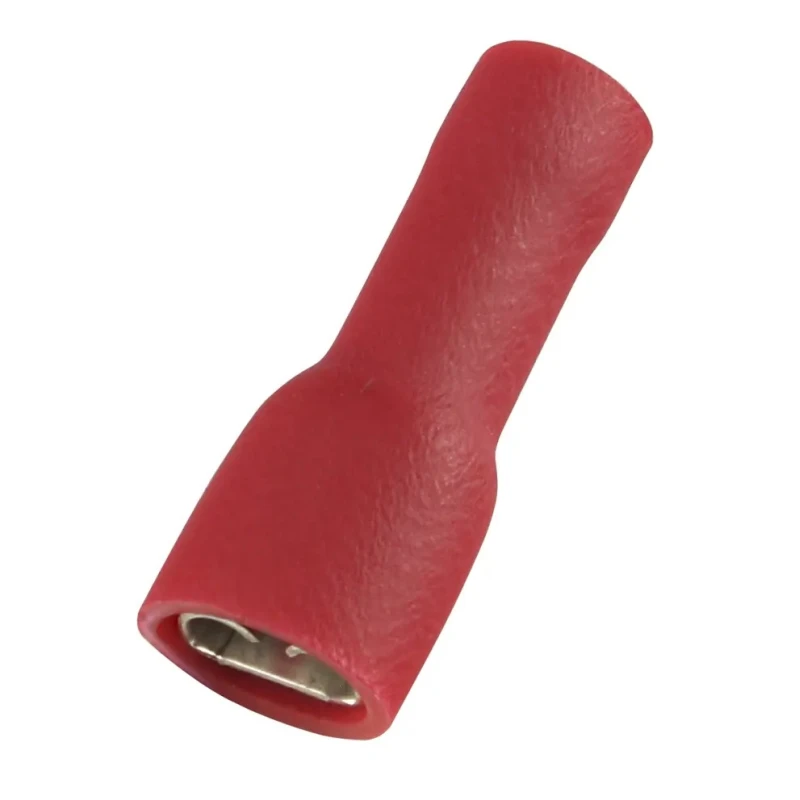

RS PRO Red Insulated Female Crimp Spade Connector, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Brass, Vinyl 178-8285

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Crimp Spade Connector, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Brass, Vinyl 178-8285

Name: RS PRO Red Insulated Female Crimp Spade Connector, 0.8 x 4.75 mm Tab Size, 22 AWG to 16 AWG, Brass, Vinyl 178-8285
Brand: RS PRO
SKU: 153802
Price: 0.14 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	600 V max
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8285
Gender	Female
Insulation	Insulated
Overall Length	20.5mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Terminal Material	Brass
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	178-8285
RS stock no	270-7572
Tab Width	4.75mm
Tab Thickness	0.8mm
Tab Size	0.8 x 4.75 mm

Key Features

Constructed with brass contact material for excellent conductivity.
Vinyl insulation provides protection and electrical safety.
Supports maximum voltage of 600 V, suitable for various electrical applications.
Tab size measures 0.8 x 4.75 mm with a straight orientation.
Designed for crimp termination ensuring secure wire attachment.
Overall length of 20.5 mm facilitating compact installations.
Red color coding for easy identification in wiring systems.
Suitable for electrical servicing and automotive use.

Product Description

RS PRO 178-8285 Red Insulated Female Crimp Spade Connector is an essential component for wiring tasks requiring secure and durable electrical connections. Featuring high-quality brass contacts coated with tin plating, it offers optimal conductivity and corrosion resistance. The connector includes a full vinyl insulation sleeve that not only enhances safety by preventing accidental contact but also protects against environmental factors such as dust and moisture.

This female spade connector supports wire gauges ranging from 22 AWG to 16 AWG with a tab size of 0.8 by 4.75 mm and a tab thickness of 0.8 mm. Its design is tailored for crimp termination, providing a reliable mechanical and electrical connection suitable for industrial, automotive, electronics servicing, and HVAC applications. The red insulation color aids in quick identification during wiring and repairs.

Rated up to 600 V maximum voltage, this connector ensures dependable performance under typical power conditions. The overall length is compact at 20.5 mm, allowing for efficient space usage in terminal blocks and wiring assemblies.

Constructed from brass with copper sleeve double crimp for strong wire retention. Vinyl insulation safeguards connections and prevents electrical hazards. Crimp termination offers easy and effective wire connection without soldering.

Compatible with 22 to 16 AWG wires for versatile application. Red insulation color enhances wiring organization and safety. Straight orientation suitable for standard terminal interfaces. Manufactured under the RS PRO series ensuring consistent quality.

Commonly used in electrical servicing, automotive wiring, and small machine installations. Designed to resist dust ingress and moisture through insulated enclosure. Made in Taiwan ensuring compliance with industry standards.

This product is a reliable choice for professionals and technicians needing robust Spade Connectors to maintain or assemble secure wire connections in diverse industrial environments. Discover more from RS PRO by browsing our category for wire terminals and splices.
