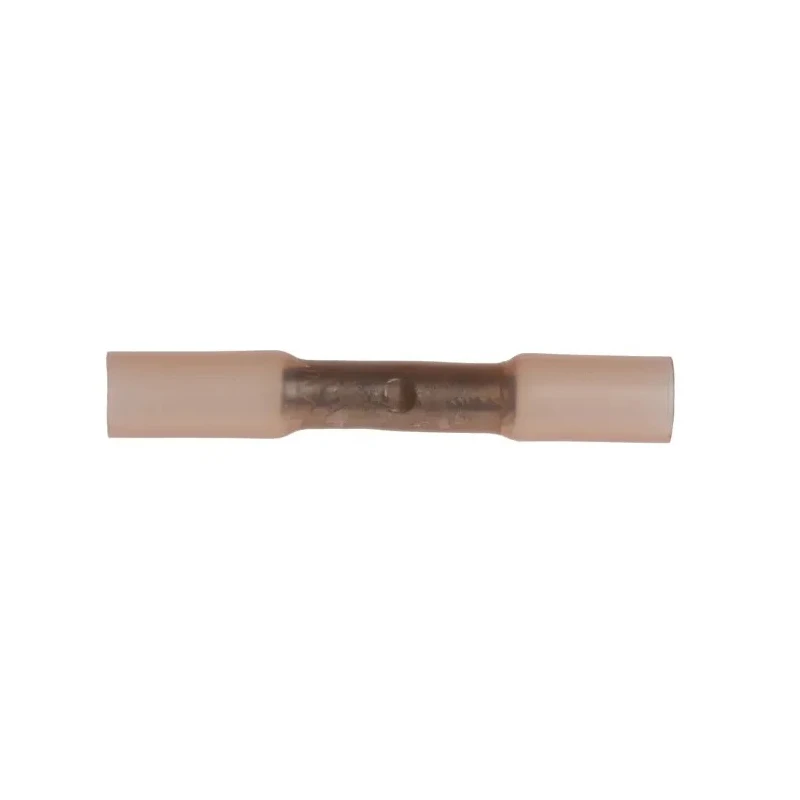

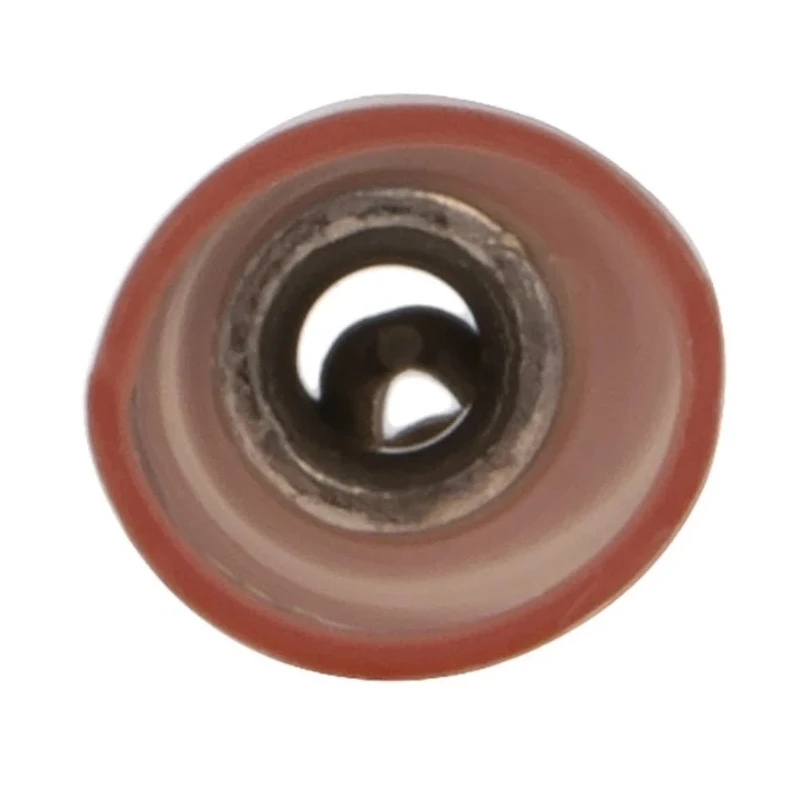

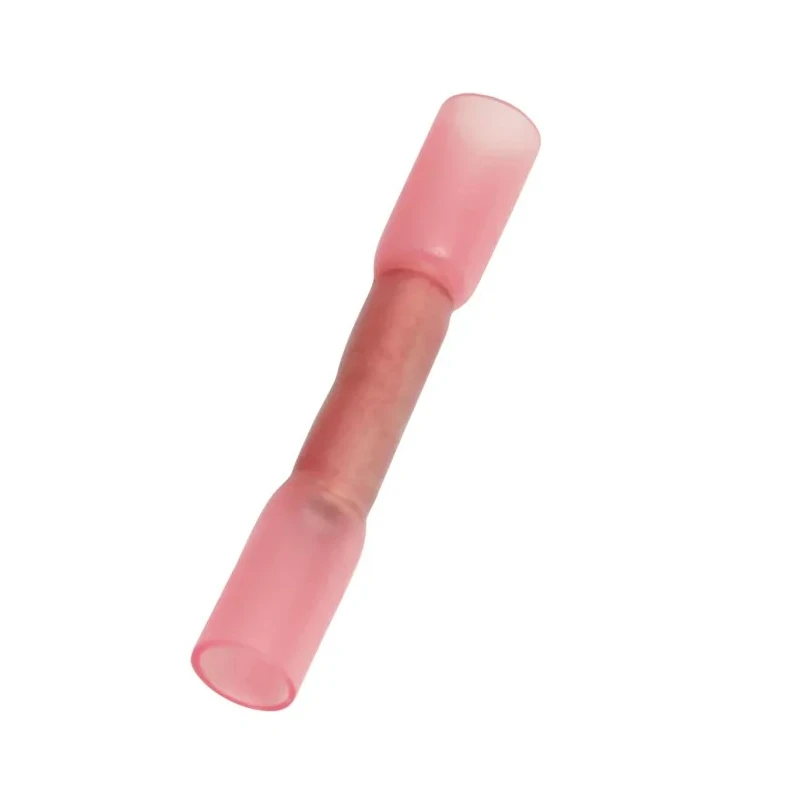

RS PRO Butt Splice Connector Red Insulated Nylon 16 AWG Copper Contact Crimp Termination 178-7184
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 1.7mm |
| Brand | RS PRO |
| Colour | Red |
| Model | 178-7184 |
| Insulation | Insulated |
| Overall Length | 36mm |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Splice Type | Butt |
| Heat shrink ratio of 1 | 1 |
Key Features
- Features a copper contact for excellent conductivity.
- Overall length of 36 mm provides efficient wire splicing.
- Insulated with durable nylon material ensuring safety and easy identification.
- Designed for wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG).
- Heat shrink tube offers secure, watertight seal and strain relief.
- Operates at high temperatures ranging from -55°C to 105°C.
- Crimp termination type for quick, secure installation.
- Ideal for electronic, electrical, manufacturing, and maintenance applications.
Product Description
RS PRO 178-7184 Butt Splice Connector is a high-quality, red insulated splice connector engineered for safe and reliable wire connections. Its crimp termination design features copper contacts encased in durable nylon insulation, accommodating wire sizes from 0.5 mm² to 1.5 mm² (22 to 16 AWG), and an overall length of 36 mm for compact and efficient splicing.
The heat shrink tubing provides a watertight seal and exceptional strain relief, maintaining secure connections in moisture-prone environments. It withstands operating temperatures between -55°C and 105°C with a minimum shrink temperature of 180°C, ensuring durability and safety in various industrial and commercial settings.
This connector supports voltage ratings up to 600 V, making it suitable for electronic, electrical servicing, manufacturing, and HVAC applications requiring reliable wire splice solutions. The nylon insulation enhances safety and allows color-coded identification for quick installation.
Copper contacts provide excellent electrical conductivity. Heat shrink tube guarantees a watertight, strain-relieved connection. Compatible with wire sizes from 0.5 mm² to 1.5 mm² (22 - 16 AWG). Heat shrink ratio of 1:1 for uniform sealing.
Rated for high temperature operation and 600 V voltage. Compact 36 mm overall length for versatile use. Durable nylon insulation offers mechanical protection and color coding. Ideal for electrical and electronic manufacturing and service tasks.
Safe and easy crimp termination for professional installations.
The set standard of quality and precision makes RS PRO Splice Connectors a dependable choice for improving wiring projects and achieving professional-grade results. Explore EnvMart's extensive range of electrical connectors for more advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this butt splice connector is 36 mm, making it compact and efficient for wire splicing.
It accommodates wire sizes ranging from 0.5 mm² (22 AWG) to 1.5 mm² (16 AWG).
This connector features a crimp termination type for secure and quick installation.
It operates effectively within a temperature range of -55°C to 105°C.
The contacts of this connector are made from copper, providing excellent electrical conductivity.
The connector is insulated with durable nylon material, enhancing safety and allowing for easy identification.
Yes, the heat shrink tubing offers a watertight seal and strain relief, making it suitable for moisture-prone environments.
It is rated for voltage applications up to 600 V, suitable for various electrical and electronic tasks.
The minimum shrink temperature for the heat shrink tubing is 180°C.
This model is red in color, which aids in quick identification during installation.
The country of origin for this connector is Taiwan.
The diameter of this butt splice connector is 1.7 mm.
