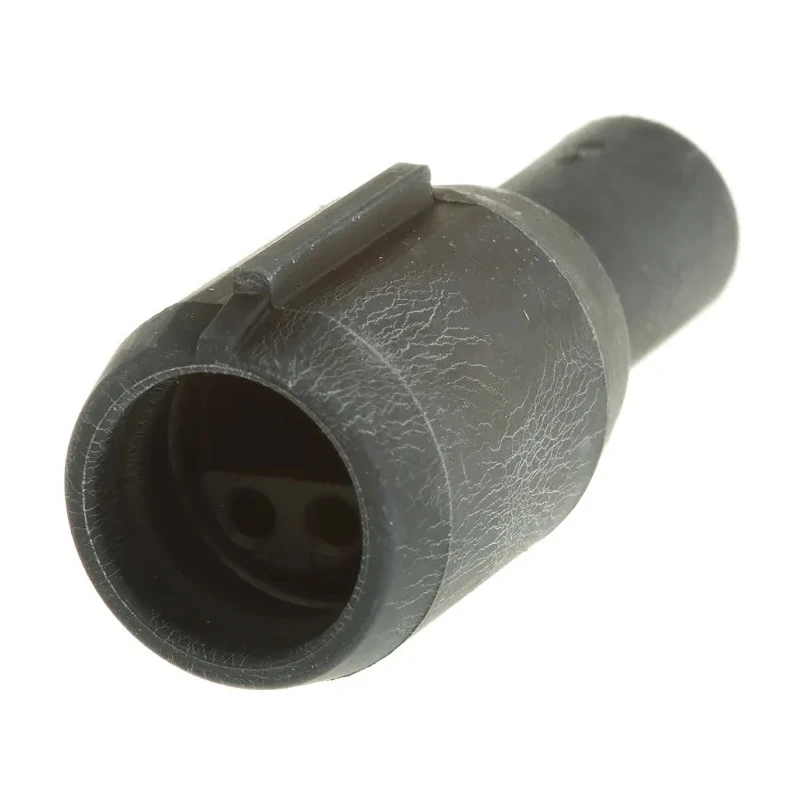

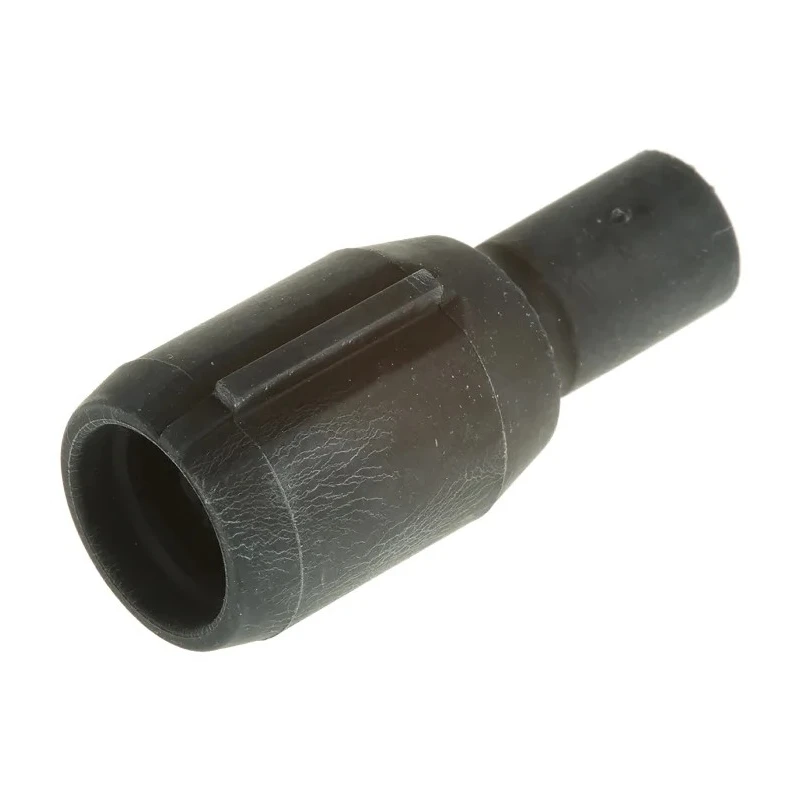

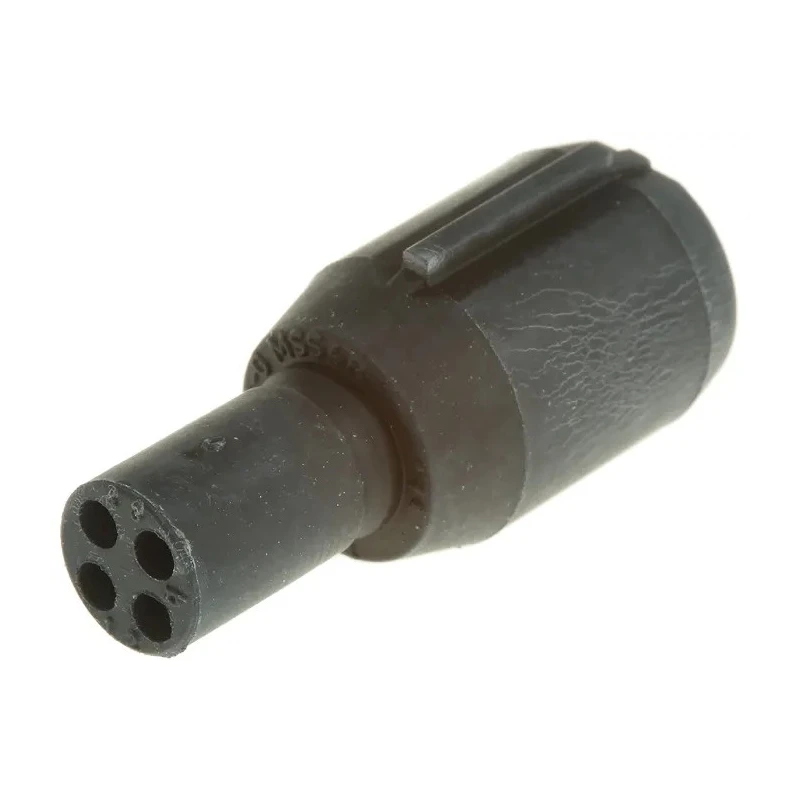

ITT Cannon Circular Connector Miniature 4 Contacts Socket Male/Female IP67 Mini Sure-Seal Series

ITT Cannon 120-8551-102 circular connector is a high-performance miniature 4-contact socket connector designed for industrial and automotive applications. It is part of the highly reliable Mini Sure-Seal series, providing a compact and robust solution with excellent sealing.

This connector supports a continuous current rating of 8A and operates at voltages up to 1200V, making it suitable for demanding electrical connections. Its housing is molded in durable Perbunan material, resistant to wear and chemical exposure, ensuring long service life under harsh conditions.

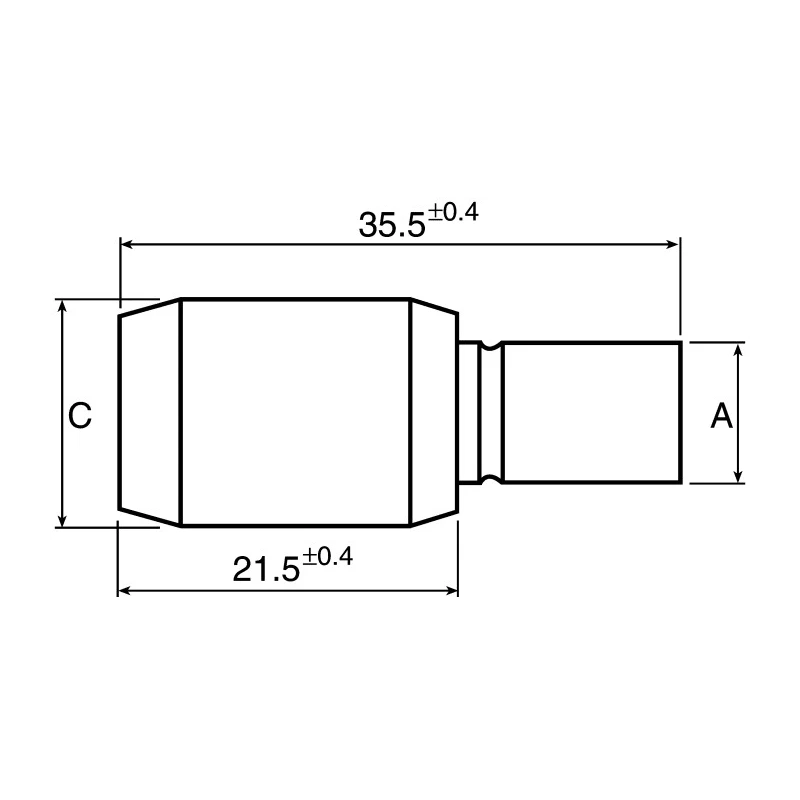

Featuring male and female contacts with silver plating over a copper alloy base, this connector provides low contact resistance and high conductivity. The connector shell size is 15 mm with a straight orientation designed for cable mounting using crimp termination and a bayonet mating coupling for secure and quick engagement.

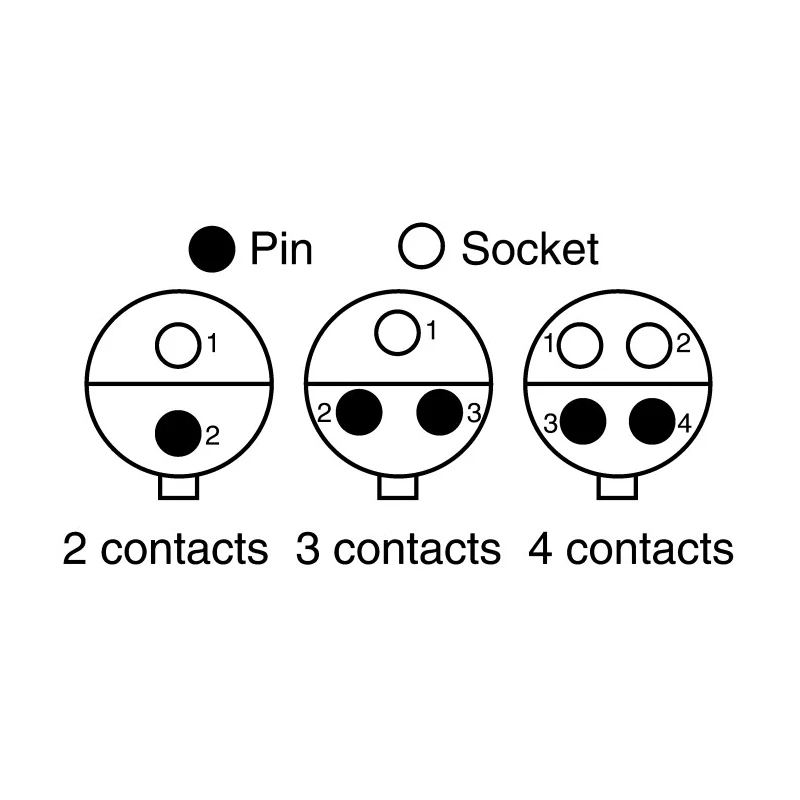

The IP67 ingress protection rating guarantees reliable sealing against water, dust, brake fluid, gasoline, diesel fuel, antifreeze, ultraviolet exposure, ozone, and steam cleaning. The Mini Sure-Seal connectors incorporate polarisation keys preventing incorrect mating and ensuring correct engagement every time.

Rated for operation between -40°C and 105°C, this connector suits environments requiring thermal resilience and resistance to vibration and shock. The one-piece molded body ensures no additional parts are necessary apart from the contacts, simplifying installation and maintenance.

Current rating of 8A and voltage rating up to 1200V. Durable Perbunan housing material with silver-plated copper alloy contacts. Cable mounting with crimp termination and bayonet mating type. IP67 rated sealing for industrial and automotive harsh environments.

Polarised contacts to prevent mis-mating and ensure reliable connection. Temperature operation range from -40°C to 105°C. Miniature 15 mm shell size with straight orientation design. Contacts must be ordered separately.

This ITT Cannon Mini Sure-Seal circular connector is ideal for use in industrial manufacturing, automotive assembly, heavy machinery wiring, and HVAC systems requiring secure, sealed electrical connections. It supports critical safety and reliability standards demanded in high-vibration and harsh chemical environments.
