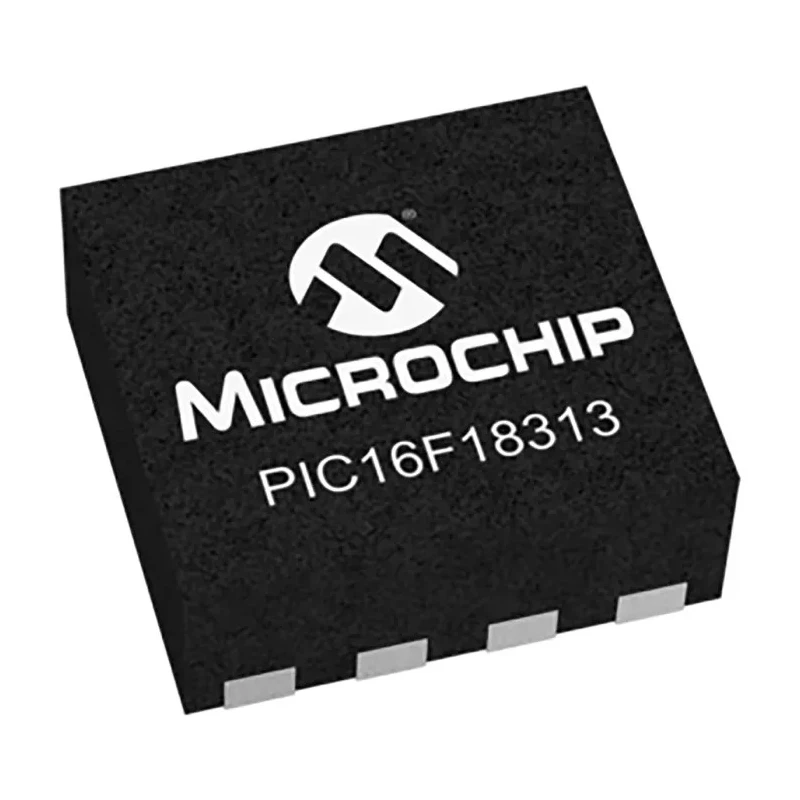

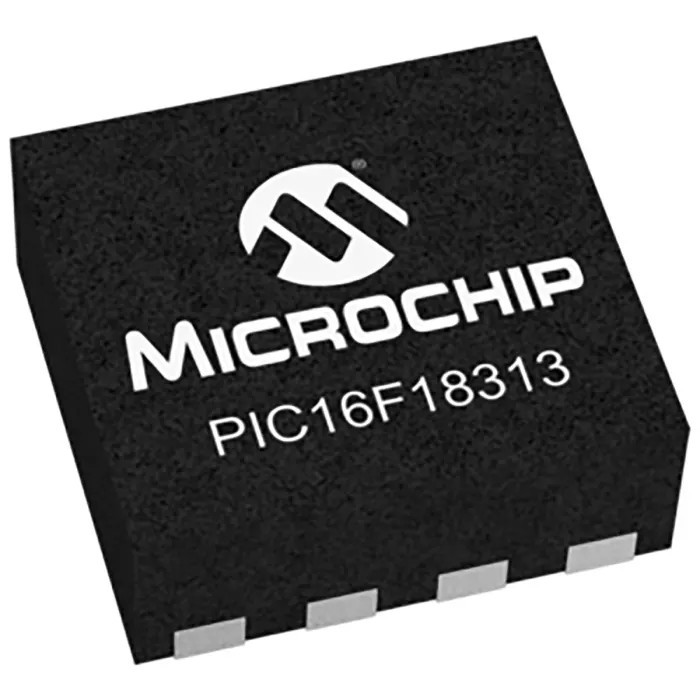

Microchip PIC16F18313-I/RF 8-Bit PIC Microcontroller 32 MHz 3.5kB Flash 8-Pin UDFN
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 500μm |
| Length | 3mm |
| Model | PIC16F18313-I/RF |
| Width | 3mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates at a maximum supply voltage of 5.5V.
- Includes 256-bit RAM and 3.5kB Flash program memory.
- Features 6 programmable input/output pins for flexible connectivity.
- Equipped with 5 channels of 10-bit ADC and one 5-bit DAC.
- Supports multiple timers including two 8-bit and one 16-bit timer.
- Integrated core independent peripherals enhance performance.
- Wide operating temperature range from -40°C to 85°C for industrial use.
- Complies with RoHS standards and automotive AEC-Q100 certification.
Product Description
Microchip PIC16F18313-I/RF is an advanced 8-bit PIC microcontroller designed for general purpose and low power embedded systems. Operating up to 32 MHz with a 3.5kB FLASH memory, it provides robust performance in a compact 8-pin UDFN surface mount package. This microcontroller features a PIC core with 49 instruction enhanced mid-range architecture, complemented by 256-bit RAM and 6 programmable I/O pins.
Designed for industrial, automotive, and consumer electronics applications, it offers versatile analog and digital peripherals, including 5 channels of 10-bit ADC for precise analog measurement and one 5-bit DAC for digital-to-analog conversion. Integrated timers include two 8-bit timers (TMR0, TMR2) and one 16-bit timer (TMR1), suitable for timing and PWM generation tasks.
Power management is optimized with eXtreme Low Power (XLP) features including IDLE and DOZE low power modes, a windowed watchdog timer (WWDT), and programmable brown-out reset (BOR). It also supports in-circuit serial programming (ICSP) for convenient firmware updates.
The device operates over a wide temperature range of -40°C to 85°C and complies with RoHS and AEC-Q100 automotive standards, ensuring reliability in demanding environments. Its small footprint (3 mm length, 3 mm width, and 500 µm height) makes it ideal for compact embedded system designs.
Applications include embedded control, industrial automation, consumer electronics, and automotive systems where low power consumption and peripheral integration are critical. Operates at up to 32 MHz clock frequency. 3.5kB flash program memory with self read/write capability.
256-bit RAM size. 6 programmable I/O pins. 5 x 10-bit ADC channels and 1 x 5-bit DAC. Supports two 8-bit and one 16-bit timer. Wide operating voltage range 2.3V to 5.5V. RoHS compliant and AEC-Q100 automotive certified. Compact 8-pin UDFN surface mount package.
Low power modes: IDLE, DOZE, low power brown-out reset. Explore the comprehensive Microchip PIC16F series on EnvMart for advanced embedded Microcontroller solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 32 MHz.
It features a program memory size of 3.5kB, which allows for self read/write operations.
This microcontroller includes 6 programmable input/output pins for flexible connectivity.
The operating voltage range is from 2.3V to 5.5V.
It is equipped with 5 channels of 10-bit ADC and one 5-bit DAC for analog measurement and conversion.
This model supports two 8-bit timers and one 16-bit timer, suitable for timing and PWM generation tasks.
It operates over a wide temperature range from -40°C to 85°C, making it suitable for industrial applications.
The dimensions are 3 mm in length, 3 mm in width, and 500 µm in height.
It complies with RoHS standards and has AEC-Q100 automotive certification, ensuring reliability in demanding environments.
The microcontroller has a RAM size of 256 bits.
It comes in a compact 8-pin UDFN surface mount package.
Yes, it features low power modes including IDLE and DOZE, optimized for power management.
