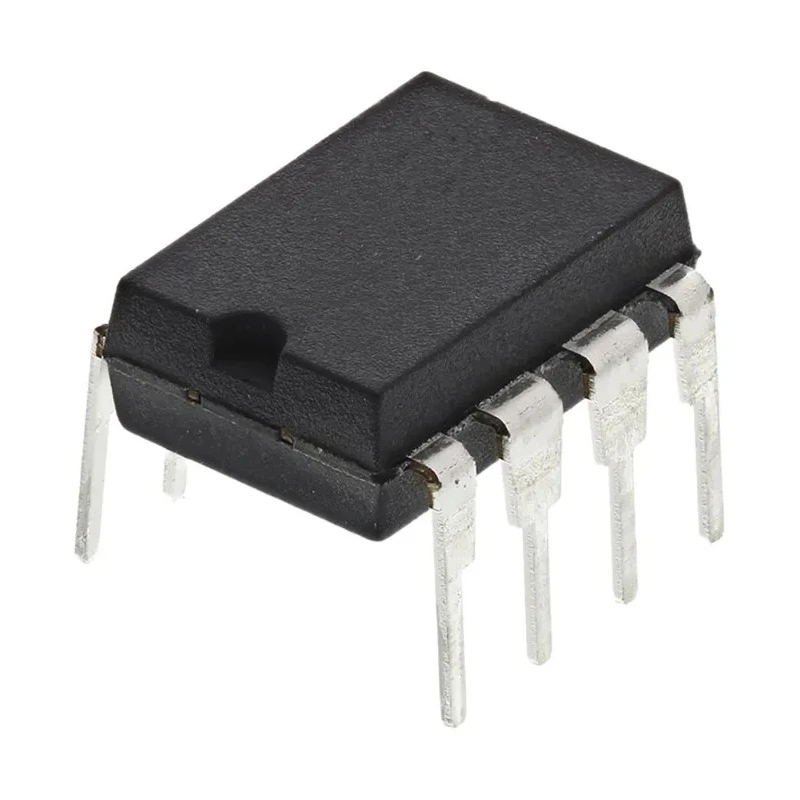

Microchip 8-Bit PIC12C Microcontroller, 1.5kB EPROM, 4 MHz Clock, 8-Pin PDIP PIC12C509A-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.17mm |
| Length | 9.78mm |
| Model | PIC12C509A-04I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC12C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 41bit |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 328-1729Brand: MicrochipManufacturers Part No.: PIC12C509A-04I/P |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 700mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 5 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
Key Features
- Utilizes powerful PIC architecture with a simple 33-instruction set.
- Operates at a maximum clock frequency of 4 MHz for efficient processing.
- Equipped with 1.5kB EPROM program memory and 41-bit RAM for data handling.
- Features 8 pins through-hole PDIP package facilitating easy mounting and integration.
- Supports operating voltage range from 3V to 5.5V ensuring flexible power supply options.
- Includes 5 programmable I/O pins capable of sourcing and sinking 25mA each.
- Wide operating temperature from -40°C to 85°C suitable for diverse environments.
- Complies with RoHS standard and ISO 9001 automotive quality standards.
Product Description
Microchip PIC12C509A-04I/P is an 8-bit PIC microcontroller offering efficient embedded control capabilities with a 1.5kB EPROM program memory. It operates at a maximum frequency of 4 MHz, housed in an 8-pin PDIP through-hole package designed for easy PCB integration.
Built on Microchip's powerful PIC® architecture, this compact microcontroller executes instructions in one microsecond with a simple 33 single-word instruction set. It includes 5 programmable input/output pins that can source or sink 25mA, suitable for direct control of various peripherals.
The device supports a broad voltage range from 3V to 5.5V making it versatile for battery-powered or standard embedded projects. It operates reliably within a temperature range from -40°C to 85°C, ensuring performance in industrial and automotive environments.
With one timer and RISC architecture with no ADC channels, the PIC12C509A-04I/P is ideal for cost-sensitive applications requiring basic control and timing functionalities.
Compact dimensions (9.78mm length × 6.6mm width × 3.17mm height) enable space-efficient designs. The device is RoHS compliant and meets ISO 9001 automotive standards, highlighting quality and environmental compliance.
This microcontroller finds widespread use in industrial automation, consumer electronics, automotive electronics, and general embedded system solutions. Utilizes PIC architecture with fast instruction cycle. 1.5kB EPROM for program storage and 41-bit RAM for data buffering.
Supports operating voltage from 3V to 5.5V for versatile power supply conditions. Programmable 5 I/O pins capable of sourcing/sinking 25mA each. Operating temperature range suited for industrial applications. Explore full product range and Microchip Microcontrollers at EnvMart for advanced embedded electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC12C509A-04I/P is 4 MHz, allowing for efficient processing capabilities.
This microcontroller features a program memory size of 1.5kB EPROM, suitable for various embedded applications.
It supports an operating voltage range from 3V to 5.5V, providing flexibility for different power supply conditions.
The PIC12C509A-04I/P includes 5 programmable I/O pins, each capable of sourcing or sinking 25mA.
The dimensions of the PIC12C509A-04I/P are 9.78mm in length, 6.6mm in width, and 3.17mm in height.
This model operates reliably within a temperature range from -40°C to 85°C, making it suitable for various environments.
The PIC12C509A-04I/P is housed in an 8-pin PDIP (Plastic Dual In-line Package) for easy mounting and integration.
This microcontroller complies with RoHS standards and ISO 9001 automotive quality standards, ensuring environmental and quality compliance.
The PIC12C509A-04I/P includes one timer, suitable for basic control and timing functionalities.
It utilizes a RISC (Reduced Instruction Set Computing) architecture with a simple 33-instruction set for efficient processing.
No, this microcontroller does not include any ADC (Analog-to-Digital Converter) channels.
The core type of the PIC12C509A-04I/P is PIC, which is part of Microchip's family of microcontrollers designed for embedded applications.
