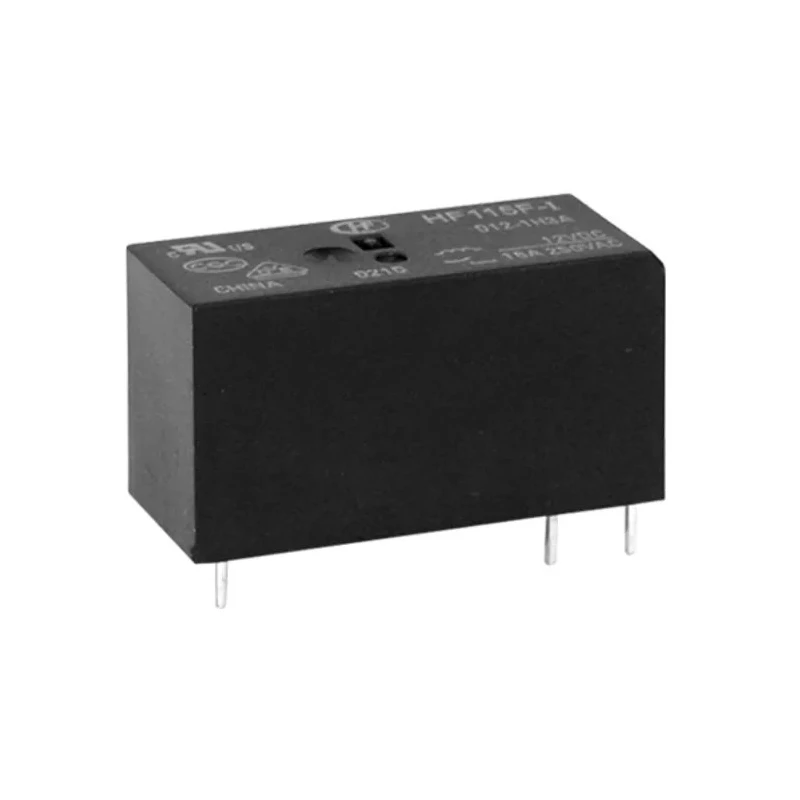

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 16A Switching Current SPST HF115F-I/012-1H3AF(610)

Free Delivery in India | Lowest Global Shipping Charges

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 16A Switching Current SPST HF115F-I/012-1H3AF(610)

Name: Hongfa Europe GMBH PCB Power Relay 12V DC Coil 16A Switching Current SPST HF115F-I/012-1H3AF(610)
Brand: Hongfa Europe GMBH
SKU: 152892
Price: 3.93 USD
Availability: InStock



Category Power Relay Brand Hongfa Europe GMBH Condition New

Specifications

Country of Origin	China
Brand	Hongfa Europe GMBH
Height	15.7mm
Length	29mm
Model	HF115F-I/012-1H3AF(610)
Width	12.7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	HF115F-I
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	16A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	360Ω
Coil Voltage	12V dc
Switching DC Voltage	300V dc
Switching AC Voltage	440V
Coil Power	400mW

Key Features

This relay is ideal for high power switching applications reaching up to 280W in DC service.
It features a durable silver alloy contact material ensuring high conductivity and reliability.
The relay operates efficiently within a temperature range of -40°C to 85°C.
The PCB mount design allows easy installation with PCB pin terminals for compact setups.
It provides an isolation voltage of 10KVAC between coil and contact for safety and performance.
The coil resistance is 360Ω with a power consumption of 400mW.
The contact resistance is low at 100mΩ, guaranteeing minimal signal loss.
Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm contribute to space-saving designs.

Product Description

Hongfa Europe GMBH HF115F-I/012-1H3AF(610) PCB Power Relay features a 12V DC coil designed for reliable power switching in electronic and electrical circuits. It supports a switching current of 16A and offers SPST (Single Pole Single Throw) contact configuration, making it suitable for various industrial and commercial power control applications.

Constructed with silver alloy contacts, this relay ensures high conductivity and longevity, while the coil resistance of 360 ohms and coil power of 400mW ensure energy-efficient operation. This relay is compact, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, which fits efficiently on PCB assemblies.

The device is designed for environmental endurance with an operating temperature range of -40°C to 85°C and offers a high isolation voltage of 10KVAC between coil and contact. Its low contact resistance of 100mΩ assures minimal energy loss during switching cycles. The PCB pin terminal mounting facilitates easy and secure installation.

This non-latching relay is plastic sealed and flux proofed, providing durability of up to 10 million cycles and is compliant with RoHS standards, reinforcing its environmental compatibility.

Commonly used in automotive engines, household appliances, industrial machinery, medical equipment, and telecommunication systems, this relay is a versatile choice for high-performance power control needs.

High power switching capability up to 280W for DC loads. Durable silver alloy contacts for reliable operation. Wide operating temperature range from -40°C to 85°C. Compact PCB mount with pin terminal configuration. High isolation voltage of 10KVAC for safe electrical separation.
