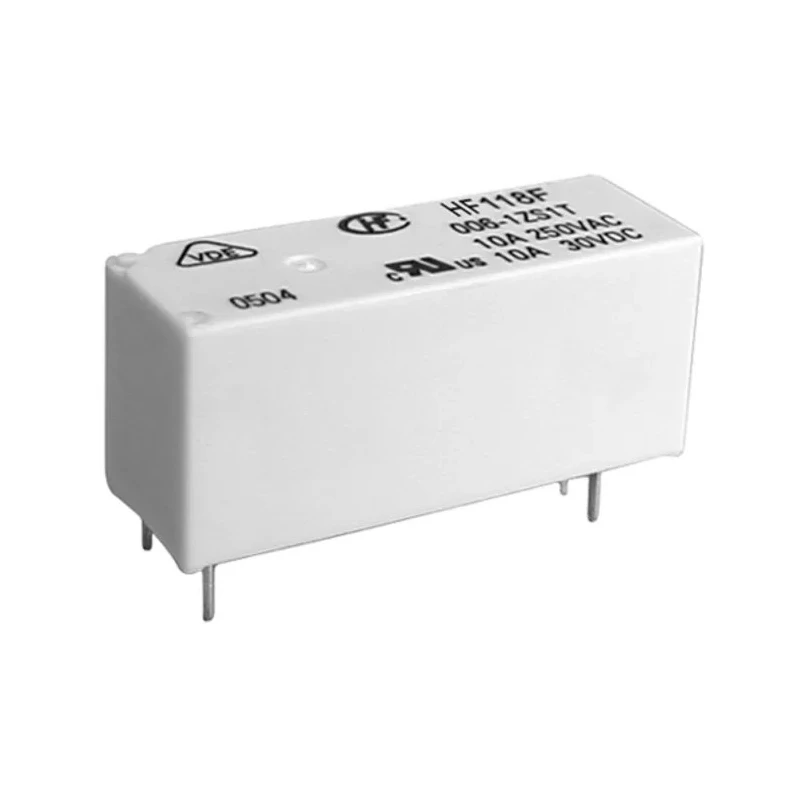

Hongfa Europe GMBH PCB Power Relay 5V DC Coil 10A Switching Current SPDT HF118F/005-1ZS1T(136)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 12.5mm |
| Length | 28.5mm |
| Model | HF118F/005-1ZS1T(136) |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF118F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 113Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V |
| Coil Power | 290mW |
| Outline Dimensions | (28.5 x 10.1 x 12.5) mm |
Key Features
- Single Pole Double Throw (SPDT) contact configuration for versatile circuit switching.
- Compact PCB mount type with dimensions 28.5 x 10.1 x 12.5 mm offering low height of 12.5 mm.
- Coil resistance of 113 Ohms with coil power consumption of 290 mW ensuring efficient operation.
- Wide operating temperature range from -40°C to 85°C suitable for varied environments.
- High switching power of 2.5 kVA with switching DC voltage up to 125 V and AC voltage up to 440 V.
- Contact material made of silver alloy with low contact resistance of 100 mΩ for reliable conduction.
- Plastic sealed and flux proofed design for enhanced durability and environmental protection.
- Dielectric strength of 5 kV between coil and contacts ensuring electrical isolation safety.
Product Description
Hongfa Europe GMBH HF118F/005-1ZS1T(136) is a high-quality PCB Power Relay designed for robust electrical switching applications. It features a 5 V DC coil voltage supporting a maximum switching current of 10 A, making it suitable for a wide range of industrial, automation, and electrical control systems.
This relay offers a Single Pole Double Throw (SPDT) contact configuration, which allows versatile switching between two circuits. Its compact form factor with an outline dimension of 28.5 mm length, 10.1 mm width, and a low height of 12.5 mm, facilitates easy integration on printed circuit boards.
The coil resistance is 113 Ω and the coil power consumption is 290 mW, contributing to efficient power use. With a minimum operating temperature of -40°C and a maximum of 85°C, this relay operates reliably under various environmental conditions.
Equipped with durable silver alloy contacts and a contact resistance of 100 mΩ, it ensures dependable electrical connectivity. The relay supports a switching power rating of 2.5 kVA and can handle switching voltages up to 125 V DC and 440 V AC.
The relay is plastic sealed and flux proofed, providing protection against environmental factors. It has a dielectric strength of 5 kV between coil and contacts, enhancing operational safety.
This model complies with RoHS standards, underscoring its environmentally friendly design. It is ideal for use in industrial machines, home appliances, HVAC systems, manufacturing control circuits, and other automation solutions.
Its features and reliable specifications make it an essential component for engineers and technicians requiring a durable PCB power relay with precise switching capabilities. Explore more electronic components in the Power Relays category at EnvMart for various automation, electrical, and industrial applications.
Single Pole Double Throw (SPDT) contact configuration for versatile circuit switching. Compact PCB mount type with low profile dimensions. Efficient coil power consumption of 290 mW and 113 Ω resistance. Wide temperature operating range from -40°C to 85°C.
High switching power and reliable silver alloy contacts. Plastic sealed, flux proofed, and RoHS compliant.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 10 A.
The outline dimensions are 28.5 mm in length, 10.1 mm in width, and 12.5 mm in height.
It operates with a coil voltage of 5 V DC and has a coil power consumption of 290 mW.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The dielectric strength is 5 kV, ensuring electrical isolation safety.
The contact material is made of silver alloy, which provides low contact resistance of 100 mΩ.
It operates reliably within a temperature range of -40°C to 85°C.
It can handle switching DC voltage up to 125 V and AC voltage up to 440 V.
Yes, it complies with RoHS standards, indicating its environmentally friendly design.
This model is designed for PCB mounting, featuring PCB pin terminals.
The coil resistance is 113 Ω, contributing to its efficient operation.
It is suitable for use in industrial machines, home appliances, HVAC systems, and manufacturing control circuits.
