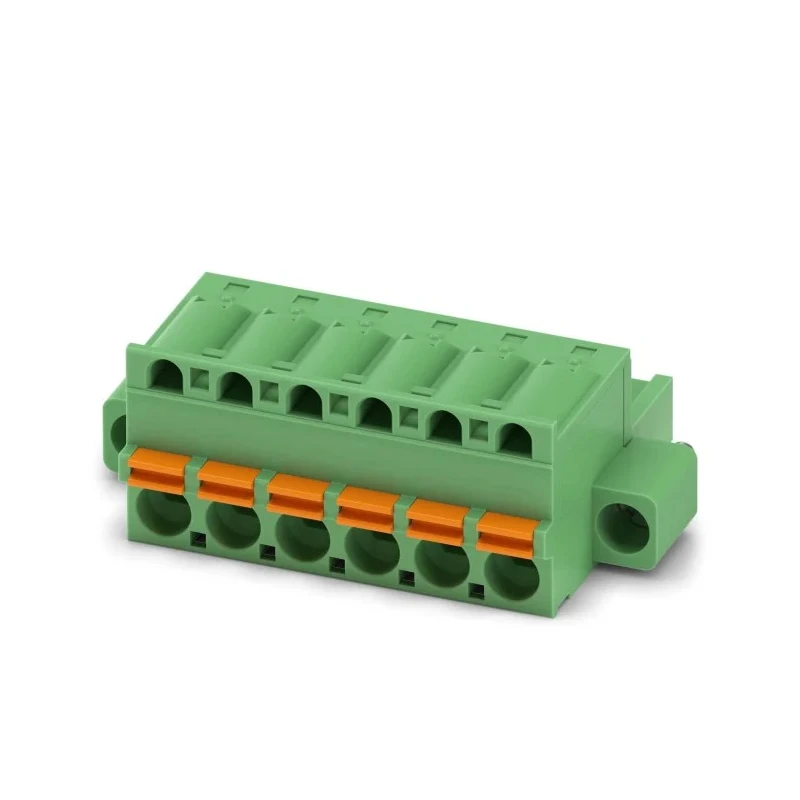

Phoenix Contact FKC 2.5/6-STF-5.08 Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 12 A, 630 V, Polyamide 1873249
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 25.73mm |
| Model | 1873249 |
| Depth | 15mm |
| Width | 40.58mm |
| Housing Material | Polyamide |
| Series | FKC 2.5/6-STF-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 6 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 320 V, number of positions: 6, pitch: 5.08 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin |
Key Features
- Nominal current rating of 12 amperes for robust electrical performance.
- Constructed with durable polyamide housing in green color for easy identification.
- Connection method uses screw terminals ensuring secure wire attachment.
- Supports wire sizes from 0.2 mm² to 2.5 mm² and AWG 24 to 14.
- Compact dimensions with 1 row, width 40.58 mm, length 25.73 mm, and depth 15 mm.
- Designed with 5.08 mm pitch and straight orientation for easy integration.
- Complies with RoHS standards ensuring environmentally friendly materials.
Product Description
The Phoenix Contact 1873249 FKC 2.5/6-STF-5.08 is a highly reliable pluggable terminal block designed for PCB mounting applications in industrial, electrical, and electronics fields.
This terminal block features 6 contacts arranged in a single row with a 5.08 mm pitch, allowing precise and compact wiring. It supports a nominal current of 12 amperes and a rated voltage of 630 volts (III/2), suitable for a wide range of power and signal transfer requirements.
Its housing is made of robust polyamide material colored green for clear visual identification and enhanced durability. The connection method employs screw terminals, allowing secure and maintenance-friendly wire attachment. It supports wire sizes from 0.2 mm² up to 2.5 mm² (24 AWG to 14 AWG), accommodating various cable types and ensuring safe connections.
The terminal block measures 40.58 mm in width, 25.73 mm in length, and 15 mm in depth, fitting compactly on printed circuit boards. The straight orientation and pluggable design enable straightforward installation and replacement, enhancing system modularity and reducing downtime.
Compliance with RoHS standards guarantees the use of environmentally safe materials, aligning with regulatory requirements in industrial electronics manufacturing. Nominal current rated at 12 A for reliable power transmission.
Voltage rating of 630 V (III/2) suitable for industrial applications. 6-contact configuration with 5.08 mm pitch for dense wiring layouts. Polyamide housing ensuring mechanical strength and insulation. Screw connection providing robust wire retention.
Supports wire cross-sections from 0.2 mm² to 2.5 mm². Compact design dimensions for efficient PCB space usage. Green color coding for easy identification and wiring standards compliance.
This pluggable terminal block is ideal for use in industrial control, automation, electronic instrumentation, and power distribution systems. Its high-quality construction and compliance make it suitable for demanding environments requiring secure electrical connections.
Find comprehensive technical documents, including datasheets and 3D models, to facilitate design and integration in modern electronic assemblies. Enhance your industrial and electronic projects with this versatile and dependable Phoenix Contact terminal block.
Explore more in the Pluggable Terminal Blocks category at EnvMart for compatible and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this terminal block is 12 amperes.
It can handle a rated voltage of 630 volts.
The pitch size of the contacts is 5.08 mm.
It supports wire sizes from 0.2 mm² to 2.5 mm² and AWG 24 to 14.
The housing is made of polyamide, which is colored green for easy identification.
This terminal block features 6 contacts arranged in a single row.
It measures 40.58 mm in width, 25.73 mm in length, and 15 mm in depth.
It uses screw terminals for secure wire attachment.
Yes, it complies with RoHS standards, ensuring environmentally friendly materials.
The orientation of this terminal block is straight, facilitating easy integration.
The country of origin for this terminal block is Germany.
It is suitable for use in industrial control, automation, electronic instrumentation, and power distribution systems.
