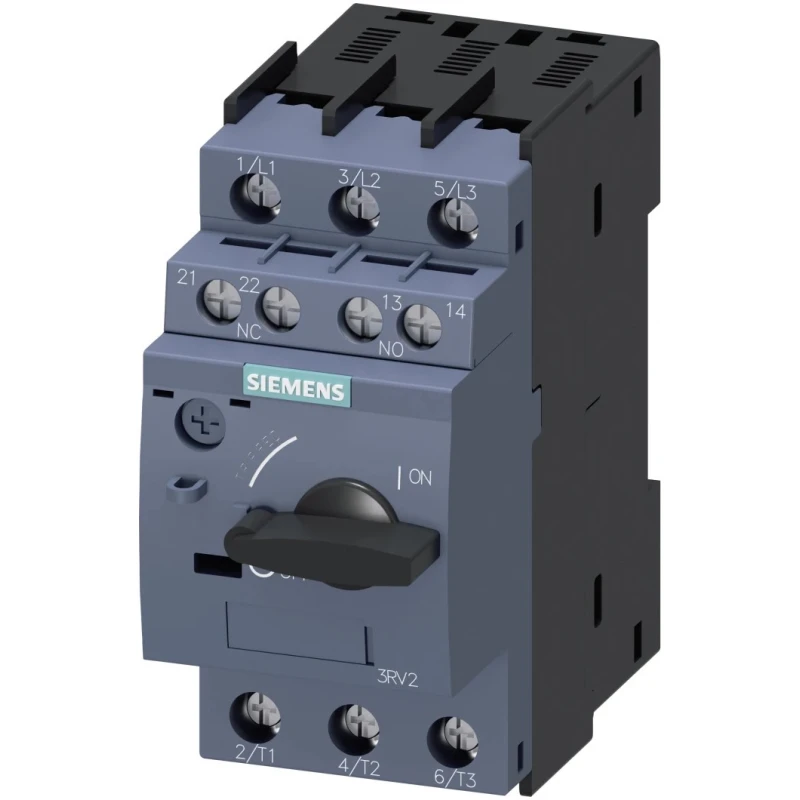

Siemens Motor Protection Circuit Breaker 550mA, 800 mA, 690V, IP20, Magnetic Sensing, 3 Poles 3RV2011-0HA15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV2011-0HA15 |
| IP Rating | IP20 |
| Approvals | CE / UL / CSA |
| Overall Length | 45mm |
| Current Rating | 550, 800mA |
| Series | 3RV2 |
| Overall Width | 96.9mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | ABS, ATEX, CCC, CE, CSA, EAC, LRS, RoHS, UKCA, UL, VDE |
| Overall Depth | 97mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Designed for motor protection with 3 poles to ensure comprehensive circuit monitoring.
- Compact dimensions with overall length 45mm, width 96.9mm, and depth 97mm.
- Operates effectively in temperature ranges from -20°C to 60°C.
- IP20 rating offers basic protection against solid objects and limited ingress of moisture.
- Complies with international standards including CE, UL, CSA, VDE, RoHS, and ATEX.
- Magnetic sensing ensures swift detection of motor electrical faults.
- Extended product life with low carbon manufacturing processes under Siemens Better World initiative.
- Impulse voltage resistance up to 6 kV and standard switching capacity for reliable performance.
Product Description
Siemens 3RV2011-0HA15 Motor Protection Circuit Breaker is engineered for advanced motor circuit protection, supporting reliable operation in industrial environments with a supply voltage of 690V. Featuring a compact design with dimensions 45mm length, 96.9mm width, and 97mm depth, this device operates efficiently within a temperature range of -20°C to 60°C.
This unit incorporates magnetic sensing technology to promptly detect overloads and electrical faults, safeguarding motor operation and minimizing downtime. Certified to global safety and performance standards, including CE, UL, CSA, VDE, and ATEX, it is suitable for diverse applications in manufacturing, automation, HVAC, and electrical motor control systems.
The breaker includes three poles and an IP20 rated enclosure providing protection against solid foreign objects and limited moisture ingress. Its impulse voltage resistance up to 6 kV ensures resilience against electrical surges. The product supports easy installation with screw connections and spring clamps for secure and reliable wiring.
Siemens' Better World initiative recognizes this product for extended life and environmentally responsible manufacturing with low carbon footprint. It is manufactured in Germany, ensuring high quality and precision engineering.
Reliable motor circuit breaker with three poles for comprehensive protection. Magnetic sensing technology enhances fault detection accuracy. Wide operating temperature range from -20°C to 60°C for versatile environments.
Complies with various global standards for assured safety and quality. Compact size enables easy integration into control panels. IP20 rating suits industrial indoor applications. Impulse voltage resistance up to 6 kV ensures surge protection.
Easy installation with screw and spring clamp connections. Better World product promoting sustainability and extended durability. Ideal for industrial, laboratory, manufacturing, and HVAC motor protection applications. For more Siemens motor protection and circuit breakers explore the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has current ratings of 550 mA and 800 mA.
It operates at a supply voltage of 690V.
The unit has an IP20 rating, providing basic protection against solid objects and limited moisture ingress.
The overall dimensions are 45 mm in length, 96.9 mm in width, and 97 mm in depth.
It operates effectively within a temperature range of -20°C to 60°C.
This model utilizes magnetic sensing technology for detecting overloads and electrical faults.
It complies with several international standards including CE, UL, CSA, VDE, and RoHS.
This unit features three poles for comprehensive motor protection.
It has an impulse voltage resistance of up to 6 kV.
It is manufactured in Germany.
The product is recognized for extended product life and low carbon manufacturing processes under Siemens' Better World initiative.
It supports easy installation with screw connections and spring clamps for secure wiring.
